• Model NO.：BPT-02
• Specimen Size：75mm X 75mm
• Trademark：Pubtester
• Origin：Shandong, China
• Production Capacity：30 Sets,Quarter

Basic Info.

Model NO. BPT-02 Specimen Size 75mm X 75mm Trademark Pubtester Origin Shandong, China Production Capacity 30 Sets/Quarter

Product Description

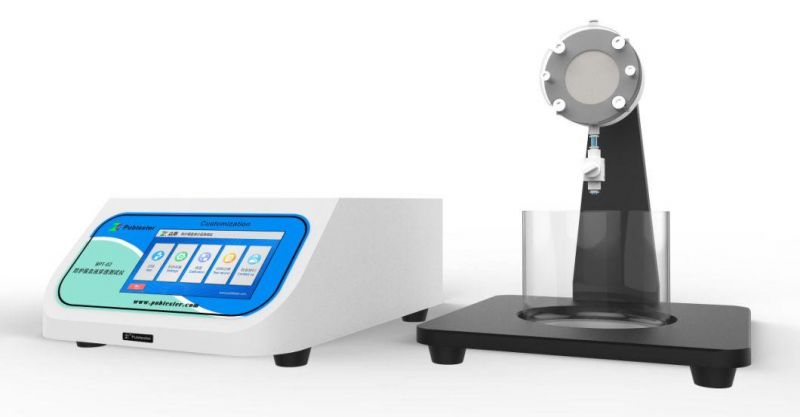

BPT-02 ISO 16603 protective clothing synthetic blood permeability tester  - splash
BPT-02 ISO 16603 protective clothing synthetic blood permeability tester  - splash is used to measure the penetration performance of synthetic blood and other liquid-derived liquids to evaluate its safety protection performance. It's Mainly used to test the penetration resistance of protective clothing to blood, body fluids, blood pathogens (tested with Phi-X 174 antibiotic), synthetic blood and other liquids. It is also suitable for the liquid penetration resistance of protective equipment such as gloves, protective clothing, outer covers, coveralls, boots, etc.



Technical Features

• 7 inch color HD touch screen for easy use
• Uses an air source that can provide (20±1) kPa air pressure to continuously pressurize the sample without being restricted by the space of the test site
• Using high-precision pressure sensor, the test result is more accurate
• Use pressurized medium: compressed air
• The special stainless steel penetrating test tank guarantees a firm grip on the sample and prevents synthetic blood from splashing around
• Square metal blocking net: open space ≥50%; bending ≤5mm under 14kPa.
• The test time will be accurately displayed on the screen
• Equipped with a clamp that can generate 13.5N·m torque.
• Equipped with micro-printer for printing test results in real time

Test Principle
The protective clothing material is tested with synthetic blood under continuous pressure, and the penetration of synthetic blood on the material is visually inspected.

Applications

Basic Application

Protective Clothing

Suitable for testing synthetic blood penetration of daily work clothes, surgical gowns, isolation gowns and protective clothing

Technical Specifications

Specifications	BPT-02
Press Range	0~0.04MPa
Accuracy	±1kPa
Blocking Screen Opening Rate	>50%
Clamp Torque	13.5N.m
Specimen Size	75mm×75mm
Pressure Area	28.26 cm²
Pressure Point	1.75kPa, 3.5kPa, 7kPa, 14kPa, 20kPa
Power Supply	AC 220V 50Hz
Net Weight	50 kg

Standards
ASTM F 1670, ASTM F 1671, ISO 16603:2004, GB19082, YY/T 0700

FAQ

Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
