20A DC Resistance Tester for Transformer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Phase：Single & Three Phase
  • Max. Test Current：Single Phase: 1A, 5A, 10A, 20A, 20athree Phase: 1
  • Resolution：1μ&Omega
  • Max. Error：0.2%Rdg+2D
  • Voltage Output：20V
  • Power Supply：AC220V±10%% 50Hz,60Hz

Base Info

  • Model NO.：GDZC
  • Working Environment：-10ºC-+40ºC Rh≤85%
  • Delivery Time：7 Days
  • MOQ：1 Set
  • Certificate：ISO 9001
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • HS Code：9030849000
  • Production Capacity：200 Sets , Month

Description

Resolution1μΩMax. Error0.2%RDG+2DVoltage Output20VPower SupplyAC220V±10%% 50Hz/60HzWorking Environment-10ºC-+40ºC RH≤85%



Parameter

ItemTest CurrentMeasuring RangeGDZC-22A1μΩ~4.5kohmGDZC-1010A1μΩ~20ohmGDZC-2020A1μΩ~10ohmGDZC-4040A1μΩ~10ohmGDZC-10025A, 50A, 100A200μΩ-800 mΩ(25A)
100μΩ-400 mΩ(50A)
50μΩ-200mΩ(100A)GDZC-20S

Single phase:

1A,5A,10A,20A, 40A




Three phase:

1A, 5A, 10A, 20A

Single phase:
10mΩ~20Ω(1A)
1mΩ~4Ω(5A)
1mΩ~2Ω(10A)
1mΩ~1Ω(20A)
1mΩ~0.5Ω(40A)
Three-phase:
10mΩ~6Ω(1A, each phase)
1mΩ~1Ω(5A, each phase)
1mΩ~0.6Ω(10A, each phase)
1mΩ~0.3Ω(20A, each phase)

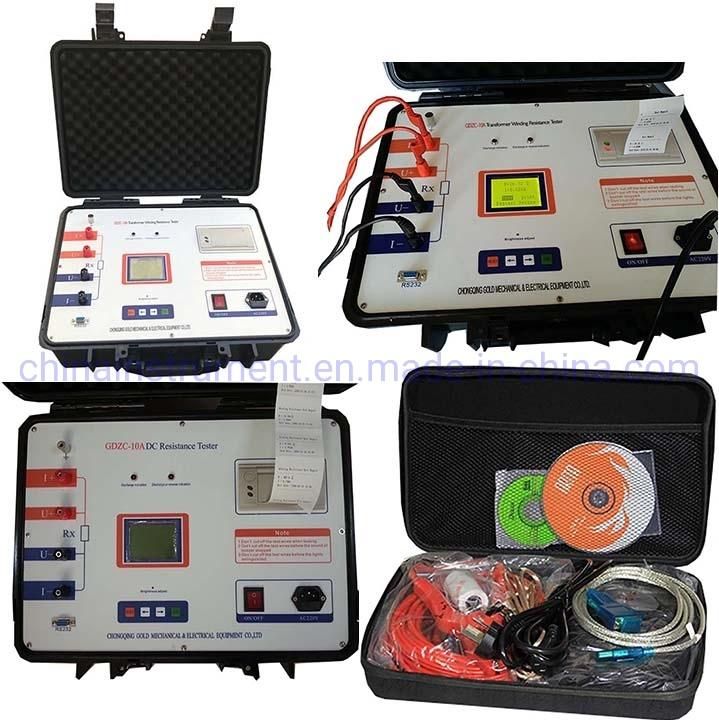

20A DC Resistance Tester for Transformer
FAQ
  • What's the delivery lead time?

"For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."

  • What's the payment term?

"For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."

  • What's the warranty period?

"Warranty period is 1 year"
