Insulating Oil Tangent Delta Test Equipment Dielectric Loss Resistivity Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Manual/Auto.：Fully-Automatic
  • AC High Voltage Output：400V-2200V ±2% Every 100V 50va
  • DC High Voltage Output：0V-2200V ±2%
  • Temperature Control Range：<100ºC
  • Temperature Measuring Error：±0.5ºC
  • Control Temperature Error：0.1ºC

Base Info

  • Model NO.：GDGY
  • Control Temperature Time：Room Temperature 90ºC <20min
  • Temperature Control Induction Stove：Maximal Power 500W
  • Relative Dielectric Loss Constant：-5ºC~+40ºC, Rh<80%
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • HS Code：9030849000
  • Production Capacity：1000 Sets , Month

Description

Item NameGDGY Automatic Transformer Oil Tan Delta TesterCondition of Use-5ºC-40ºC RH<80%Power SourceAC 220V±10% Without Frequency LimitAC High Voltage Output400V-2200V ±2% Every 100V 50VADC High Voltage Output00V-2200V ±2%Temperature Control Induction StoveMaximal Power 500WTemperature Control Range<100ºCTemperature Measuring Error±0.5ºCControl Temperature Error0.1ºCControl Temperature TimeRoom Temperature 90ºC <20minMeasuring Rangetgδ Without Limit
Cx 15PF-300PF
Rx 10M-10TResolutiontgδ 0.001%
Cx 0.01pF
Rx 0.01Precisiondelta tgδ:±(Reading*0.5%+0.020%)
delta Cx :±(Reading*0.5%+0.5PF)
delta Rx :±Reading * 10%Relative Dielectric Loss ConstantΕr Calculated AutomaticallyVolume Resistivityρ Calculated AutomaticallyDimension450(L)×310(W)×360(H)Net Weight21KG

Structure

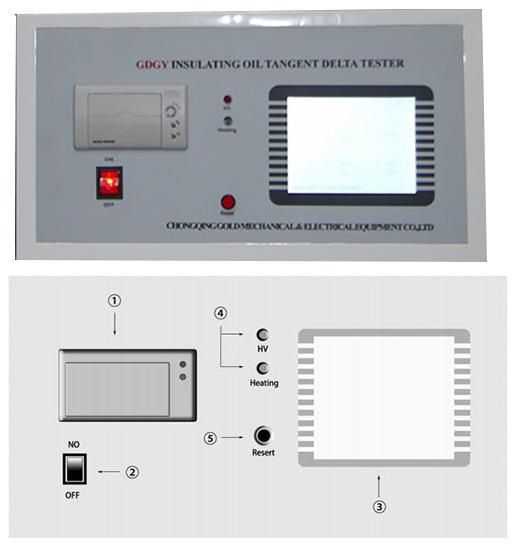

Main panel function area
Insulating Oil Tangent Delta Test Equipment Dielectric Loss Resistivity Tester

1. Small printer: print out test result.

2. Main switch: control input power.

3. Touch digital screen: main operation setting and testing area,(for detailed operation, please refer to Operation)

4. Status area

    a. High voltage light(red): light on means that the oil cup have high voltage power.

    b. Heating light (Green): Light on means heating; flashing means the temperature is almost the setting one;            and please pay attention to the high temperature of the oil cup even the light is off.

5.Resert: Initial all the operation.

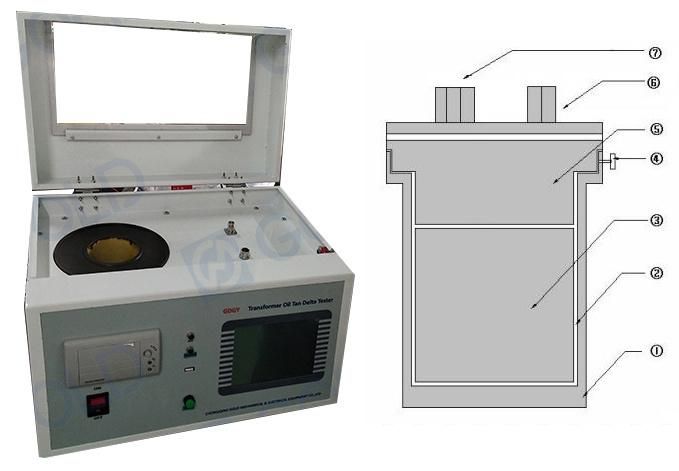

Oil Cup Specifications

Insulating Oil Tangent Delta Test Equipment Dielectric Loss Resistivity Tester


1.Oil Cup, High-voltage Terminal.

2.Oil Gap.

3.Inner Electrode, Testing Terminal.

4.Fix Knob of Inner Electrodes.

5.Inner Electrode, Measuring Shielding Terminal.

6.Testing Terminal.

7.Temperature Connector.
