Heavy Large Package Drop Impact Tester

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：200kg
  • Type：Heavy Large Package Drop Impact Tester
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load

Base Info

  • Model NO.：YZDT-2000
  • Loading Method：Static Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC380V
  • Oil Cylinder Position：N,a
  • Max. Load：200kg
  • Max. Specimen Size：1200X1200X1200
  • Drop Height：0-2000mm
  • Test Way：Surface,Edge,Angle
  • Control Type：PLC Control
  • Machine Size：1400X2100X3250mm
  • Impact Board Size：1400X2100X60mm
  • Machine Weight：About 800kg
  • Application：Large Package Drop Test
  • Power Supply：AC 3 Phase 380V 50Hz
  • Transport Package：Plywood Case

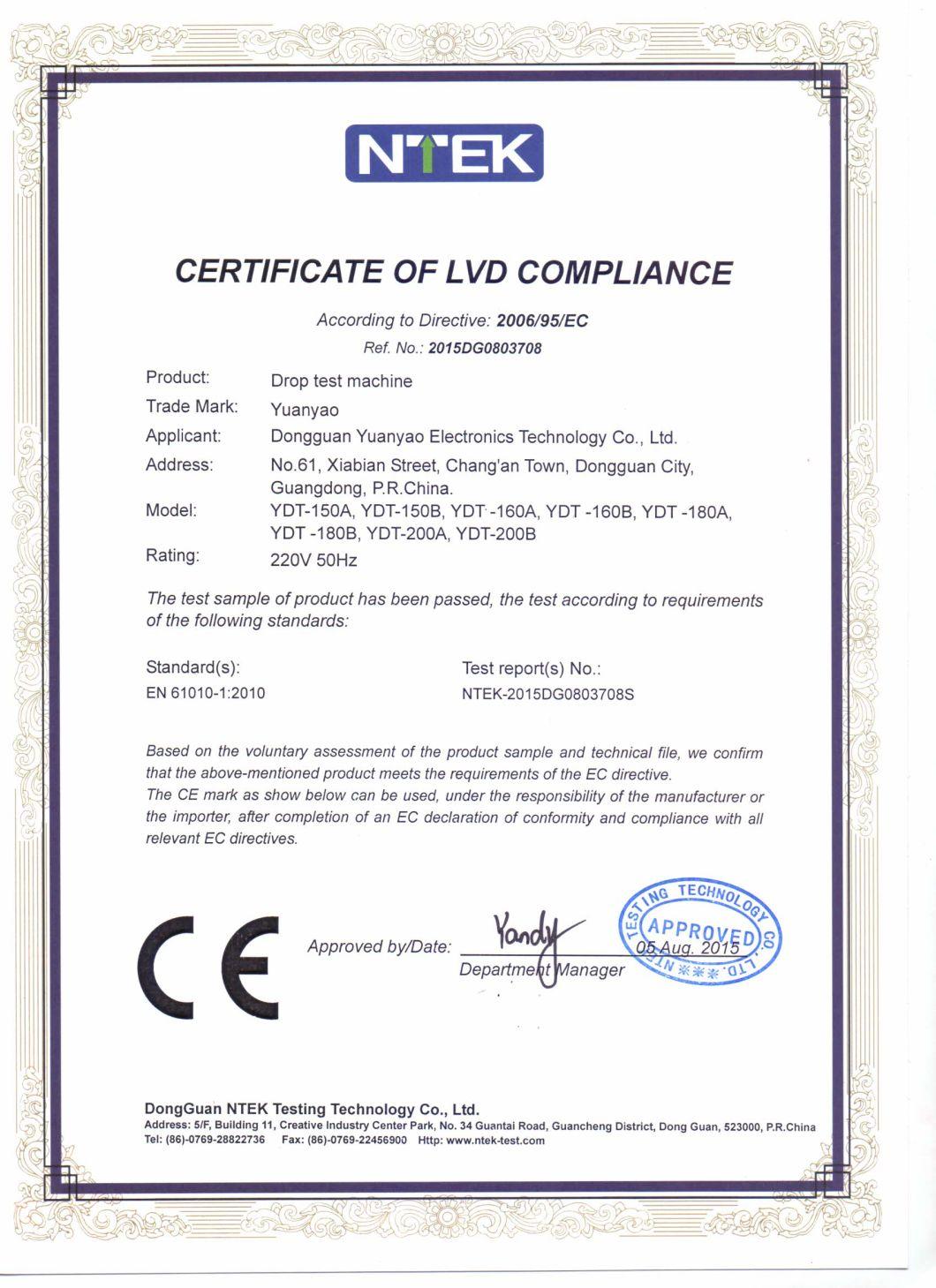

  • Specification：CE, TUV, SGS Certificate
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：90318090
  • Production Capacity：100sets,Month

Description

Basic Info.

Model NO. YZDT-2000 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC380V Oil Cylinder Position N/a Max. Load 200kg Max. Specimen Size 1200X1200X1200 Drop Height 0-2000mm Test Way Surface,Edge,Angle Control Type PLC Control Machine Size 1400X2100X3250mm Impact Board Size 1400X2100X60mm Machine Weight About 800kg Application Large Package Drop Test Power Supply AC 3 Phase 380V 50Hz Transport Package Plywood Case Specification CE, TUV, SGS Certificate Trademark Yuanyao Origin China HS Code 90318090 Production Capacity 100sets/Month

Product Description

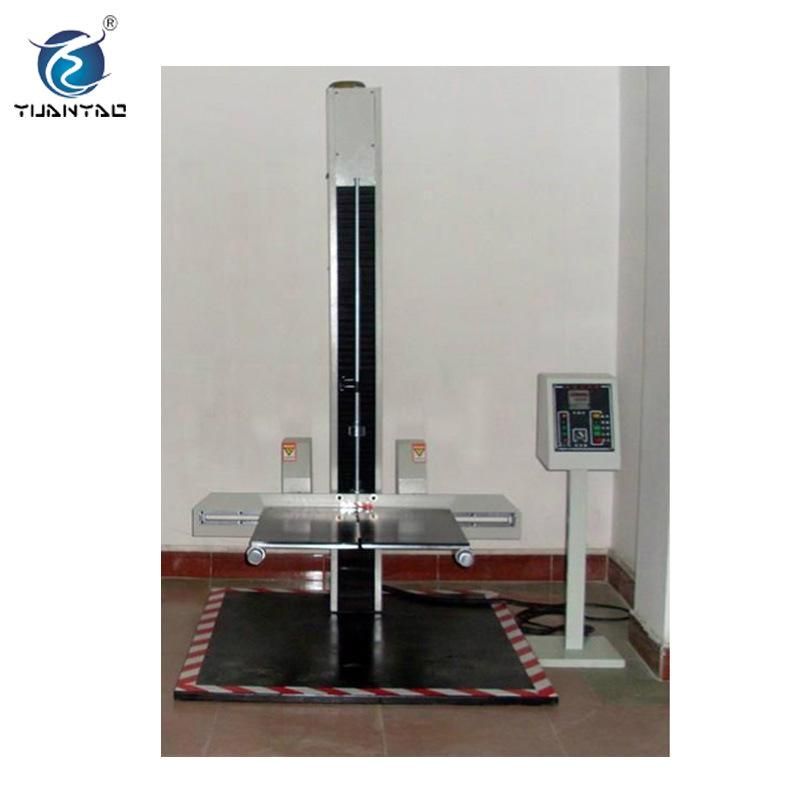

Heavy Large Package Drop Impact Tester

Introduction and application:

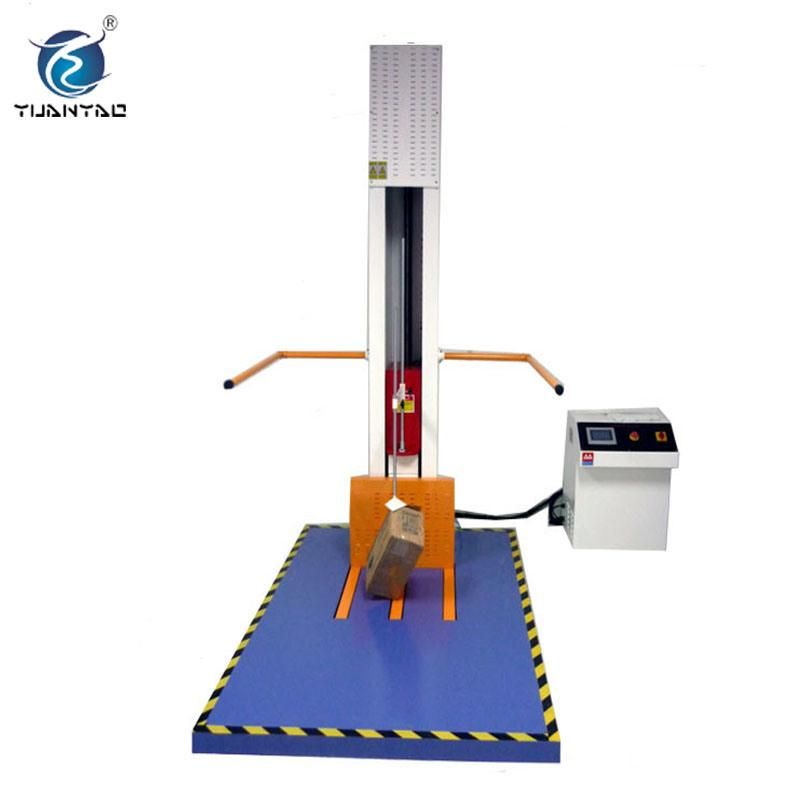

Heavy Large Package Drop impact tester is mainly used for larger package drop test. A quickly moving down "E" type fork as specimen bracket, the specimen is placed balance as the test requirement(surface, edge, angle test). It is used in the assessment of the product package in the process of transportation, loading and unloading fall ability, then improve the product's package design.
Heavy Large Package Drop Impact Tester

Features:

1Double column guide, hydraulic buffer.
2Drop height is retaining ring setting, can realize the edge, surface, angle drop test.
3Plate board type double guide rail test bed,electric lift system.
4It is for a large package dimension drop test.
Heavy Large Package Drop Impact Tester

Specification

1. Product name: zero drop tester
2. Model: YZDT-2000
3. Max. Load: 100KG
4. Test height: 0-2000mm(15"~72")
5. Max. specimen dimension: 1200Wx1200Hx1200D mm
6. Machine dimension: 1400Lx2100Wx3240H mm
7. Impact board dimension: 1400Lx2100Wx60H mm
8. Test way: surface, edge, angle.
9. Weight: about 800KG
10. Power supply: AC 3 phase 380V 50Hz
Heavy Large Package Drop Impact Tester
Heavy Large Package Drop Impact Tester
Heavy Large Package Drop Impact Tester

Any be interested, please direct contact MS Alice for help, I will be here waiting for you!

Many thanks for your attention!
