• Model NO.：SKZ101
• Response Time：5 Seconds
• Power：Electronic
• Power Supply：400W
• Application：Tensile Strength Test
• Net Weight：110kg
• Dimension：410*430*1550mm
• Trademark：SKZ
• Origin：China
• HS Code：9024800000
• Production Capacity：1000

Basic Info.

Model NO. SKZ101 Response Time 5 Seconds Power Electronic Power Supply 400W Application Tensile Strength Test Net Weight 110kg Dimension 410*430*1550mm Trademark SKZ Origin China HS Code 9024800000 Production Capacity 1000

Product Description

SKZ101 Stroke 400mm Printer Built In 1n-500n Tensile Paper Lab Equipment Electronic Automatic Tensile Material Testing Machine

It is used to test the Tensile strength test of paper and board, It adopts precise auto control and data acquisition system.

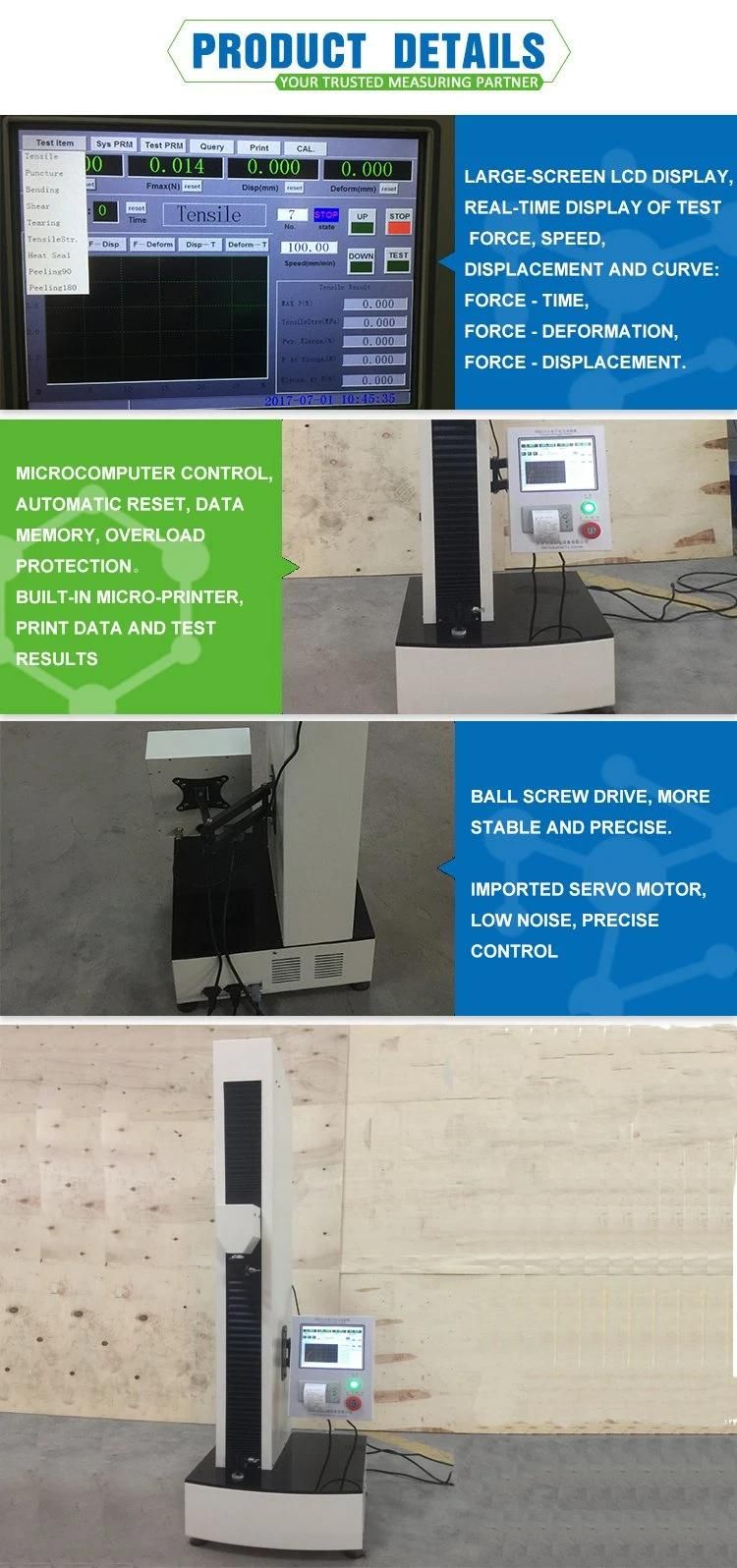

Feature
1) Color touch screen display.
2)The test force can be adjusted in a wide range, stable and effectively.
3) Display test force, test speed and displacement at real time.
4) It can automatically return to the original position after test.
5) With limit position protection, over load protection and over current protect.
6). Equipped with mini printer, test report can be printed out

Technical parameter

Max test force	500N
Precision of the equipment	1%
Measuring range	1N-500N
Relative error of indicating value	1%
Resolution of test force	1/200000
Min reading value of deformation	0.01mm
Speed range	1-500mm/min
Stroke of crossbeam	400mm
Loading mode	Electrically
Control mode	Micro-computer
Voltage (should connect to the ground)	440V, 3 phase
Power	400W
Dimension of main machine	410X430X1550mm
Weight	110kg
