ASTM Ring and Ball Softening Point Test Apparatus

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：ASTM Ring and Ball Softening Point Test Apparatus
  • Standard：ASTM D36
  • Features：Automatic
  • Measurement Range：32~160 Celsius
  • Measurement Resolution：0.01 Celsius
  • Heating Rate：5 Celsius Automatically After Three Minutes

Base Info

  • Model NO.：GD-2806G
  • Sample Quantity：2
  • PC Port：Yes
  • Printing：Yes
  • Transport Package：Wooden Case for Automatic Ring and Ball Sofening P
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：100 Sets, Month

Description

13
 Measurement rangeHeating medium: distilled water 20 ºC~90ºC(softening point <=80 ºC)Heating medium: glycerin 70ºC~160ºC(softening point >80 ºC)4Heating rateit will be adjusted to 5.0±0.5 ºC/ min automatically after three minutes5Heating power600 W6Stirrerthe electromagnetic stirring speed can be adjusted continuously, the stirring speed is (0~300) r/min7Cubage of beaker1000 ml8Test resultLCD screen shows results and printer to print9Computer communication interfaceRS-232C communication interface10Ambient temperature15ºC~35ºC11Relative humidity≤85%12Total power consumption<700 W13Dimension400mm×300mm×250mm

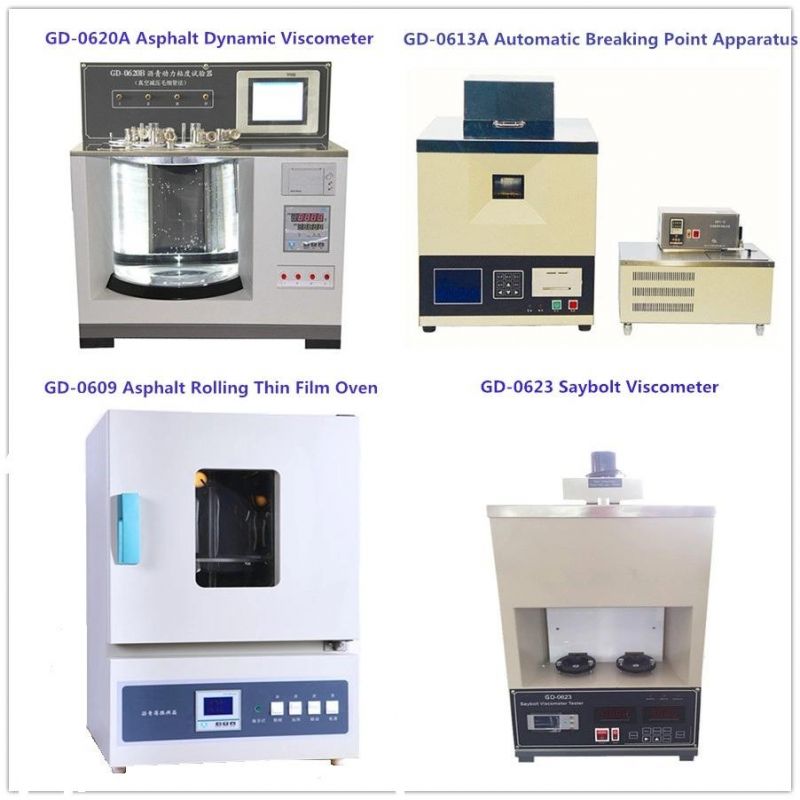

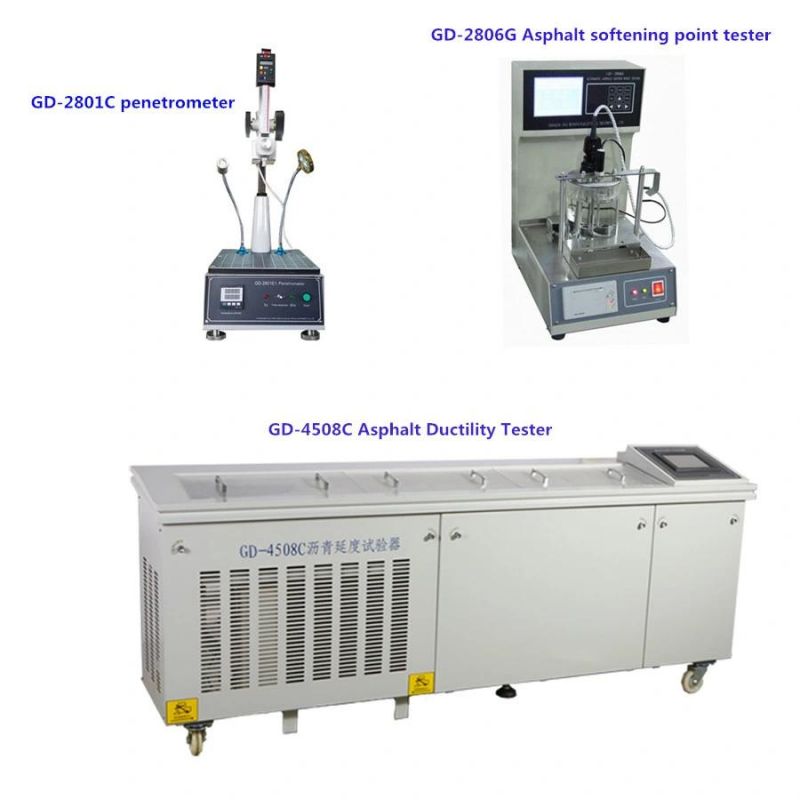

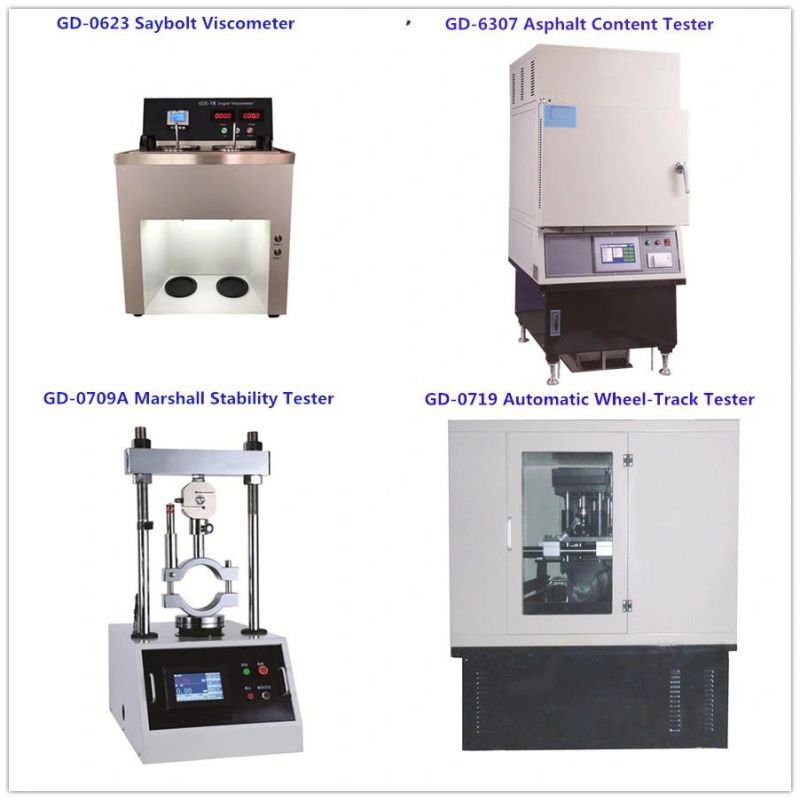

Other Asphalt Testing Instrument:
ASTM Ring and Ball Softening Point Test Apparatus
ASTM Ring and Ball Softening Point Test Apparatus
ASTM Ring and Ball Softening Point Test Apparatus

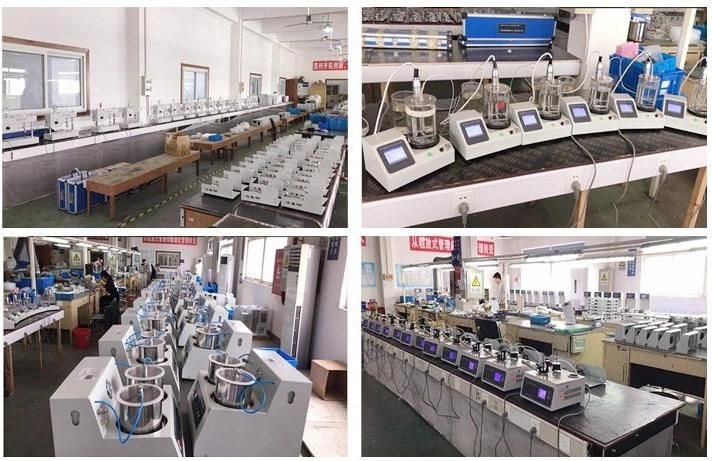

About us:Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
ASTM Ring and Ball Softening Point Test ApparatusASTM Ring and Ball Softening Point Test Apparatus

Notes:
1,The reagent and equipments for installing the instrument are supplied by end-users themselves.
2,The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
3,PLS read the operation manual and industry standard before using the instrument.
