• Model NO.：GD-7305
• Timing Set：Dial Control
• Stirring Rate：1500 R,Min
• Transport Package：Wooden Case for Water Separability Tester
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-7305 Timing Set Dial Control Stirring Rate 1500 R/Min Transport Package Wooden Case for Water Separability Tester Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

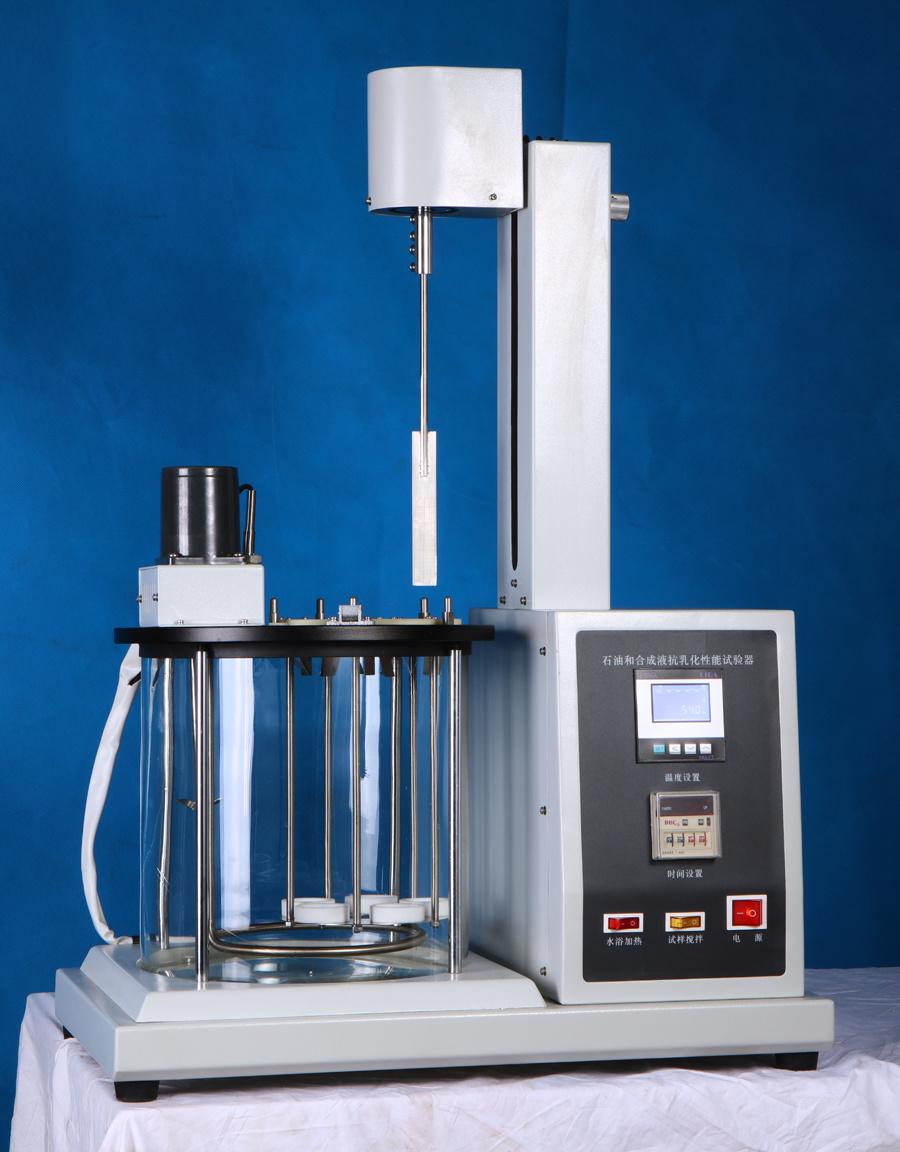

Water Separability or Demulsibility Test Apparatus ASTM D1401


Our instrument demulsibility test apparatus is designed and made as per ASTM D1401. It is covers measurement of the ability of petroleum oils or synthetic fluids to separate from water.



I . Summary

Model name and number	Standard	Test sample	Application
GD-7305 demulsibility test apparatus	ASTM D1401	Petroleum Oils and Synthetic Fluids	petroleum, electricity, chemical industry , colleges and scientific research institutions.

II. Main technical features
1. demulsibility test apparatus adopts small bath and desktop structure. It is easy to operate and good-looking.

2. It adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.

3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.


III. Main technical specifications
1. Power supply:   AC(220±10%)V, 50Hz
2. Temperature range:   (Room temp.∼99.9)ºC
3. Temperature control accuracy:   ±1ºC
4. Resolution:   0.1ºC
5. Temperature display:   Digital
6. Timing range:    1s∼9m 59s
7. Timing set:      Dial control
8. Time display:    Digital
9. Stirring rate:     (1500±15)r/min
10.Heating power:   1000W
11.Ambient temperature:    (Room temp.∼35)ºC
12.Relative humidity:     ≤85%
13.Maximum Power consumption:    1200W
14.Dimension:     500mm×340mm×720mm
Note: If the required temperature is lower than room temperature,it can equip ZL-1 portable cooler manufactured by our company.



IV. Main structure



V.About us:

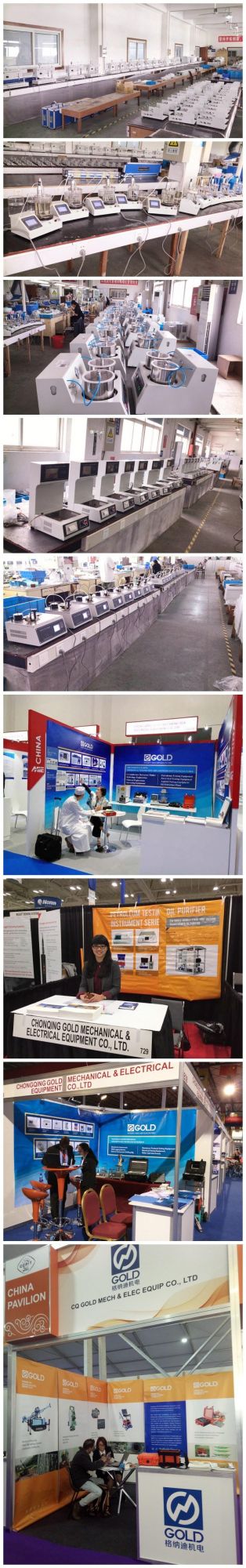

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
