• Model NO.：MH-II
• Counter：4 Bit
• Steel Ball：405~450g
• Transport Package：Wooden Case for Los Angeles Abrasion Testing Machi
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. MH-II Counter 4 Bit Steel Ball 405~450g Transport Package Wooden Case for Los Angeles Abrasion Testing Machi Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

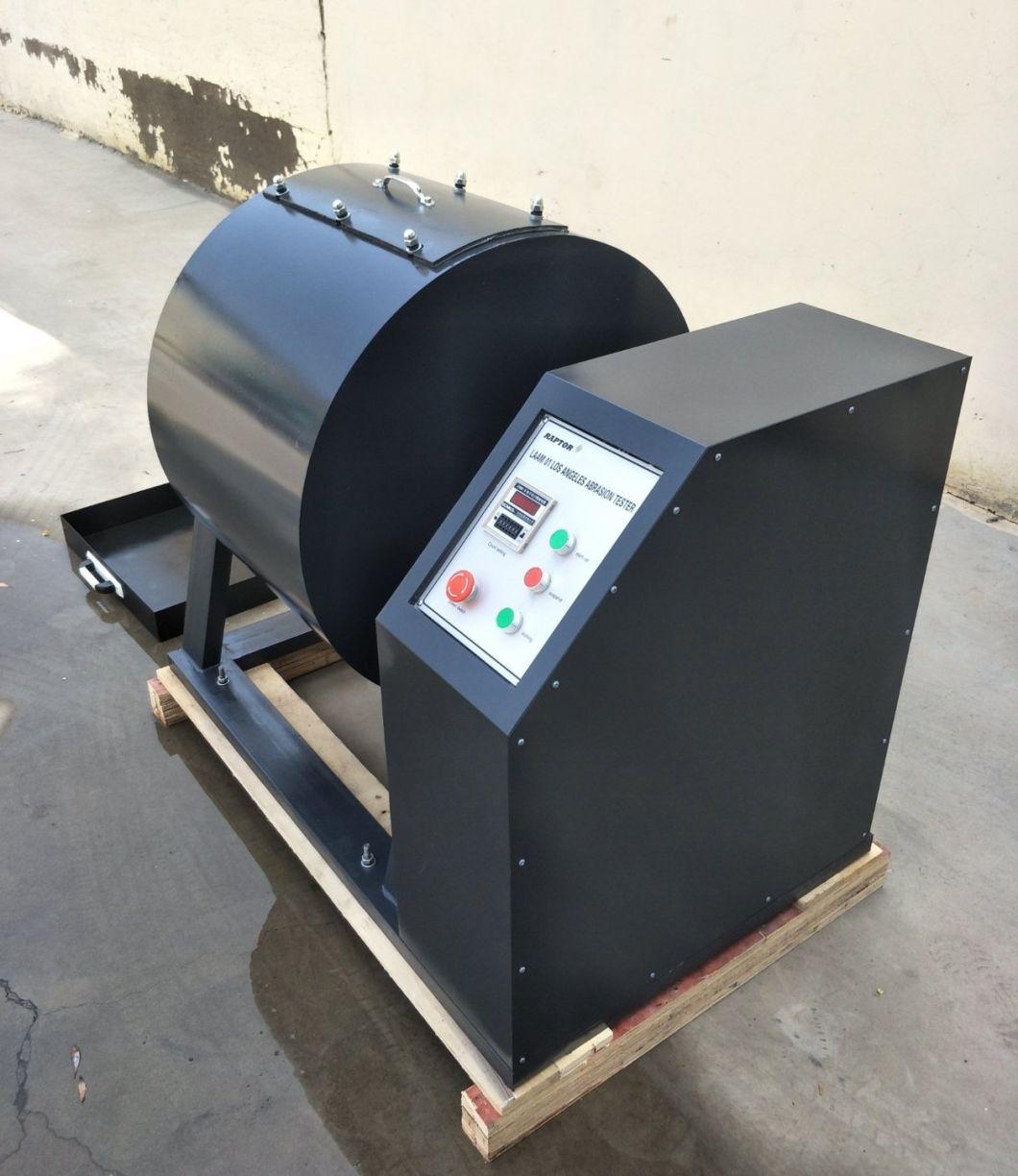

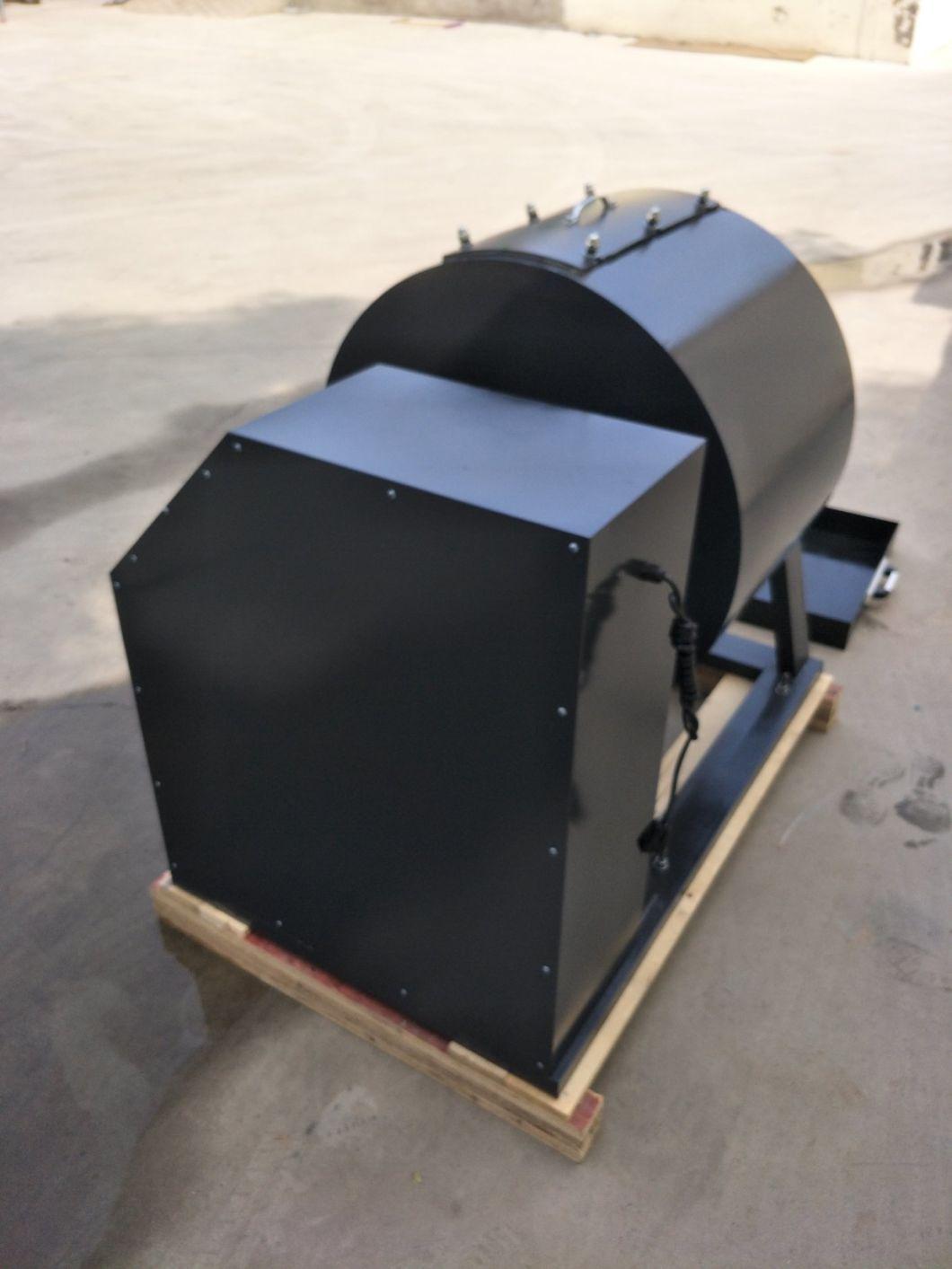

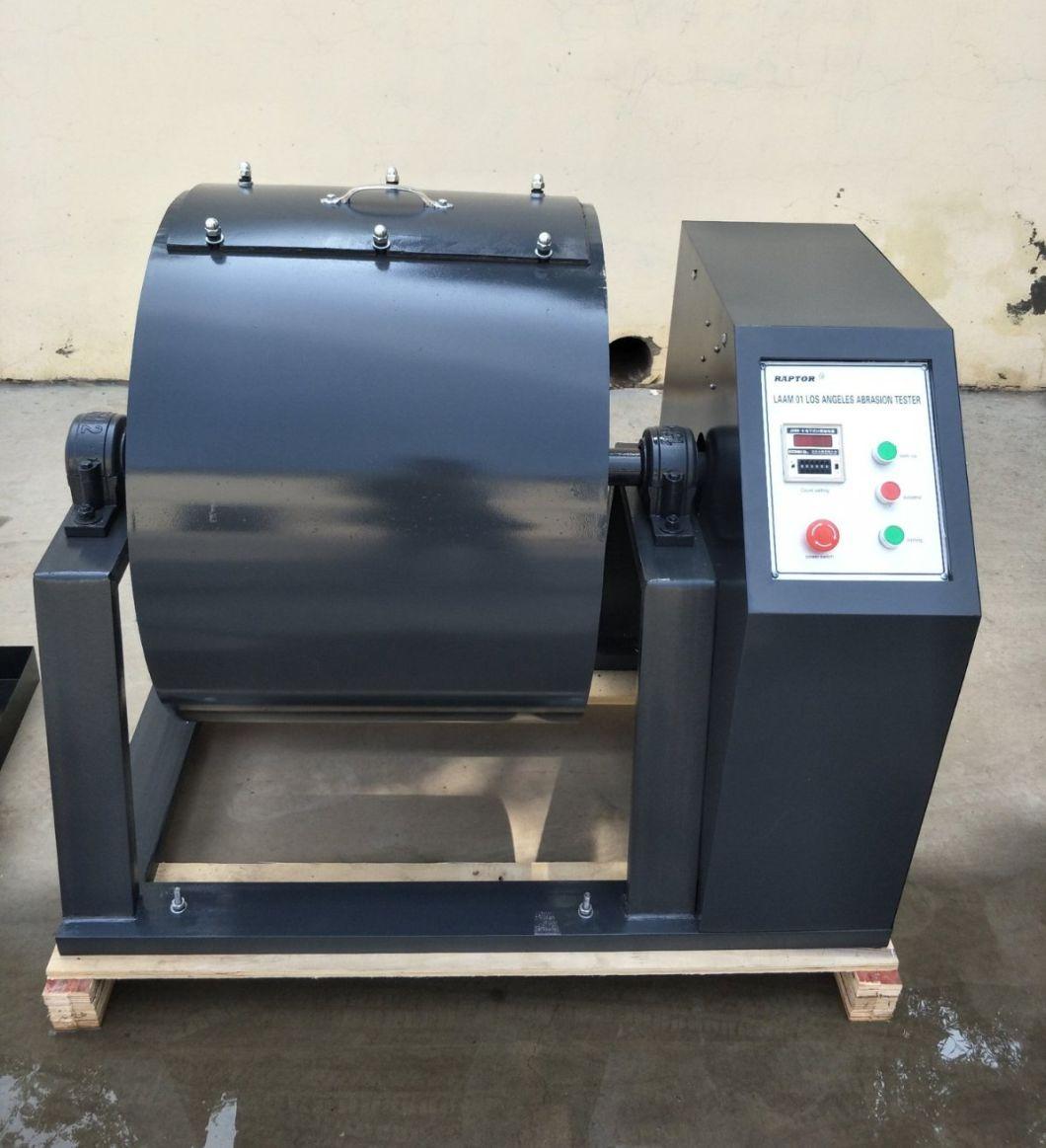

ASTM los Angeles Abrasion Testing Machine of Aggregate



1. Purpose:
This machine is mainly used to measure the abrasion rate of stone.


2. Structure:
The machine is mainly composed of cylinder, sealing cover, bracket, mandrel, gearbox, motor, counter and other components.
Electrical controlling system has the functions of starting, inching controlling, stopping and timing.


3. Main technical parameters:
1). Equipment standard: ASTM C-1311, C-535
2). Speed: 30~33RPM
3). Counter: 4bit
4). Steel ball quality: 405~450g
5). Power supply: three-phase to four-wire
6). Power: 3phase 1.1KW
7). Inner diameter: Φ710±5mm
8). Inner length: 510±5mm


4. Our Company:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.

5. Our Certificate:
