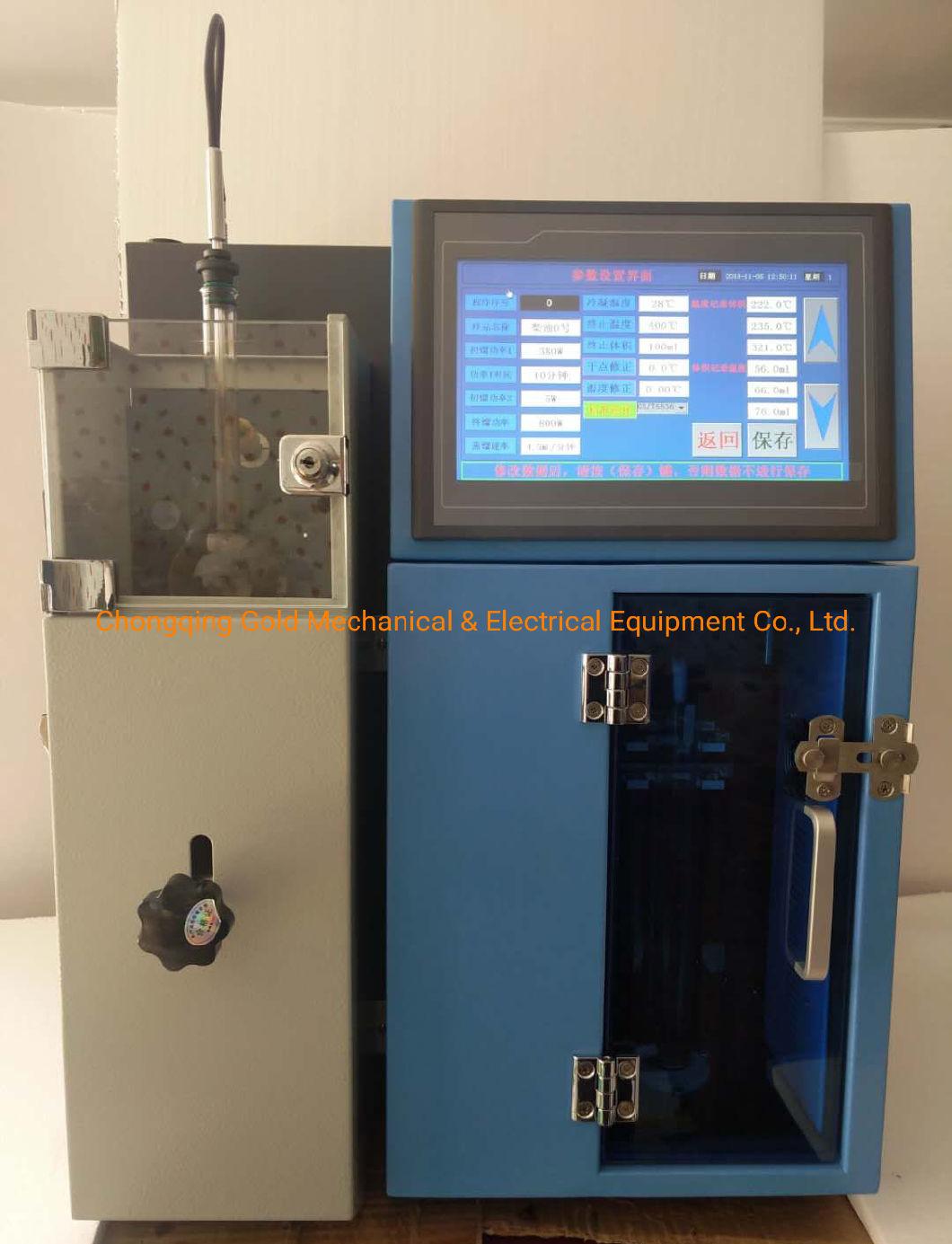

• Model NO.：GD-86
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

Power:

  AC220V±10% 50Hz

Heating power:

 2KW

Cooling power:

 0.5KW

Steam temperature:

 0-400ºC

Oven temperature:

 0-500ºC

Refrigeration temperature:

 0-60ºC

Refrigeration accuracy:

 ±1ºC

Temperature measurement accuracy:

 ±0.1ºC

Volume accuracy:

 ±0.1ml

Fire alarm:

 extinguish by nitrogen (prepared by customer)

Sample state: .

suitable for natural gasoline (stable light hydrocarbon),

motor gasoline, aviation gasoline,

jet fuel, special boiling point solvent, naphtha, mineral spirits,

kerosene, diesel fuel, gas oil, distillate fuels



• Features:

1. Built-in microcomputer. Advanced IPC technology. 12.1 inch light-touch LCD. Man-machine dialog. Easy to operate.

2. Intelligent SCM control. The heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control,

temperature recording, printing are all completed automatically.

3. It displays the vapor temperature curve, heater temperature curve and distillation rate curve in real time. Operator can judge

whether the indications can meet the standards' requirements or not in real time.

4. Imported compressor and temperature sensor. Automatic liquid level tracking system. The test result are reliable and

in good repeatability.

5. The suitable standards and distillation procedures can be added as per customer's need and different oil samples.

6. It has an automatic barometric pressure detecting function. The barometric correction can be completed automatically.

The test result will not be influenced by the  barometric pressure difference.

7. It can calculate the vapor temperature by inputting the residue amount after the test.

8. There is anti-freezing solution in the cold bath. A circulation stirrer is equipped inside. The liquid level sensor and overflow

pipe will make the water leve in the bath normally.

9. It equips an automatic fire-extinguishing device to make the test safe.

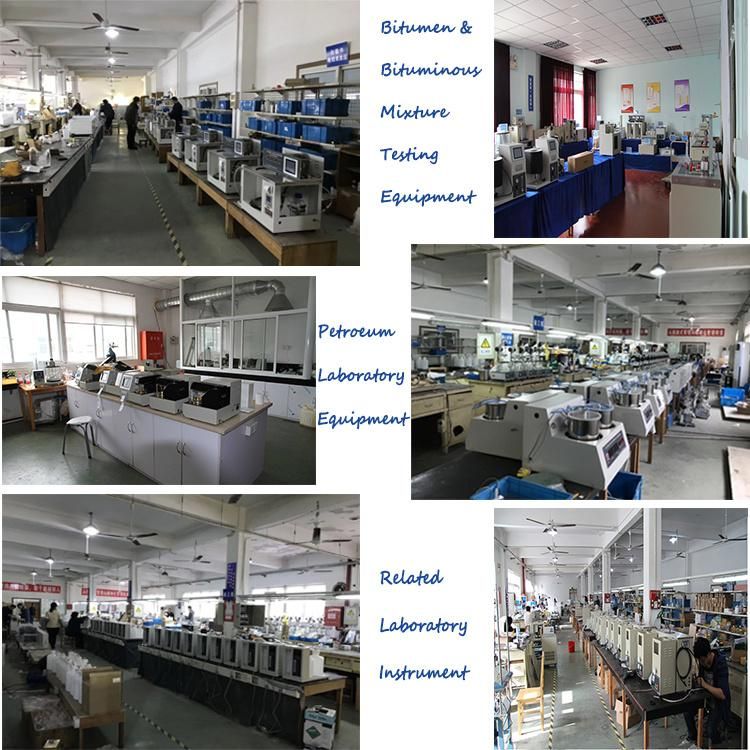

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer
