• Model NO.：GD-4294C
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

(1) Measuring range: 20ppm to 5%(2) Repeatability (r): <0.02894 (X+0.1691)(3) Reproducibility (R): <0.1215(X+0.5555)(4) Detection limit: 7 ppm(5) Oil sample quantity: 2.5 ml (it is equal to a sample depth of 4.5 mm)(6) Measurement time:

it can preset 60, 120, 240, 300, and 600 s

at random

(7) It can make measurement automatically

for single sample. Repeat times:

can set 2, 3, 5, 10, and 50 at random it will show

the average value and standard deviation at the end

 of measurement.

(8) Calibration curve numbers: it can save 9 calibration curves.

5 pieces of them are unary linear equation and

 4 pieces of them

are unary quadratic equations.

(9) Working condition:Ambient temperature: 5~40ºC
 Relative humidity: ≤85% (30 ºC)(10) Power supply: AC 220V±20V, 50 Hz; Rated power: 30 W(11) Dimension and weight: 468mm×368mm×136mm; 13 kg





II. Main technical features
(1) With electrical, mechanical and microprocessor integration design, so it is compact and beautiful;

(2) It can determine various products and in a wide measurement range. It is rapid for analysis and it only needs a little standard sample.

(3) Adopts fluorescence intensity ratio analysis methods, it can make a correction to temperature and pressure automatically

and it can also make a correction to the ratio of carbon and hydrogen (C/H).

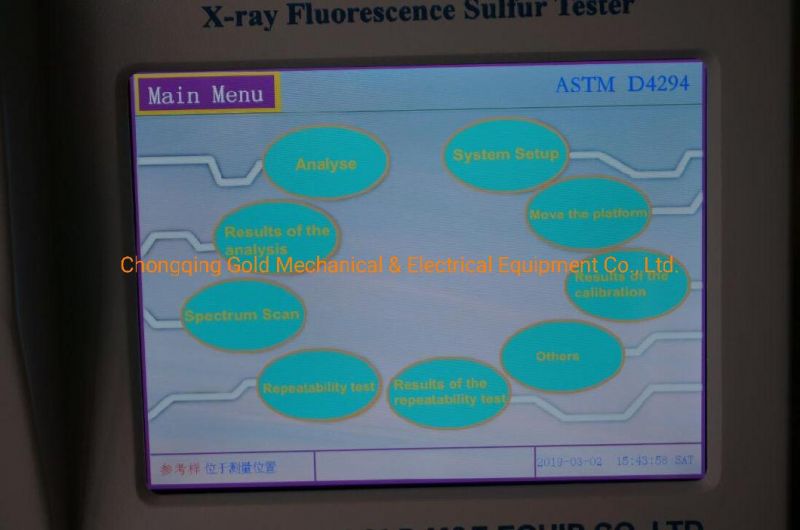

(4) Large LCD for display; Man-machine conversation system; Sound alarm for operation mistake;

(5) It has a self-diagnostic function, so it can determine its working state and electric parameters by making counting measurement

and energy spectrum measurement using reference samples.

(6) Equipped with an RS232 serial port, it can connect with any computer or web system.

(7) It takes a disposable sample cell with Mylar film, so it can avoid cross-contamination. The sample cell is made by a multifunctional pressure shaping device, so it is rapid and convenient. There is a hole on the sample cell cover and you can record sample serial

number, S% (m/m), and date on the sample cell cover.

(8) The sample holder is installed on a slide rail, so it can move out and move in automatically. It can move out from inside of the instrument for sample location and anti-leakage parts replacement. It is convenient and it can avoid any contamination to the detection system.

(9) It can save a large quantity of test data. You can browse test data and calibration curves at any time.

(10) It uses a thermal printer, so it is easy to replace printing paper.



• Sulfur Content Tester Selection List

Sulfur Content Tester Selection List



ItemGD-380B Sulfur Content Tester

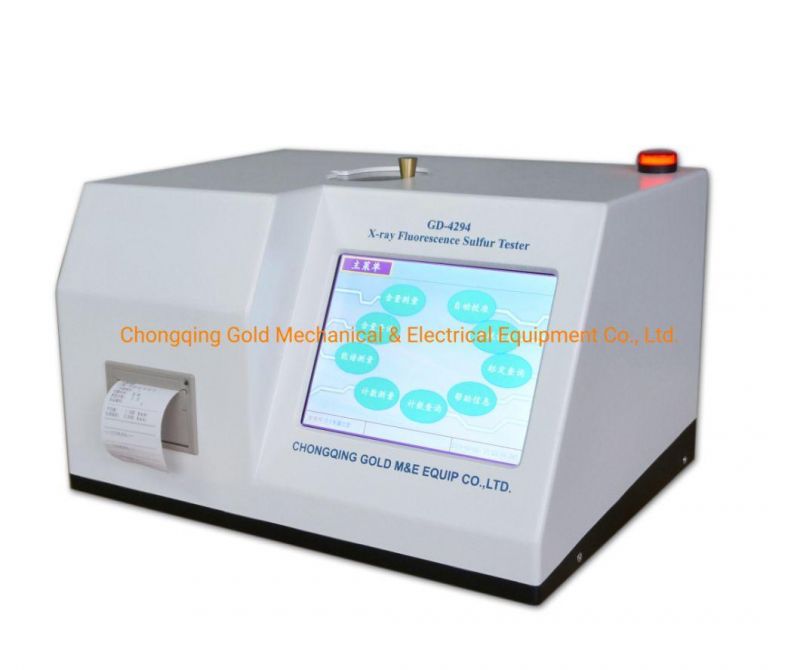

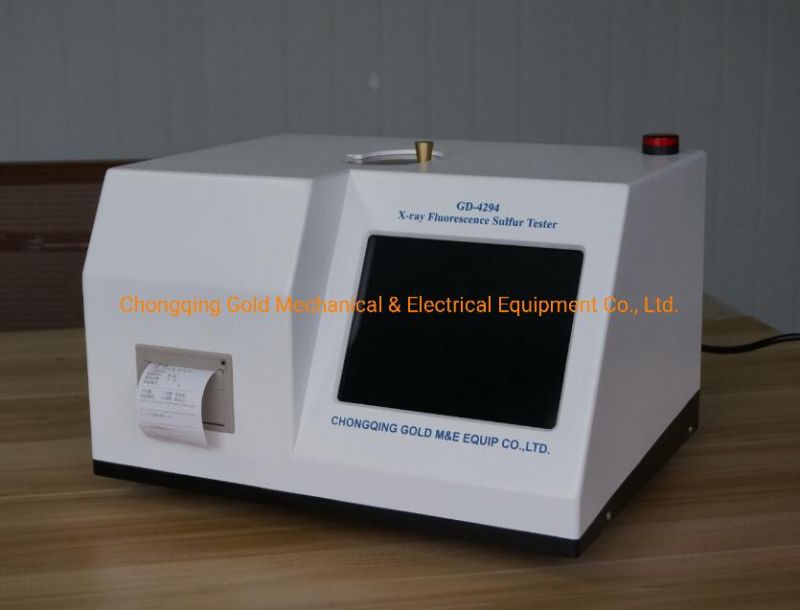

GD-4294C X-ray

Fluorescence

Sulfur-in-Oil Analyzer

GD-0689 Ultraviolet Fluorescence
Sulfur-in-Oil AnalyzerGD-0253A Coulometric Sulfur AnalyzerPicture    Standards

ASTM D1266

Lamp method

ASTM D4294

 X-ray Fluorescence (XRF)

ISO 20846,ASTM D5453,ASTM D4629,ASTM D5762,ASTM D6069

Ultraviolet Fluorescence method

ASTM D3120,

ASTM D3246

ApplicationUsed to determine the sulfur content in
light oils(such as gasoline, kerosene)
which the Reid vapor pressure is not
higher than 600mmHg

Used to detect diesel,naphtha, kerosene,

residual
oil, lubricant base oil, hydraulic oil,jet fuel,crude
oil,motor gasoline,and the sulfur content of other
distillate hydrocarbon.

Suitable to determine the total sulfur
content of liquid state hydrocarbon at
boiling range 25-400°C and the viscosity
0.2-10mm2/s at room temperature.Used
in total sulfur content range 1.0-
8000mg/kg naphtha,distillate oil,engine fuel
and other oilsSuitable to determine the light petroleum
products at the boiling range 40-310°C.The
sulfur content range 0.5-1000ppm.If above
1000ppm sulfur content sample, detecting it
after attenuation.Not used in more than 10
times sulfur content of halogen
content,more 10% total nitrogen
content,heavy metal content more than
500ppm sample

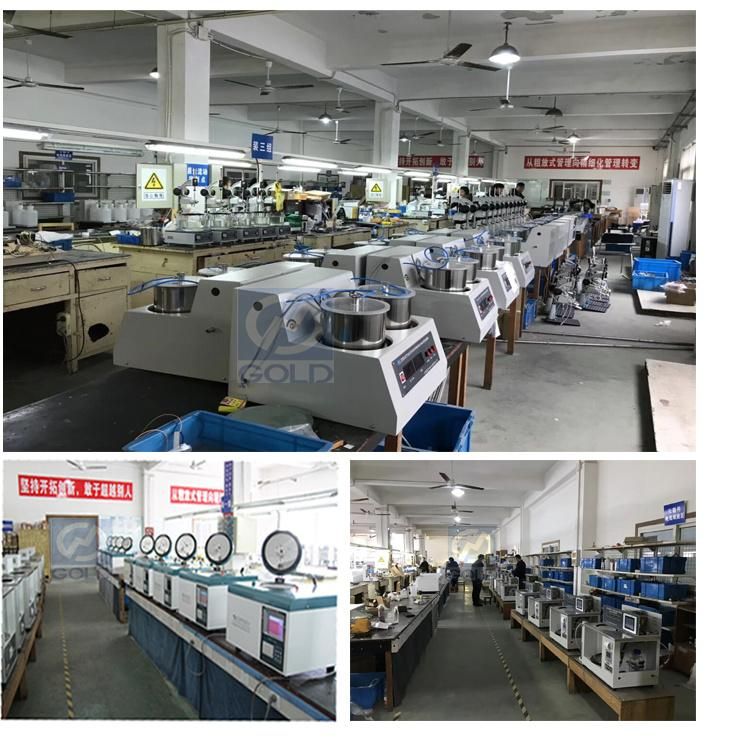

• Workshop
• *Over 10 years trading experience of Lab instruments
• *50 years experience in R&D and manufacturing Cast GOLD Brand
  *Passed ISO9001 international quality system certification
  *Mainly develop and produces analyzing instruments for petroleum Products and Asphalt
  analyzing equipment for Highway Engineering.
  *our company's productions have become highly intelligentized and widely cover. With strong
  technical force and strong development, new products have been launched continuously.

• Exhibition

We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India,

Germany, Belgium, the USA, Mexico, Kenya,

Nigeria, South Africa and other countries worldwide. And we have gained a strong advantage and a high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instruments and electrical testing instruments.

Brazil ANALITICA LATIN AMERICA 2017 Photos Show



• Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.
