• Model NO.：GD-4294
• Weight：0-100Kg
• Power Source：AC220V
• Measuring Range：20 Ppm to 5%
• Repeatability (R)：Less Than 0.02894 (S+0.1691)
• Reproducibility (R)：Less Than 0.1215 (S+0.05555)
• Detection Limit：10 Ppm
• Oil Sample Quantity：3 Ml
• Measurement Time：It Can Be Set to 30s or 60s or 90s or 120s or 150s
• Calibration Curve Numbers：It Can Save 10 Calibration Curves
• Application：X-ray Fluorescence Energy Dispersive Sulfur Analyz
• Transport Package：Wooden Case , Plywood
• Specification：Refer to ASTM D4294
• Trademark：GOLD
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-4294 Weight 0-100Kg Power Source AC220V Measuring Range 20 Ppm to 5% Repeatability (R) Less Than 0.02894 (S+0.1691) Reproducibility (R) Less Than 0.1215 (S+0.05555) Detection Limit 10 Ppm Oil Sample Quantity 3 Ml Measurement Time It Can Be Set to 30s or 60s or 90s or 120s or 150s Calibration Curve Numbers It Can Save 10 Calibration Curves Application X-ray Fluorescence Energy Dispersive Sulfur Analyz Transport Package Wooden Case / Plywood Specification Refer to ASTM D4294 Trademark GOLD Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

ASTM D4294 X-ray Fluorescence Energy Dispersive S in Oil Sulfur Analyzer



Test Significance:

The sulfur content of fuels is widely regulated to reduce atmospheric emissions of sulfur dioxide, or SO2, and other sulfur oxides, or SOx, during combustion of the fuel. Sulfur dioxide has wideranging negative health effects, particularly impacting the respiratory system as well as contributing to the formation of acid rain. The primary sources of SO2 in the atmosphere are from sulfur contained in fossil fuels that are burned for power generation and transportation as well as naturally-occurring volcanic emissions. To limit SO2 discharge into the atmosphere, various organizations and governments have imposed increasingly strict limits on the sulfur content of fuels. A recent example of this is the International Maritime Organization's (IMO) regulation set to take place in 2020 limiting the content of sulfur in marine fuel at 0.5%, reduced from the current 3.5% limit.


Application:

1. Automatic Sulfur Analyzer can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.
2. Automatic X-ray Fluorescence Sulfur Analyzer can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.
3. Automatic Sulfur Analyzer can be used to determine total sulfur or sulfide in other liquid or solid powder samples.


Features:

1. The Sulfur Analyzer adopts electromechanical integrated micro-computer design, 8-inch wide viewing angle capacitive touch screen (1024*768) display, backlight brightness can be set by the software, no keyboard is needed, and the interface is simple and beautiful.
2. Wide variety of detection, wide measuring range, fast analysis speed, less sample consumption.
3. Using the fluorescence intensity ratio analysis method, the temperature and air pressure are automatically corrected, and the hydrocarbon ratio (C/H) can also be corrected.
4. The automatic diagnosis function of the instrument determines the working state and electrical parameters of the instrument.
5. Using the disposable Mylar membrane sample cup, it can avoid cross-contamination; the sample cup is made of multi-function pressing, which is quick and convenient. 6. The sample stage is positioned accurately, it is very convenient to place the sample and replace the oil leakage prevention component, and avoid the possibility that the detection system is contaminated.
7. The instrument has a large amount of data storage. The default storage is 4096 content analysis results, 8192 count measurement data and 16 instruments calibration result data, the data can be queried, and it can also be uploaded to the computer through the RS-232 standard serial communication port.
8. The instrument has the function of automatic peak stabilization, when the performance of the detector decreases, the system can automatically adjust the high voltage and correct the error.
9. The instrument automatically selects the working curve by default, without user intervention.
10. The user can select the measurement result unit, ppm or (m/m)%.
11. Safety protection measures of X rays can prevent ionizing radiation damage to individuals or groups.

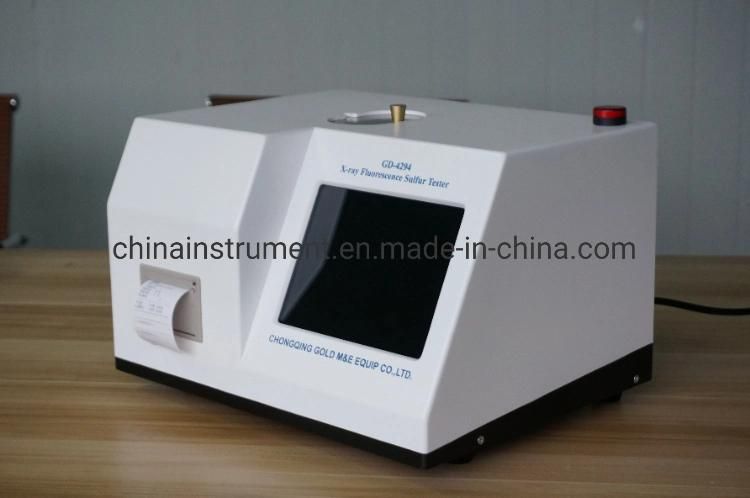

Real Pictures:
