Automatic Large Direct Shear Apparatus
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Material Testing Machine
- Maxcapacity：15kn
Base Info
- Model NO.：STYE-2000F
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
- Control：Electric
- Weight：300
- Power Source：Can Customized
- Oil Cylinder Position：No
- Max. Pressure Capacity：16kn
- Max. Shear Capacity：15kn
- Max. Horizontal Displacement：100mm
- Relative Indication Error：1%
- Rated Pressure of The Hydraulic Pump：40MPa
- Horizontal Shear Rate：4.8mm,Min
- Transport Package：Wooden Case
- Specification：97x60x121
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STYE-2000F Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Weight 300 Power Source Can Customized Oil Cylinder Position No Max. Pressure Capacity 16kn Max. Shear Capacity 15kn Max. Horizontal Displacement 100mm Relative Indication Error 1% Rated Pressure of The Hydraulic Pump 40MPa Horizontal Shear Rate 4.8mm/Min Transport Package Wooden Case Specification 97x60x121 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

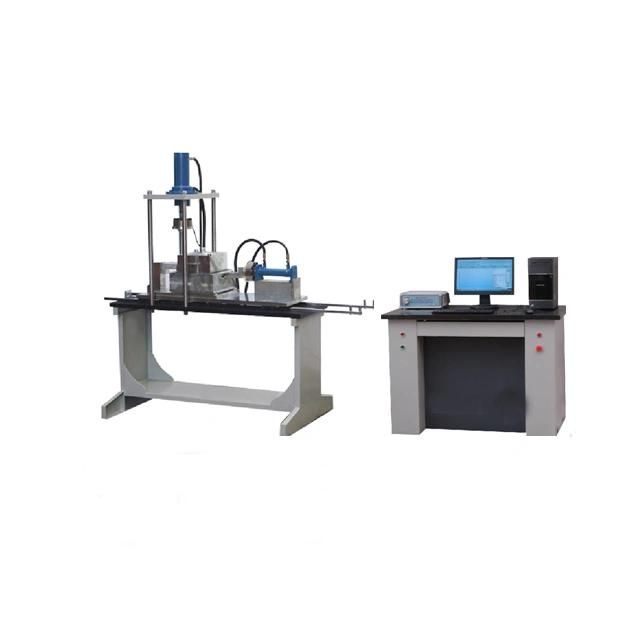

STYE-2000F Automatic Large Direct Shear ApparatusApplication:applied to the shear test for rock, also can used to test the shear strength for other material. With the characteristics of save the peak and data protection, data can be automatically processed and printed.
Technical Specifications:
| Max. pressure capacity | 16kN |
| Max. shear capacity | 15kN |
| Max. horizontal displacement | 100mm |
| Relative indication error | ±1% |
| Rated pressure of the hydraulic pump | 40Mpa |
| Horizontal shear rate | 4.8mm/min |
