Automatic Transformer Dissipation Factor and Tan Delta Tester High Precision TTR Test

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Max Diameter of Workpiece：>3200mm
  • Mass Scope of Workpiece：900kg
  • Type：Transformer Testing Machine
  • Accuracy Grade：0.5

Base Info

  • Model NO.：GDGS
  • Load Way：Electronic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：30kg
  • Power Source：AC220V
  • Product Name：Transformer Tan Delta Tester
  • Input Current Range：10μa~5A
  • Standard：IEC60247
  • Test Time：40s Typical
  • Power Supply：180V~270V 50Hz,60Hz Auto
  • Operating Temperature：-10ºC~50ºC
  • Humidity：<90%
  • Storage Temperature：-20ºC~60ºC
  • Transport Package：Standard Wooden Case
  • Specification：30kg
  • Trademark：Gold
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：200set,Month

Description

Frequency select60Hz single point, locked55Hz/65Hz double point, lockedTest Time40s typicalPower Supply180V~270V 50Hz/60Hz autoEnvironment temperature0~50°CHumidity≤85%RHWeight40kg

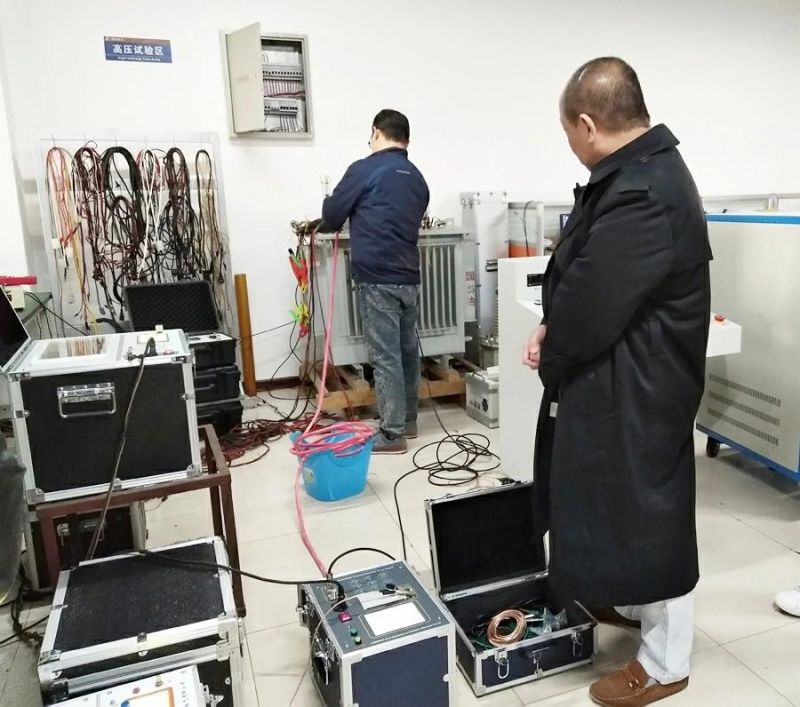

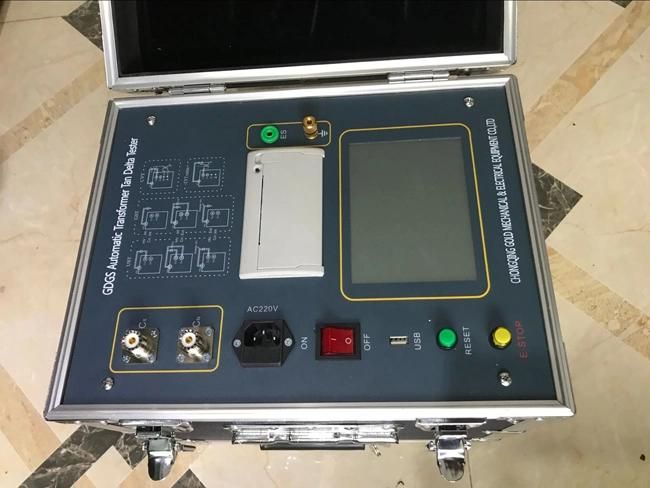

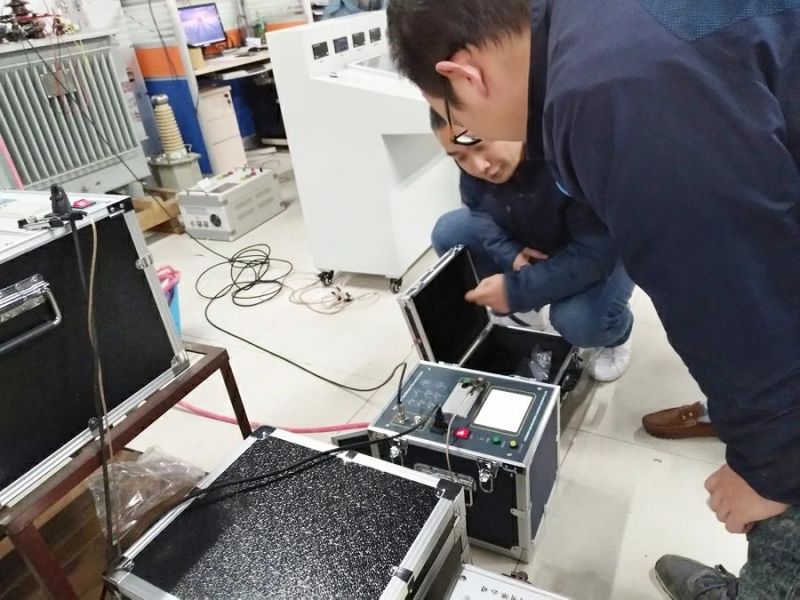

Real Pictures:
Automatic Transformer Dissipation Factor and Tan Delta Tester High Precision TTR Test
Automatic Transformer Dissipation Factor and Tan Delta Tester High Precision TTR Test
Automatic Transformer Dissipation Factor and Tan Delta Tester High Precision TTR Test
