• Model NO.：GDHL
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Item Name：Circuit Breaker Contact Resistance Tester
• Application：Test Contact Resistance of Circuit Breaker
• Test Object：Various Models of Vacuum Switch
• Reference Standard：IEC62271
• Test Current：DC 100A, 200A, 400A, 600A for Choice
• Dimension：34*28*21cm
• Net Weight：12kg
• Price：Competitive Price
• Power Supply：220V, 50Hz
• Warranty：One Year
• Transport Package：Packed in Veneer Case
• Specification：46*34*20cm, 7kg
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. GDHL Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Na Item Name Circuit Breaker Contact Resistance Tester Application Test Contact Resistance of Circuit Breaker Test Object Various Models of Vacuum Switch Reference Standard IEC62271 Test Current DC 100A, 200A, 400A, 600A for Choice Dimension 34*28*21cm Net Weight 12kg Price Competitive Price Power Supply 220V, 50Hz Warranty One Year Transport Package Packed in Veneer Case Specification 46*34*20cm, 7kg Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 10000 Sets/Month

Product Description

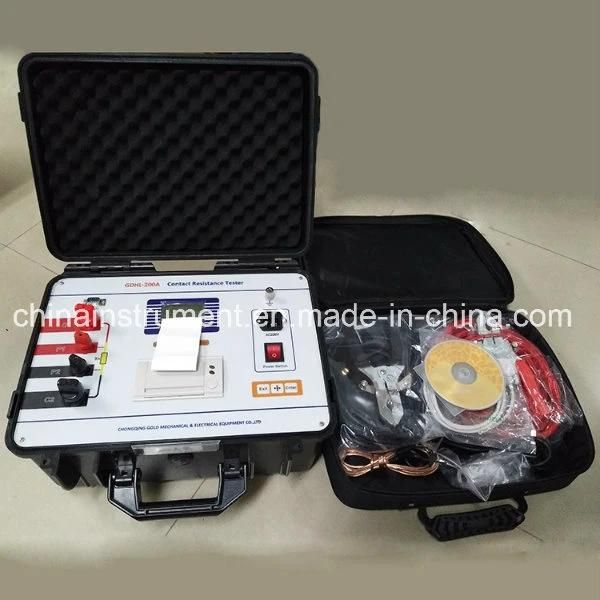

GDHL 100A, 200A, 400A Circuit Breaker Contact Resistance Tester, Loop Resistance Tester

Introduction:

1. 100A, 200A, 400A Circuit Breaker Contact Resistance Tester, Loop Resistance Tester is used to test the contact resistance of circuit breaker or high current cable contacts.
2. It is designed according to IEC62271.
3. The main application of the contact resistance tester is measurement of circuit breaker contact resistance.
4. All the test results of the tester could be print by the micro-printer which is integrated in the tester.
5. Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.

Features:

1. Rapid test;
2. Result print;
3. Upload data to PC;


Specifications:

No.	Item Name	100A, 200A, 400A Circuit Breaker Contact Resistance Tester, Loop Resistance Tester
1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A, 200A, 400A, 600A for choice
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm× 280mm × 210mm
9	Environment temperature	-10 ºC~+40 ºC
10	Relative humidity	<80%
