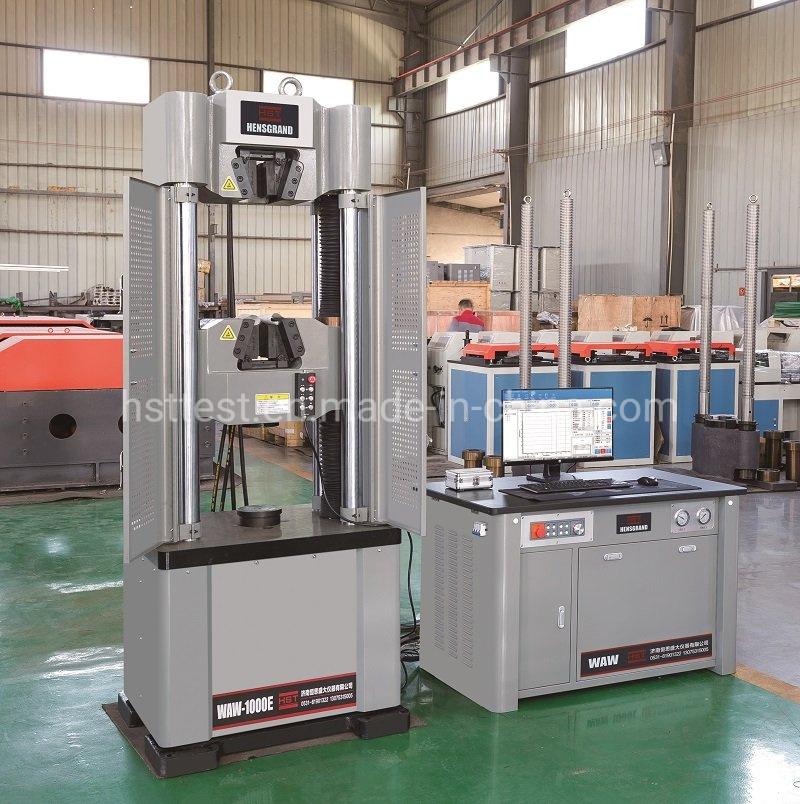

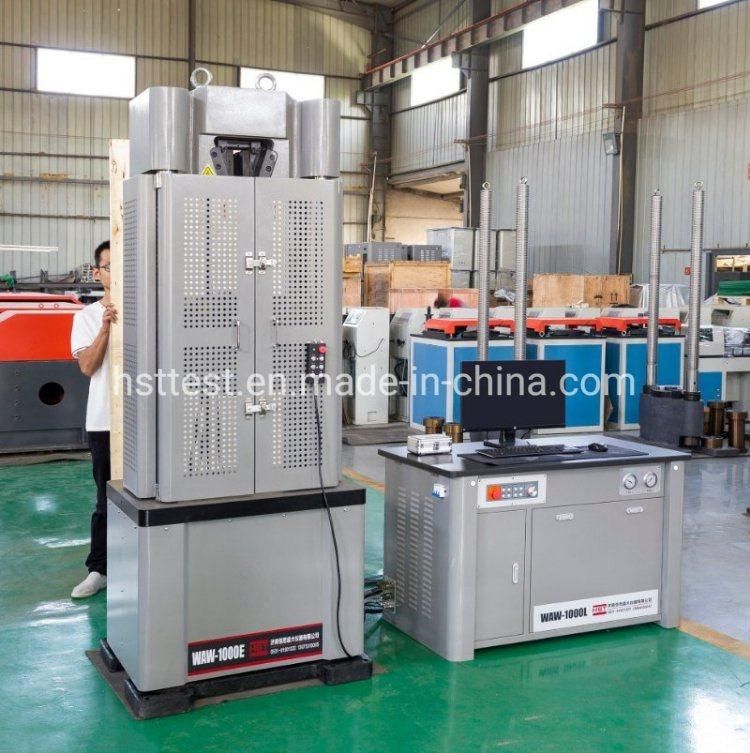

• Model NO.：WAW-1000D
• Accuracy Grade：0.5
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Sample Clamp：Hydraulic Grips
• Tension Space：650mm
• Compression Space：500mm
• Sampel Grips：Customized
• Safe：Protection Net
• Color：Blue or White
• Transport Package：Standard Sea Shipping Case
• Specification：740x580x2035mm
• Trademark：Hensgrand or OEM
• Origin：Jinan, Shandong
• HS Code：9031809090
• Production Capacity：100 Sets,Month

WAW-600DWAW-1000DMax load 300KN600KN1000KNStructure6 columnControl wayconstant stress uniform deformation constant
 displacement three closed loop control and program controlLoad accuracy≤±1%   or  ≤± 0.5% Load range2%-100%FS  or  0.4%-100%FS Load resolution1/300000Deformation Measurement Range 2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution 0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax. tension test space 650mm (can customize) 500mm (can customize)Oil cylinder moving speed 1409050Crosshead moving speed200150120Effective space between columns 430mm475mm525mmRound specimen clamping rangeΦ10-Φ32mmΦ13-Φ40mmΦ13-Φ40mmFlat specimen clamping range0-15mmClamping methodHydraulic clampClamp height70mm90mm90mmClamping width75mm80mm80mmCompression plate size φ160mmBending roller distance450mmWidth of bending rollers 120mmPower supply3-phase,  AC380V,   50Hz  (can be customized)

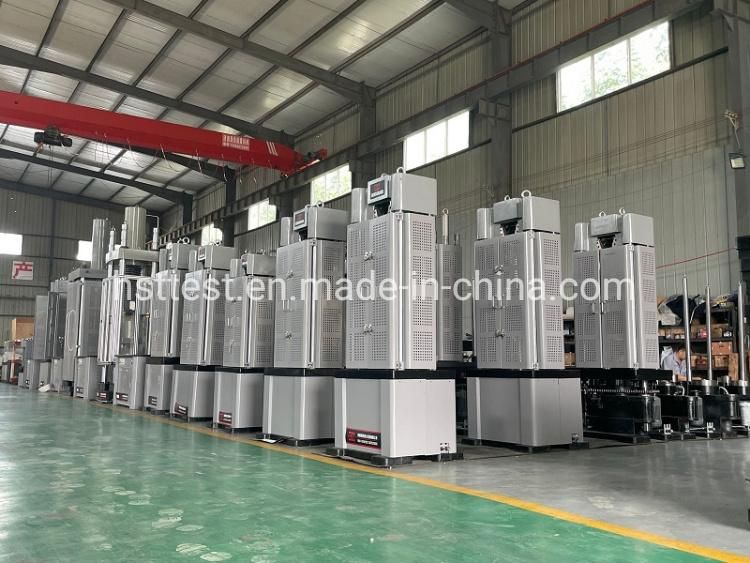

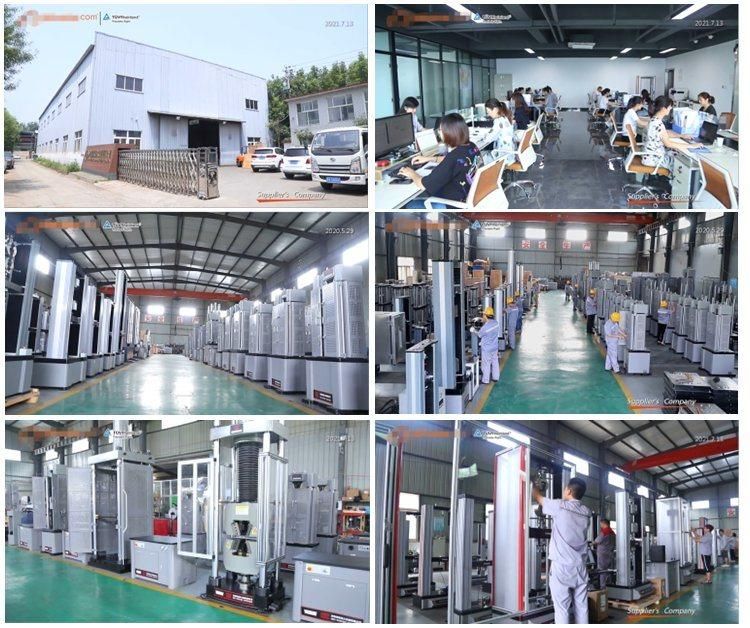

WORK SHORP:

EXHIBITON
OUR Customers all over the world

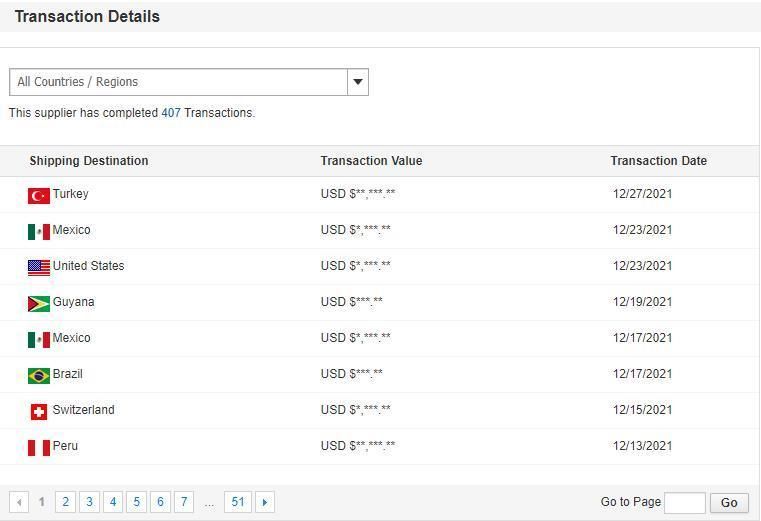

Transactions trade:
CERTIFICATE

HST GROUP machines scope:
A: Universal Testing Machine :Electronic/hydraulicSingle column/door tye WDS/WDW/WE/WEW/WAW series
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting machine, polishing and grinding machine, mounting machine, microscopes.

Dear Customer, with enough technical engineers and skilled workers, we could supply high quality machines with moderated prices. All the machines could be OEM and customized according to your special requests. Welcome to visit our factory in Jinan city, for more informations please contact Sunny for more details :
Jinan Hensgrand Instrument Co., Ltd
ADD: NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA.



Website: http://hsttest.en.made-in-china.com
