• Model NO.：WEW-D
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V,220V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：300kn
• Test Range：2%~100%
• Color：White, Blue or Customized
• Usage：Tensile, Compression, Bending, Shear, Peel, etc
• Certificate：Ce ISO
• Warranty：12 Months
• Load Accuracy：1 Class
• Protection：Overload Overcurrent Protection and Protection Net
• Grip：Hydraulic Grip
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：925*550*2043mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

WEW-600DWEW-1000DMax load (kN)3006001000Structure6 columnControl wayloading process manual control,computer automatic data dealingLoad accuracy≤±1%   or  ≤± 0.5%Load range2%-100%FS  or  0.4%-100%FSLoad resolution1/300000Deformation Measurement Range2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax. tension test space600 mm500 mm500mmMax compression test space750 mm650 mm650mmOil cylinder moving speed140 mm/min90 mm/min50 mm/minCrosshead moving speed200mm/min150mm/min120mm/minEffective space between columns420mm475mm525mmRound specimen clamping rangeΦ10-Φ32mmΦ13-Φ40mmΦ13-Φ40mmFlat specimen clamping range0-15mmClamping methodHydraulic clampClamp height70mm90mm90mmClamping width75mm80mm80mmCompression plate sizeφ160mmBending roller distance450mmWidth of bending rollers120mmPower supply3-phase,AC380V, 50Hz(can be customized)

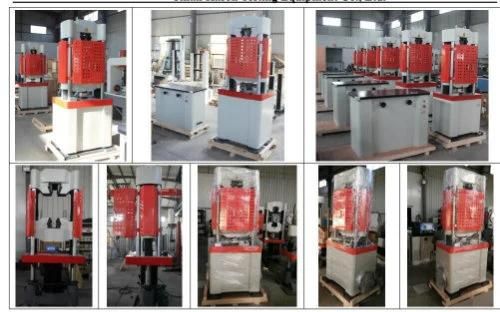

Pictures:

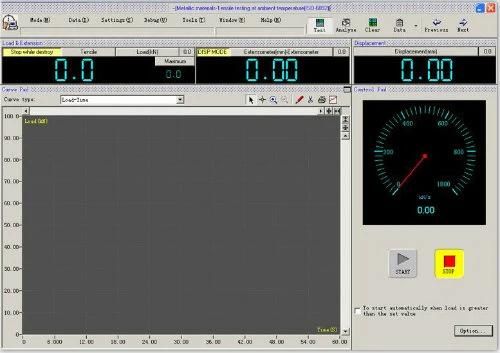

Software:

Package & Transportation :

CE Certificate:

Company information
