• Model NO.：STYE-2000M, 3000M
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Way：PC Software
• Add Pressure Way：Electric Hydraulic
• Test Specimen：Concrete, Cement, Stone and So on
• Operating：Motor Drive Screw Post
• Transport Package：Standard Wooden Packing
• Specification：1050*650*2240mm
• Trademark：YF
• Origin：China
• HS Code：9031809090
• Production Capacity：5000piece,Year

Basic Info.

Model NO. STYE-2000M, 3000M Control Computer Control Weight >2000Kg Power Source AC220V Oil Cylinder Position Under Display Way PC Software Add Pressure Way Electric Hydraulic Test Specimen Concrete, Cement, Stone and So on Operating Motor Drive Screw Post Transport Package Standard Wooden Packing Specification 1050*650*2240mm Trademark YF Origin China HS Code 9031809090 Production Capacity 5000piece/Year

Product Description

Products description


Use:
Computer controlled hydraulic servo compression testing machine is mainly used to test compression strength of cement, concrete, rocks, brick. Space adjusting and  test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis.
It is the most advanced series in hydraulic compression testing machines. It is widely used in different steel works, engineering areas, quality control department, Universities and institutes as well as other areas and works.
Fully computer controlled testing process.
Stable and reliable high intensity structure load frame.
Real time display software will provide accurate track of testing process.
Powerful multifunctional control software will provide more testing methods and standards.
Overload protection will secure operators.
Safe and reliable software interface and control. It is very easy to prevent mistake operation during the test stage which will cause damage to the testing machine.
Easy and fast to edit customized test reports in EXCEL format.
Specification:

STYE-2000M	STYE-3000M
Max. Testing power: 2000kN	Max. Testing power: 3000kN
Measuring range: 0-2000kN	Measuring range: 0-3000kN
Relative indication error: ±1%	Relative indication error: ±1%
Max. distance between the up and down bearing  plates: 310mm	Max. distance between the up and down  bearing plates: 380mm
Max. piston stroke: 300mm	Max. piston stroke: 300mm
Diameter of the piston: Φ250mm	Diameter of the piston: Φ310mm
Rated pressure of the hydraulic pump: 40MPa	Rated pressure of the hydraulic pump: 40MPa
Power: AC380 or AC220V±10%	Power: AC380 or AC220V±10%
Main frame: 600×600×2000mm	Main frame: 600×600×2240mm
Control console: 1050×650×860mm	Control console: 1050×650×860mm
Max. piston lift speed: 50mm/min.	Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.	Piston free back speed: 20mm/min.
Noise: ≤80Db	Noise: ≤80Db

Company Information

Zhejiang Tugong Instrument Co., Ltd. is professional manufacturer of computerized, digitized and intelligent testing equipments. Our company has great-leap-forward development in the past thirty years since established in 1981. Company cover an area of 26,680 square meters, have 14 modernized standard workshops, be equipped with complete vehicle, gear, milling, grinding, and boring machine, have high independent research and development ability.

Why choose us:

a.Company information:

1.Established in 1981,has great-leap-forward development in the past thirty years.Company cover an area of 26,680 square meters, have 14 modernized standard workshops

2. We have 32 kinds of products won the Licence for manufacturing measuring instrument; 48 kinds of products won National Industrial Product Manufacture Licence;39 kinds of product won National Patent.

3.We export products to more than 80 countries in the world such as Europe, America, Australia etc. We are authorized as "AAA Credit Business" by Agricultural Bank of China.

4.We won ISO9001:2008 quality management system certification, ISO14001:2004 environment management system certification, France BV International quality certification, European Union CE certification.

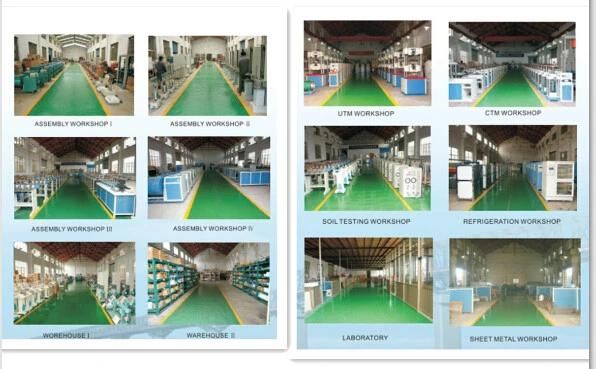

b.Neat and clean workshop

c. Good quality control

d.Competitive price, save your money.

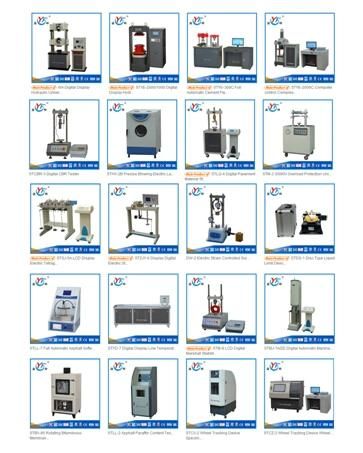

e.Full range products, offer you one-stop purchase, save your time, save your delivery cost.


Packing & shipping

Packing Material: Plywood Case meeting export long transport requirement.

Packing Method: Horizontal Packing to saving more shipping cost.

Shipping : within 5-10 days after receive 100% payment .

Shipping way: shipped by sea or Air is available.

FAQ

What's the  delivery time?

10-20 working days after receiving full payment.Large machine need 20working days,small machine need 5-10 working days.

What's your payment terms?

T/T in advance,L/C,Western Union.

What's your trade terms?

We accept FOB,CIF,EXW,CNF and LC ect.

What's your services(warranty)?

We will send the user manual together with products,and warranty is 12 months.
