• Model NO.：Stye-2000
• Control：Digital
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Way：Digital Display
• Specimen：for Concrete, Cement, Brick
• Loading Style：Manual Delivery Oil Valve and Back Oil Valve
• Certificate：ISO9001:2000
• Electric Safety：Ce Certificate
• Standard：ASTM E4
• Result：Data Window
• Special：Can Add Safety Cover
• Transport Package：Standard Wooden Packing
• Specification：1.03cbm
• Trademark：YF
• Origin：China
• HS Code：9031809090

Basic Info.

Model NO. Stye-2000 Control Digital Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Under Display Way Digital Display Specimen for Concrete, Cement, Brick Loading Style Manual Delivery Oil Valve and Back Oil Valve Certificate ISO9001:2000 Electric Safety Ce Certificate Standard ASTM E4 Result Data Window Special Can Add Safety Cover Transport Package Standard Wooden Packing Specification 1.03cbm Trademark YF Origin China HS Code 9031809090

Product Description

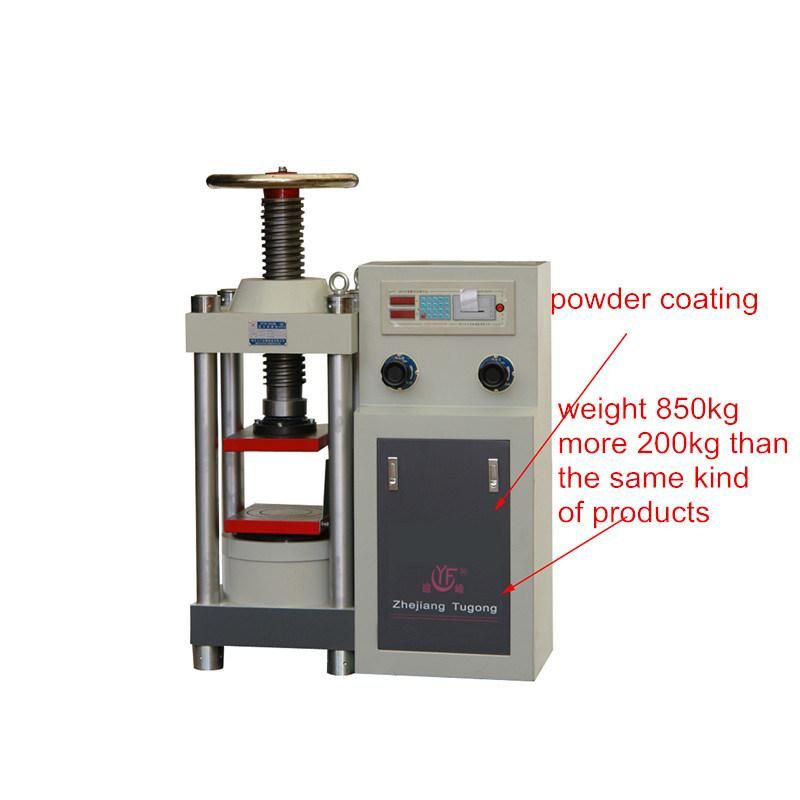

Product Description:2000kn Digital Display Hydraulic Compression Tester

Use:    STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes &cylinders, hollow blocks and various other materials in accordance with International standard. The machine iselectro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.Feature:Efficient hydraulic power packsEconomic machines ideal for site useDesigned to meet the need for a simple, economic and reliable means of testing concrete.The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines inthe range. Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.

 STYE-2000

Max.Testing power	2000KN
Measuring range	0-2000kn
Relative indication error	+-1%
Testing power precision	grade 1
Size of the bearing plate	320x260mm
Max.distance between the up and down bearing plates	310mm
Max.piston stroke	90mm
Rated pressure of the hydraulic pump	40Mpa
Power	AC220V or AC380V
Outside size	950x400x1160mm
Max.piston lift speed	50mm/min
Piston free back speed	20mm/min
Net weight	about 850kgs
Noise	<80Db
