• Model NO.：GD-H1088
• Power Source：AC220V
• Test Method：ASTM D5293, ASTM D2602
• Applications：Engine Oils, Lubricating Oils, Base Stocks
• Apparent Viscosity of Engine Oils：-35c to -5c
• Viscosity Range：900 MPa.S (Cp) to 25000 MPa.S (Cp)
• Refrigeration Method：Semiconductor Refrigeration
• Circulation Method：Multi-Function Universal Steel Pump
• Temperature Control Mode：Digital Display Pid Temperature Controller
• Detection Method：Automatic Injection, Automatic Cleaning, Automatic
• Result Processing：Automatic Storage, Printing
• Transport Package：Wooden Case or Plywood
• Specification：Refer to ASTM D5293
• Trademark：GOLD
• Origin：Made in China
• HS Code：90318990
• Production Capacity：200PCS,Month

Basic Info.

Model NO. GD-H1088 Power Source AC220V Test Method ASTM D5293, ASTM D2602 Applications Engine Oils, Lubricating Oils, Base Stocks Apparent Viscosity of Engine Oils -35c to -5c Viscosity Range 900 MPa.S (Cp) to 25000 MPa.S (Cp) Refrigeration Method Semiconductor Refrigeration Circulation Method Multi-Function Universal Steel Pump Temperature Control Mode Digital Display Pid Temperature Controller Detection Method Automatic Injection, Automatic Cleaning, Automatic Result Processing Automatic Storage, Printing Transport Package Wooden Case or Plywood Specification Refer to ASTM D5293 Trademark GOLD Origin Made in China HS Code 90318990 Production Capacity 200PCS/Month

Product Description

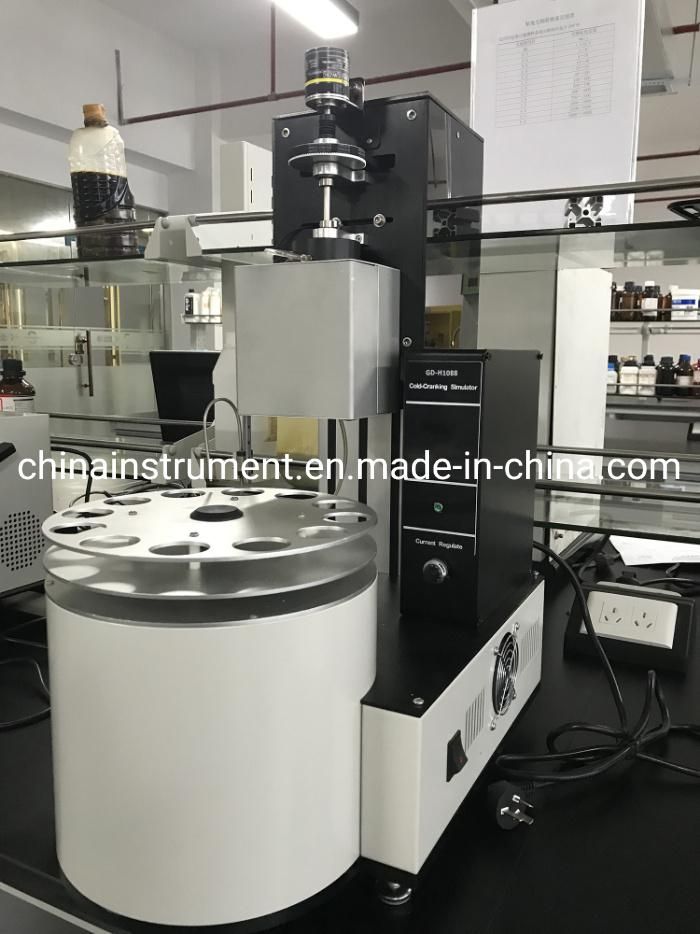

Thermoelectrically-Cooled Cold-Cranking Simulator for measuring engine oil's apparent viscosity


Thermoelectrically-Cooled Cold-Cranking Simulator:

The CCS means a cold-cranking simulator for measuring apparent viscosity of engine oils from -35 °C to -5 °C. Automated sample loading, operation and solvent-free cleaning.
The Cold Cranking Simulator is used to determine whether an engine oil's apparent viscosity meets the CCS specification criteria described in ASTM D5293 / SAE J300 for cranking viscosity.


Features of Automatic Engine Oil Apparent Viscosity Tester:

1. Automatic testing rotating speed, control current and reduce human error.
2. Semiconductor refrigeration, a large quantity of cold.
3. It adopts imported motor drive, high precision.
4. LCD screen shows all working conditions.
5. Printer can be connected to print the results.
6. After calibration with standard oil, results are automatically calculated.
7. Computer control, windows operating system, all English interface.
8. Improved rotor, low torque test state, high repeatability.
9. Automatically generate calibration curves, direct display of test viscosity results.
10. All test procedures are fully automatic control without manual operation, automatic stop and heat up after the test
11. The instrument automatically recommends the cooling temperature.
12. Rotary encoder detects speed.
13. Viscosity measurement range: 500~15,000CP.
14. It can edit 20 kinds of standard oil results.
15. Equipped with a dedicated low-temperature refrigeration equipment.


Specifications of Automatic Engine Oil Apparent Viscosity Tester:

Apparent Viscosity Of Engine Oils Between -5 And -35°C Using The Cold-Cranking Simulator


1	Applicable standards	GB/T6538, ASTM D2602, D5293
2	Refrigeration method	Semiconductor refrigeration
3	Circulation method	Multi-function universal steel pump
4	Temperature control mode	digital display PID temperature controller
5	Detection method	Automatic injection, automatic cleaning, automatic testing
6	Result processing	Automatic storage, printing
7	Temperature control range	Normal temperature~-35ºC
8	Working power supply	AC220 V, 50Hz

Apparent Viscosity Of Engine Oils Between -5 And -35°C Using The Cold-Cranking Simulator
