• Model NO.：GW-082
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-082
• Count (Time)：LCD, 0~999, 999
• Balance Range：5000g, Accuracy 5g
• Speed Control Motor：3∮, 110W
• Volume：50 × 60 × 80cm
• Grinding Wheel：φ20±0.1mm, Aperture (6±0.02)mm
• Test Time：Adjustable for 20 Minutes in Succession
• Transport Package：Standard Export Safety Packing
• Specification：50*60*80
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-082 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-082 Count (Time) LCD, 0~999, 999 Balance Range 5000g, Accuracy 5g Speed Control Motor 3∮, 110W Volume 50 × 60 × 80cm Grinding Wheel φ20±0.1mm, Aperture (6±0.02)mm Test Time Adjustable for 20 Minutes in Succession Transport Package Standard Export Safety Packing Specification 50*60*80 Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

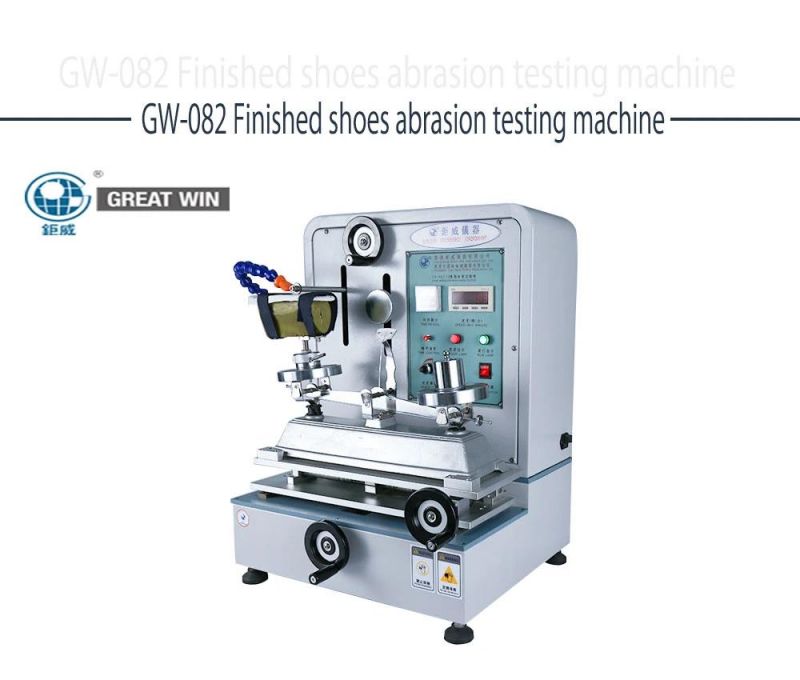

Finished shoes abrasion  testing machine ( GW-082 )

•Brief introduction:
It is mainly used in rubber sole, TPR sole, PU sole and plastic sole, shoe or specimens of wear-resistanting test.The rotating wheel vertical pressure on the sample,conduct the abrasion test on the samples with a certain load, certain speed and certain time, measurement sample abrasion loss  results.

•Technical Specifications:

Model	GW-082 Finished shoes abrasion testing machine
Grinding wheel	φ20±0.1mm, aperture (6±0.02)mm
Test time	adjustable for 20 minutes in succession
Count (time)	LCD, 0~999, 999
Speed	commonly used 191 ± 5r / min, adjustable between 50 ~ 300 r / min
Balance range	5000g, accuracy 5g
Speed control motor	3∮, 110W
Volume (W × D × H)	50 × 60 × 80cm
Weight	62kg
Power source	1∮, AC2220V, 3A

•Standard for :
GB/T3903.2

What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
