• Model NO.：(GW-033L)
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-033L
• Temperature Range：-30deg to -80deg Can Choose)
• Inner Size：500mm(W)*600mm(D*500mm(H)
• Interior/Exterior Material：Stainless Steel Plate(SUS#304)
• Cooling Accuracy：+,-0.3 Deg
• Temperature Uniformity：+,-1 Deg
• Temperature. Accuracy：Less Than 1.5deg
• Cooling Down Speed：Rt to -60 Deg Within 80 Minutes
• Transport Package：Wooden Case
• Specification：60kg
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. (GW-033L) Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-033L Temperature Range -30deg to -80deg Can Choose) Inner Size 500mm(W)*600mm(D*500mm(H) Interior/Exterior Material Stainless Steel Plate(SUS#304) Cooling Accuracy +/-0.3 Deg Temperature Uniformity +/-1 Deg Temperature. Accuracy Less Than 1.5deg Cooling Down Speed Rt to -60 Deg Within 80 Minutes Transport Package Wooden Case Specification 60kg Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Sets/Year

Product Description

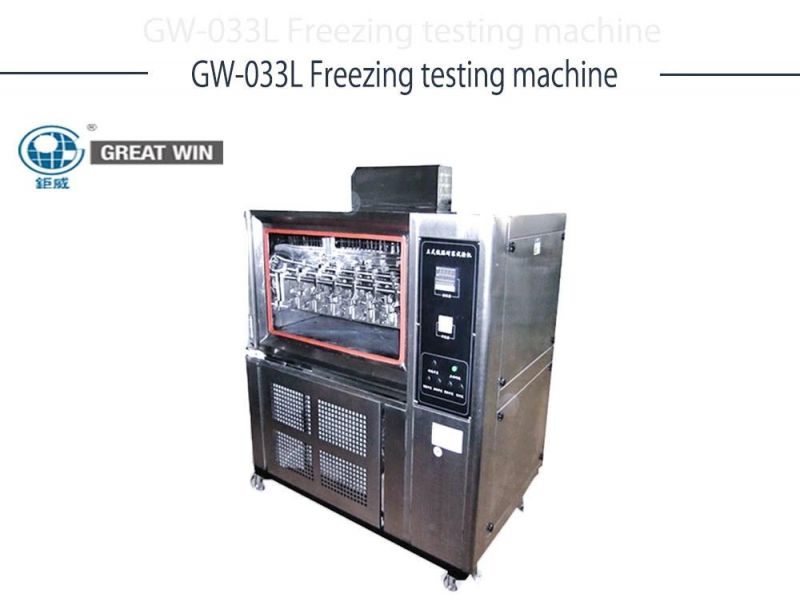

Freezing testing machine/instrument( GW-033L )
 •Brief Introduction:   This machine test cold-endurance of rubber, plastic, shoe, synthetic leather…etc. It is helpful for analyzing both materials and products properties in the cold environment.
   The test chamber can be equipped with a variety of flexing/bending grips which are made by stainless steel. There are the following models to dynamically test the specimens in cold environment.
   The system employees electrical LCD counter whose capacity is form 0~999999.
•Technical Specifications:

Model	GW-033L Freezing testing machine
Temperature range:	-30ºC(-40ºC/-60ºC/-80ºC can choose)
Inner size:;	500mm(W)×600mm(D)×500mm(H)
Interior/Exterior material:	Stainless steel plate(SUS#304)
Cooling Accuracy:	±0.3ºC
Temperature Uniformity:	±1ºC
Temperature. accuracy:	≤±1.5ºC
Cooling down speed:	-60ºC  within 80 minutes
Note:	Normal temp. is  +25ºC
Counter:	LCD 0~999,999
Dimension(W*D*H):	175*72*86CM
Weight:	320KG(not including the grips weight)
Power:	AC220V

•Standard for:
ASTM-D1709,D1593,1052,JIS-K6545,HB-T2877,CNS-7705

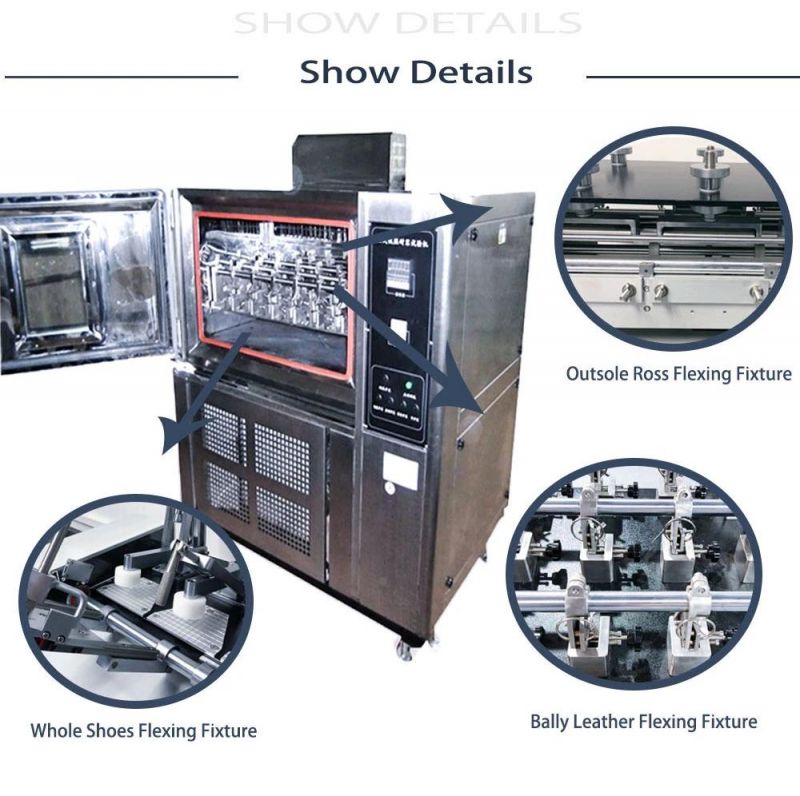

•Attached accessories:
A:BALLY flexing resistance fixture
1.Bending angle:22.5°
2.testing pieces:4
3.Bending speed:100±3cpm or60cpm(can been choose)
B,Whole sole ROSS flexing fixture
1.Bending angle:90°
2.testing pieces:2
3.Bending speed:100cpm
4.Size:150×25mm
C,Whole shoes flexing fixture
1.Bending angle:0-50° adjustable
2.testing pieces:2
3.Test speed:0~150cpm  adjustable
4.Size:150×48mm




What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
