• Model NO.：GD-4508C
• Liquid Circulation：by Magnet Circulat
• Tensile Speed：10mm,Min and 50mm,Min, Two Grades
• Measurement Accuracy：+-1 mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Standard Wooden Case for Gd-4508c
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100PCS,Mon

Product nameGd-4508c Bitumen Ductility Tester / Bitumen Ductility Testing Machine / Bitumen ExtensionPower supplyAC220V(-5%~+10%),50HzMeasuring range1.5m(±10mm)Heating modeElectrical heatingHeating power3000WBath liquid circulationMagnet pumpTemperature range5ºC~49ºC, adjustable,
Digital display, resolution 0.01ºCTemperature accuracy±0.1ºCSpeed10 mm/min or 50mm/min. Two gradesMeasuring accuracy±1mmAmbient temperature-10ºC~+35ºCRH≤85%Overall dimension2365mm×520mm×1000mmMaximum power consumption4100W

Related Products:ParameterGD-4508CGD-4508G(DUAL-PATH)Auto./ManualSemi-autoAutomaticMeasuring range1.5m±10mm2mTemperature range5~50ºC5~50ºCSpeed10mm/min, 50mm/min10~50mm/min,adjustableForce measurementnoyesPC communicationnoyessize2365*520*1000mm2365*520*1000mm

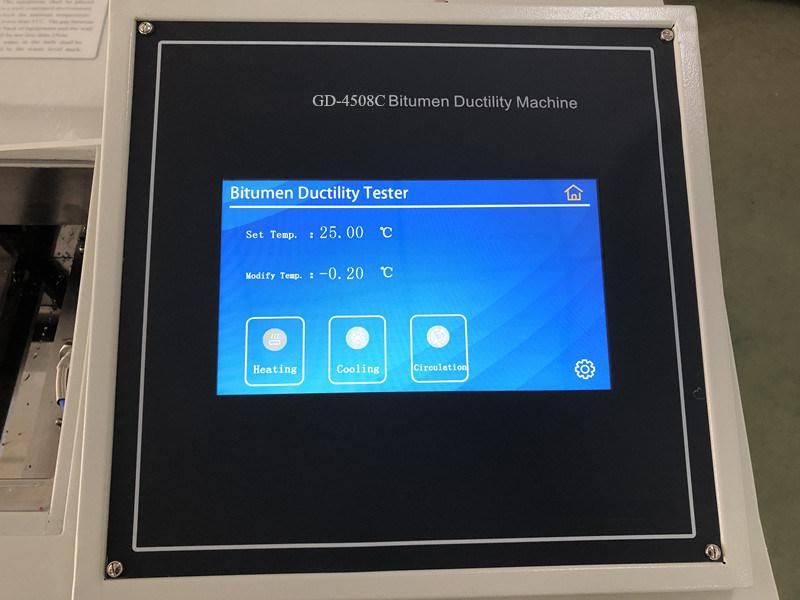

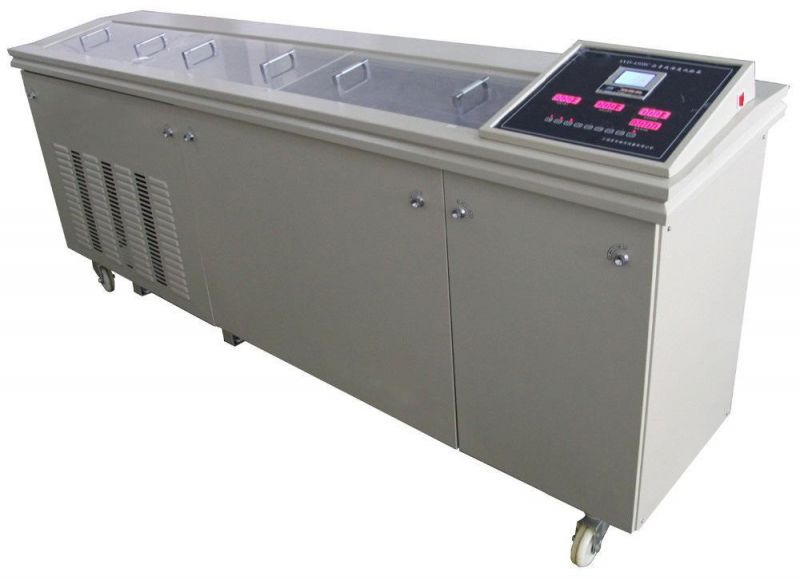

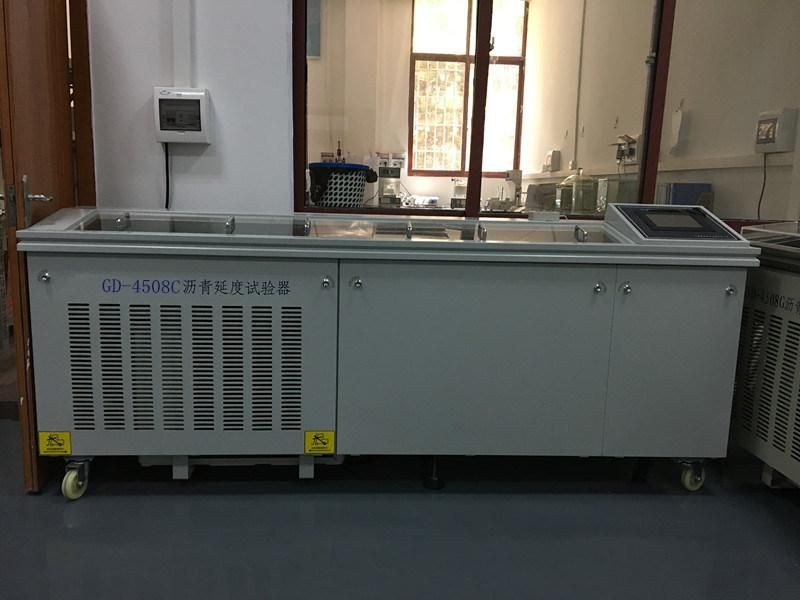

Detail Images:

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
