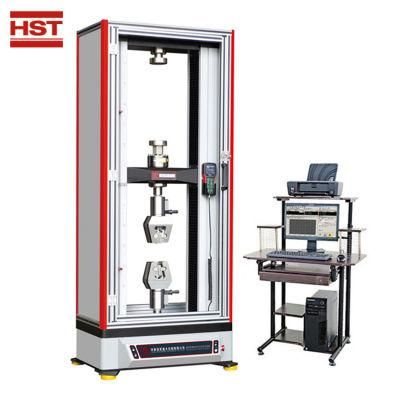

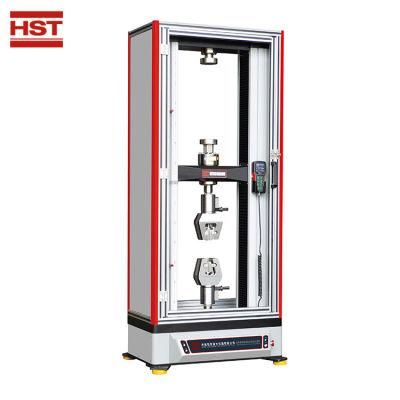

300kn Computer Steel Tensile Test Equipment (WDW-300E)
Jinan Kason Testing Equipment Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：WDW-300E
- Loading Method：Static Load
- Display：Computer Display
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：Motor
- Product Name：100kn Wire Tensile Test Machine Price
- Certification：ISO Ce
- Max Load：100kn
- Application：Tension Compression Bending Shear Test
- Load Accuracy：1 Class
- Grip：Manual Control Wedge Grip
- Cover：All Aluminum Alloy
- Control Method：Computer Control
- Protection：Overload Overcurrent Protection and Protection Net
- Warranty：12 Months
- Transport Package：Export Package
- Specification：750*510*1900mm
- Trademark：HST
- Origin：China
- HS Code：9024101000
- Production Capacity：900 Sets Per Month
Description
Standard
4.Main Unit Feature:
4.1 Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile,
lower for compression, double space. The beam is step less lifting.
4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of
the test force and deformation speed.
4.3 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid
sensor damaged due to the moving distance is too large.
4.4 The table, moving beams is made of high quality precision machining steel plate , not only
reduce the vibration generated by specimen fracture, but also improve the stiffness.
4.5 Three columns of mandatory orientation, make the main unit rigidity much improved, to further
ensure the repeatability of measurement.
4.6 Adopt bolt type grip installation, make the grip replace easier.
4.7 Adopt AC servo driver and AC servo motor, with stable performance,more reliable.
Have over-current, over-voltage, over speed, overload protection device.
5.Function Features:
5.1 Automatic calibration: system can automatically realize the accuracy of the calibration value.
5.2 After the sample broken, automatic stop.
5.3 Automatic display: Real-time display testing force, displacement, testing speed, peak value,
testing status on one LCD.
5.4 Automatic return: beam automatic return to initial position when testing finished.
5.5 Breakage judgment: sample after fracture,beam automatic stop moving.
5.6 Limiting protection: Program control and Mechanical limiting protection.
5.7 Overload protection:When more than 3~5% of the rated load device automatically stop working
5.8 Automatic calculation: automatic calculation area after input sample diameter (round); Width,
thickness (flat), sample gauge ect.
