• Model NO.：WAW-600D
• Loading Method：Static Load
• Display：Computer Show
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Delivery Time：10-30 Days After Get Tt Payment
• Color：White
• Certifications：Ce and ISO
• Sample Clamp：Wedge Type, Plate Type and Other Grips as Consumer
• Standard Test：Tensile ,Compression ,Bending
• Transport Package：Standard Export Packing
• Specification：875*750*2035mm
• Trademark：HST
• Origin：China
• HS Code：9024109000
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. WAW-600D Loading Method Static Load Display Computer Show Control Computer Control Weight 1000-2000Kg Power Source AC220V Oil Cylinder Position Under Delivery Time 10-30 Days After Get Tt Payment Color White Certifications Ce and ISO Sample Clamp Wedge Type, Plate Type and Other Grips as Consumer Standard Test Tensile /Compression /Bending Transport Package Standard Export Packing Specification 875*750*2035mm Trademark HST Origin China HS Code 9024109000 Production Capacity 300 Sets Per Month

Product Description

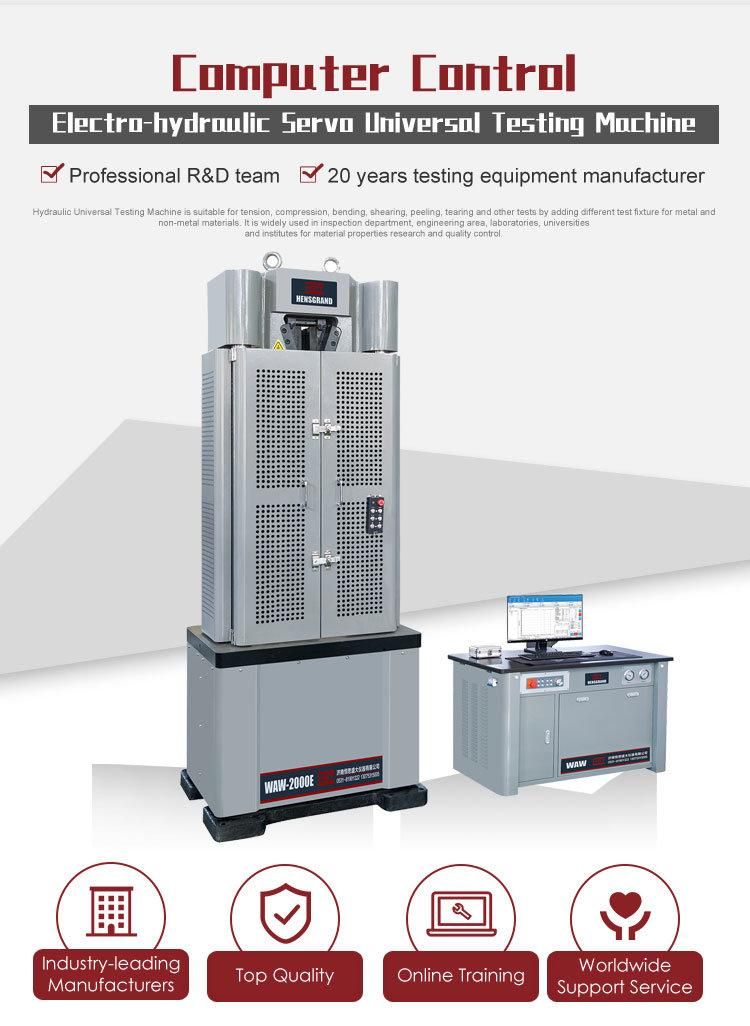

mild steel/polymer/plastic/steel metal bolt tensile test utm machine




1.Application:

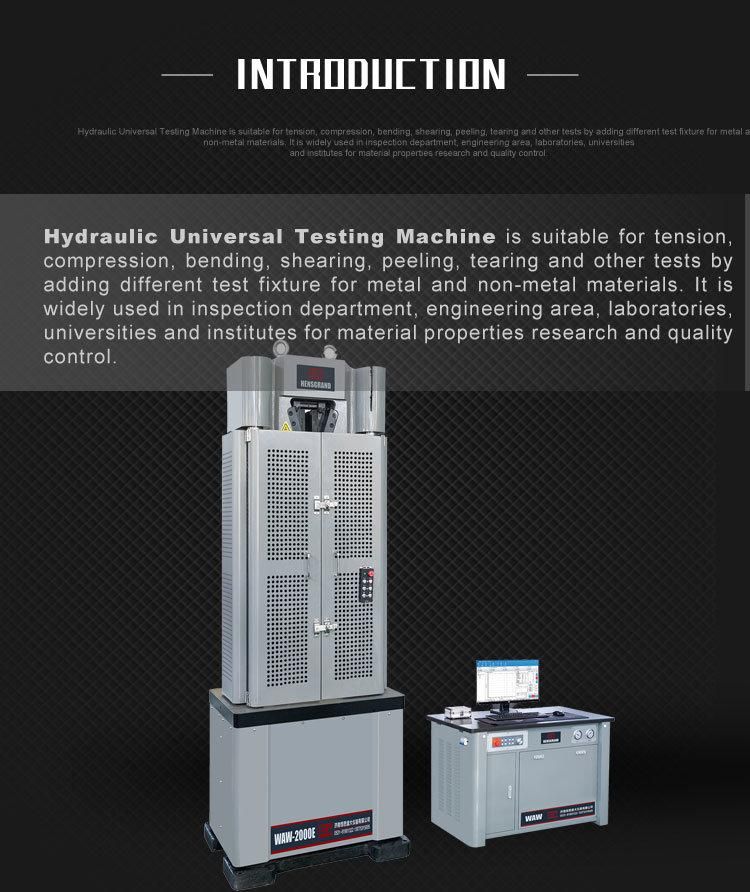

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Standards:
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Specifications:

Model	WAW-300D
Structure	4 columns and 2 screws
Control way	Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Max.load (kN)	300kN
Load accuracy	≤±1%
Load range	2%-100%FS
Load resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation accuracy	≤±1%
Displacement resolution (mm)	0.01
Displacement error	≤±0.5%
Max.piston stroke(mm)	250
Max piston moving speed	0-90mm/min stepless speed adjusting
Crosshead lifting speed	200mm/min
Max. tension test space	750mm (can customize)
Max.Compression Test Space	600mm (can customize)

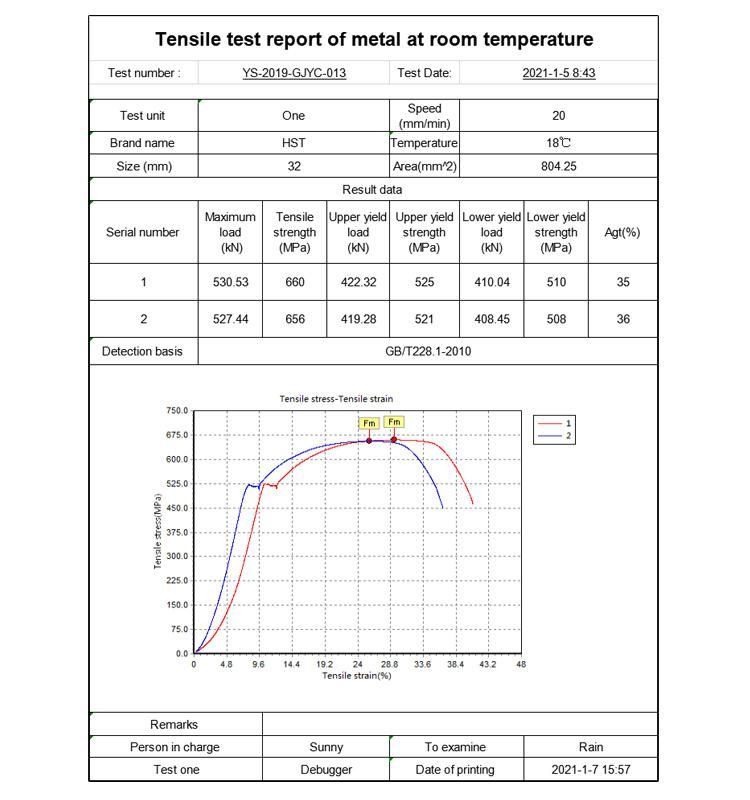

Software show:

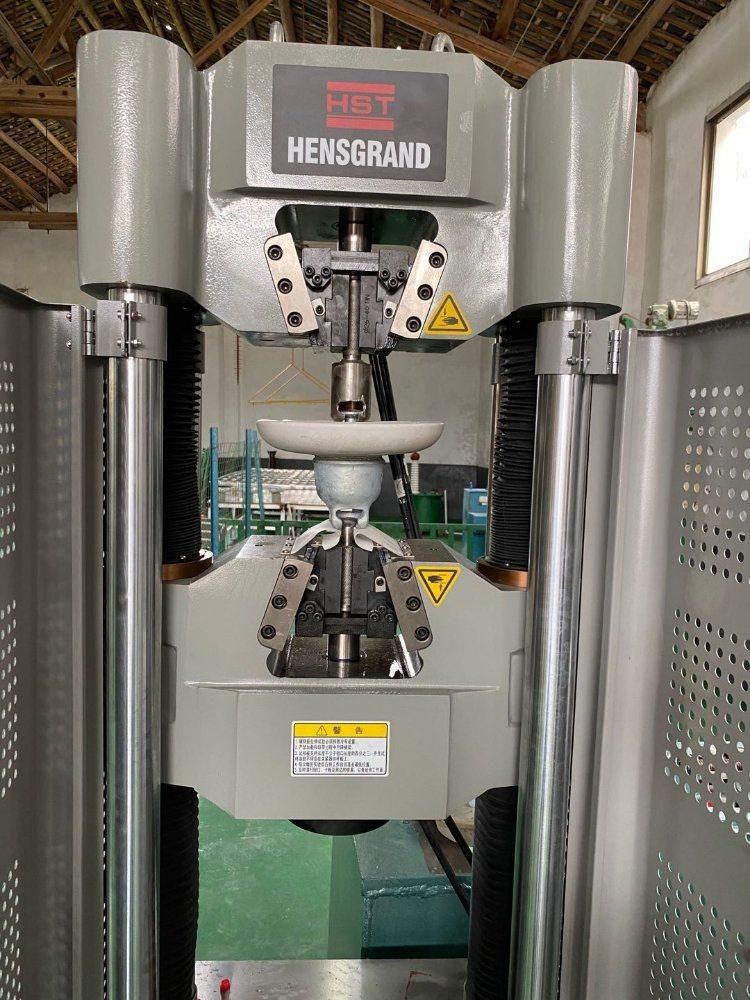

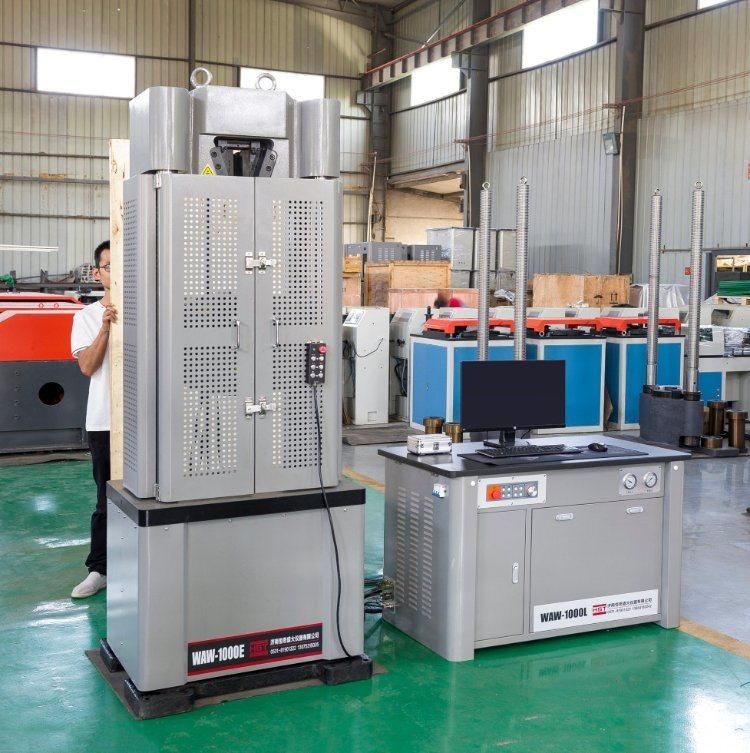

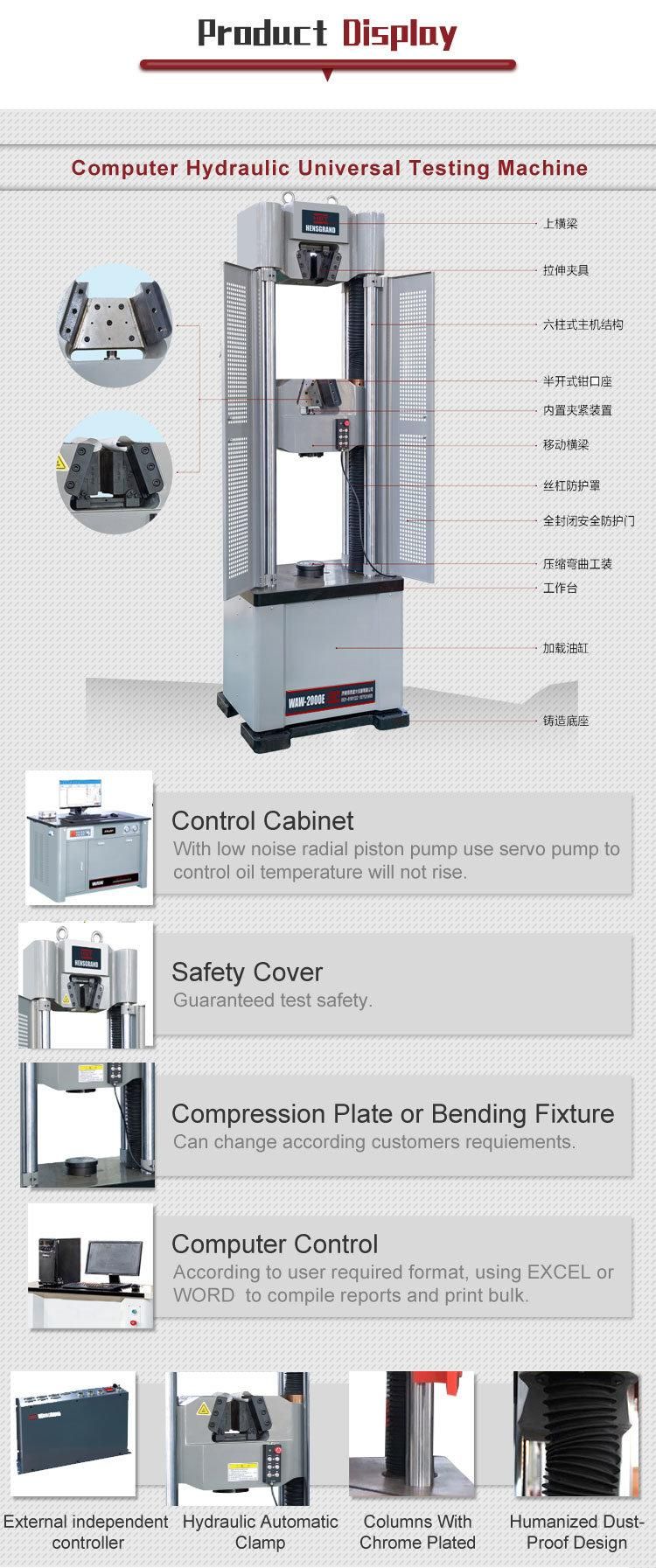

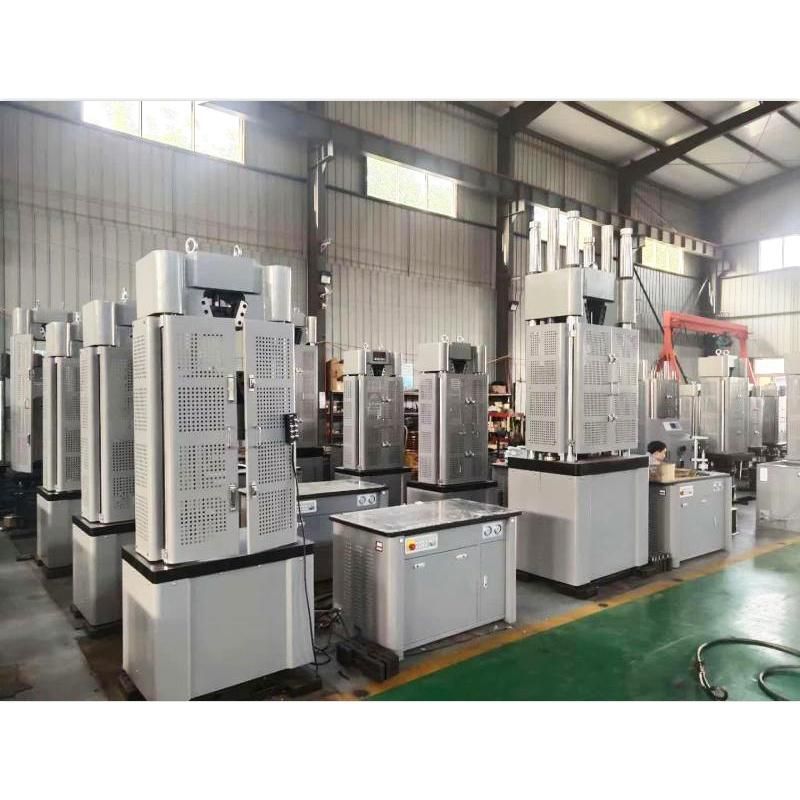

Machine in test show:

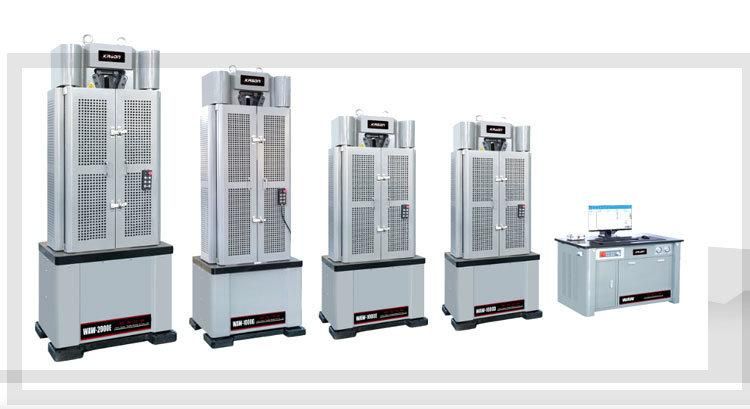

Dear Customer, we have Hydraulic universal testing machines from 300KN to 2000KN for choice.
