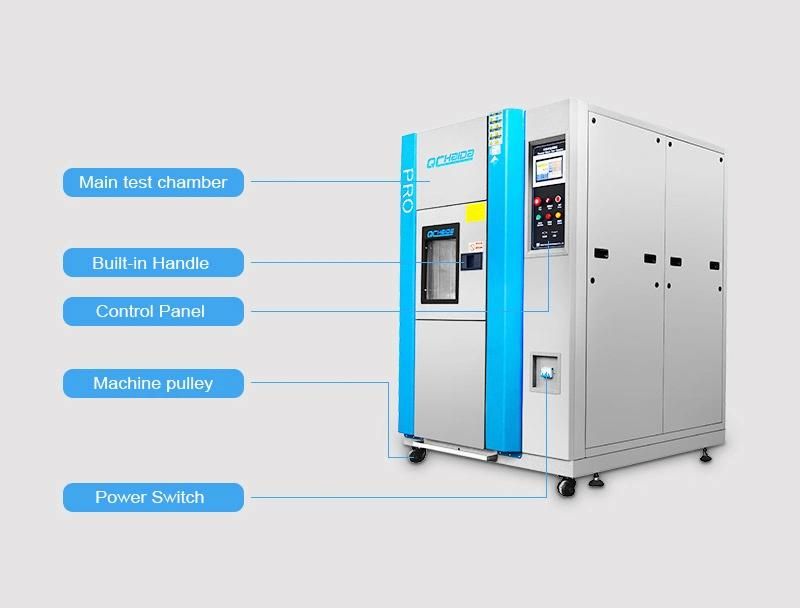

Electronic Laboratory Constant Temperature Humidity Thermal Shock Testing Chamber

Dongguan Haida Equipment Co., Ltd.
  • Type：Environmental Testing Chamber
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-E703
  • Control：PLC Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Product Name：Thermal Shock Test Chamber
  • Test Method：Pneumatic Operated Door Switch 3 Chambers
  • Inner Dimension (W*D*H)：500*450*450mm
  • External Dimension (W*D*H)：1380*1370*1980mm
  • Temperature Range：-40 ~ +80ºC
  • Temperature Deviation：±3ºC

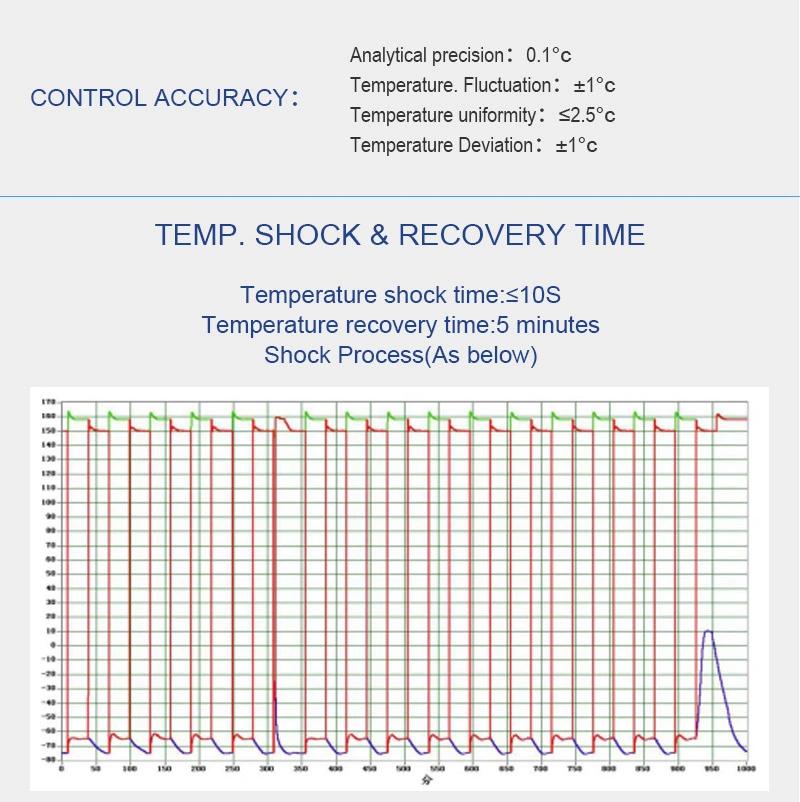

  • Thermal Recovery Time：Within 5 Minutes
  • Cooling Method：Air Cooling
  • Transport Package：Strong Wooden Case
  • Specification：MTL, IEC, JIS, GJB.
  • Trademark：HAIDA
  • Origin：Dongguan, China
  • Production Capacity：150 Sets,Month

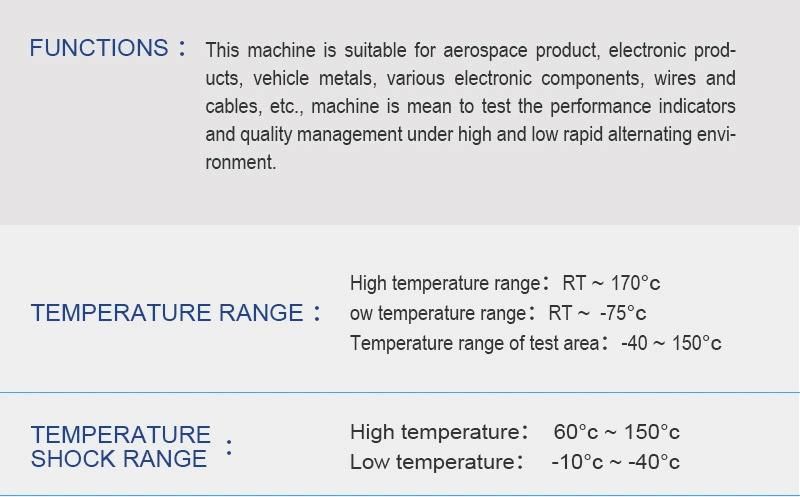

Description

Test methodPneumatic operated door switch 3 chambersInner dimension (W*D*H)500*450*450mmExternal dimension (W*D*H)1380*1370*1980mmTemperature range-40 ~ +80ºCHigh temperature chamber pre-heating range60 ~ 100ºCHeating speed+60→+100ºC about 10 minutesLow temperature chamber pre-cooling range-65 ~ 0Cooling speedAmbient →-65ºC about 65 minutesTemperature deviation±3ºCThermal recovery timeWithin 5 minutesExternal materialAntirust processing cold-rolled steel sheetInternal materialSUS#304 stainless steelThermal insulation materialPolyurethane foam and fiberglassCoolantR404A / R23Cooling methodAir coolingPressure0.2 - 0.5MpaPower supplyThree phase, 380V, 50HzElectronic Laboratory Constant Temperature Humidity Thermal Shock Testing ChamberElectronic Laboratory Constant Temperature Humidity Thermal Shock Testing ChamberElectronic Laboratory Constant Temperature Humidity Thermal Shock Testing Chamber

ADVANTAGE
1.TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
2.High-tech, low noise
3.Humanized industrial design, easy to place and transport
4.The world famous brand core precision components
5.Security protection system
6.Valid test trip length (modifiable)
7.3 seconds fast temperature change
8.2 chambers temperature conversion faster and save time
9.3 chambers in addition to a low temperature test , high temperature test, there can be done at room temperature test


Features:
  1. Perfect appearance and easy to operate.
  2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
  3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
  4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
  5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
  6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
  7. With RS-232C communication port for connecting PC to control, record and save test report.

High temperature chamber:
Heater: NI-CR alloy electric heater
Draught fan: Share centrifugal fan when high temperature and do environmental temperature, preheating with axial flow fan.

Low temperature chamber:
Cooler: Fin cooler, regenerator
Draught fan: centrifugal fan

Drive device:
Pneumatic cylinder: Drive the air door of high, environmental, low temperature
Air compressor: Provide the compressed air for driving pneumatic door (supplied by buyer)

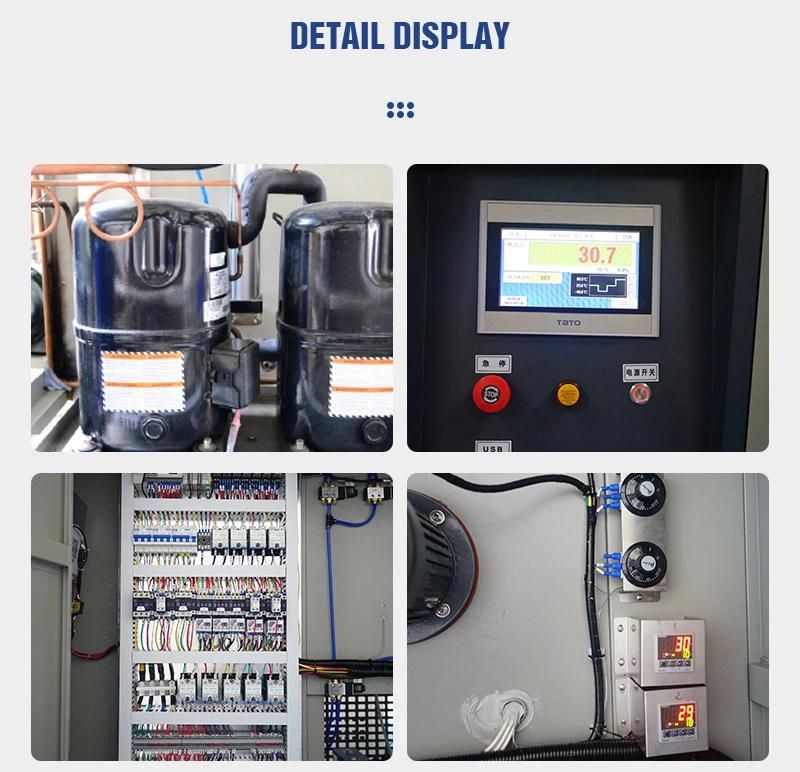

Refrigerating device:
Cooling method: mechanical compression refrigeration
Refrigeration compressor: Semi-closed piston
Refrigerant: R23/R404A
Condensation: Stainless steel welded plate heat exchanger

Controller:
Operate interface: 6" color LCD touch screen
Program memory capacity: 100 groups (modify by operator)
Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 999 cycles
Resolution: temperature: 0.01 ºC; time: 1 minute
Input: T thermocouple
Control method: P.I.D control

Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30ºC
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.

Safety devices:
Leakage and breaker, over temperature, low temperature protect device, exhaust valves, sample power control terminal, over temperature protection of high and low chamber, compressor over pressure, over heat protection, out of water relay, heat relay of fan, compressed air pressure switch, fuse, external alarm terminal
