GDZG-300 DC Hipot Test Set DC High Voltage Tester for Zinc Oxide Arrester/Generator/Transformer

HV Hipot Electric Co., Ltd.
  • Transport Package：Wooden Case
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan China

Base Info

  • Model NO.：GDZG-300
  • HS Code：9030339000
  • Production Capacity：1000PCS,Year

Description

Basic Info.

Model NO. GDZG-300 HS Code 9030339000 Production Capacity 1000PCS/Year

Product Description

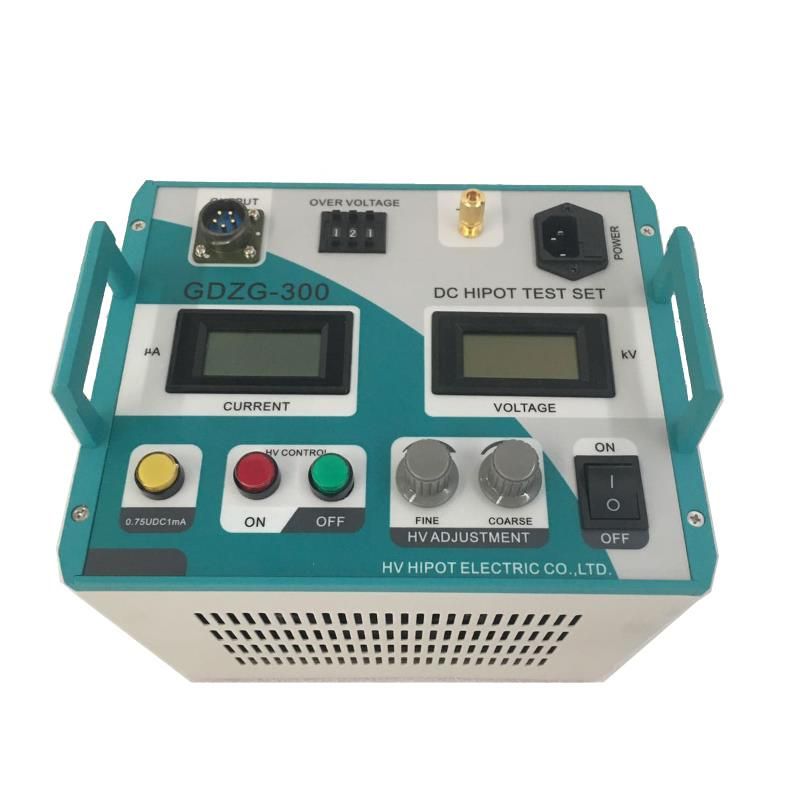

GDZG-300 DC Hipot Test Set DC High Voltage Tester for Zinc Oxide Arrester/Generator/Transformer

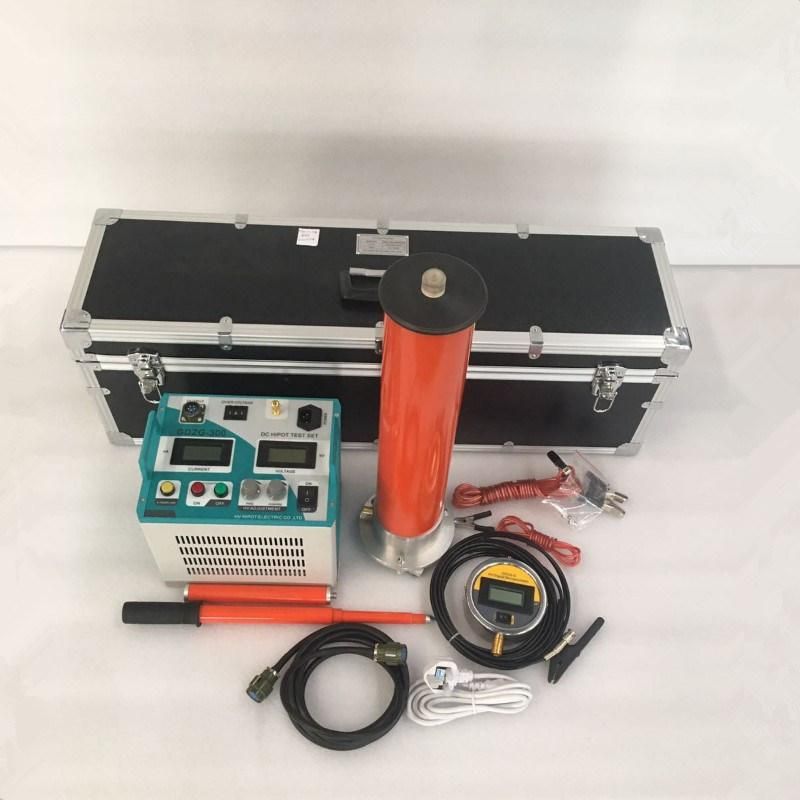

GDZG-300 DC Hipot Test Set DC High Voltage Tester for Zinc Oxide Arrester/Generator/Transformer
Product Description

GDZG-300 series of DC high voltage tester is testing DC high voltage for zinc oxide arrester, magnetic blowing arrester, power cables, generators, transformers, switches and other equipments, which is suitable for electric power branch, power department of factories, scientific research units, railway, chemical industry, power plants.

Features

  • With High Frequency Voltage-multiplying circuit and PWM pulse width modulation technology.
  • Higher voltage stability, smaller ripple coefficient.
  • 75% VDC 1mA function button, convenient for Zinc Oxide arrester test.
  • High precision,exact measure,figure display,with good anti-interference function.
  • High stabilization of voltage regulation and regulates voltage smoothly from zero.
  • With protection functions of over-voltage, over-current, returning-zero, ground.
  • Negative polarity output, zero-start, continuous adjustment.
  • Number dial switch for over-voltage set function, which can display voltage value clearly.


Specifications

Power supplyAC 220V±10%, 50Hz, single phase
Rated voltage60kV
Rated current5mA
Rated power consumption300W
Voltage meter accuracy1.0% of the reading ± 2digit
Current meter accuracy1.0% of the reading ± 2digit
Ripple factor≤1%
Voltage stabilityRandom fluctuation, when power supply voltage change±10%,≤1%
Over-load ability10mins @ No-load voltage is 110% of rated voltage
Max.charge current is 1.5 times of rated current
Working modeIntermittent use
Max. continuous time 30mins for one time
Working environment temperature -10ºC--40ºC
Relative humidity: ≤85%(at 25ºC, no condensation)

GDZG-300 DC Hipot Test Set DC High Voltage Tester for Zinc Oxide Arrester/Generator/Transformer
Company Profile

HV Hipot Electric Co., Ltd, located in Wuhan, China, is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.

We test for various kinds of electrical products, such as Transformers, Circuit Breakers, Surge Arresters, Generators, Insulators, Cables, Casings, GIS Systems, CT/ PTs, and Relays, etc.
