• Model NO.：PHCW-100
• Maxcapacity：>1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：3600 mm
• Width：600 mm
• Height：1300 mm
• Gross Weight：1200 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHCW-100 Maxcapacity >1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Needle Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Length 3600 mm Width 600 mm Height 1300 mm Gross Weight 1200 Kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

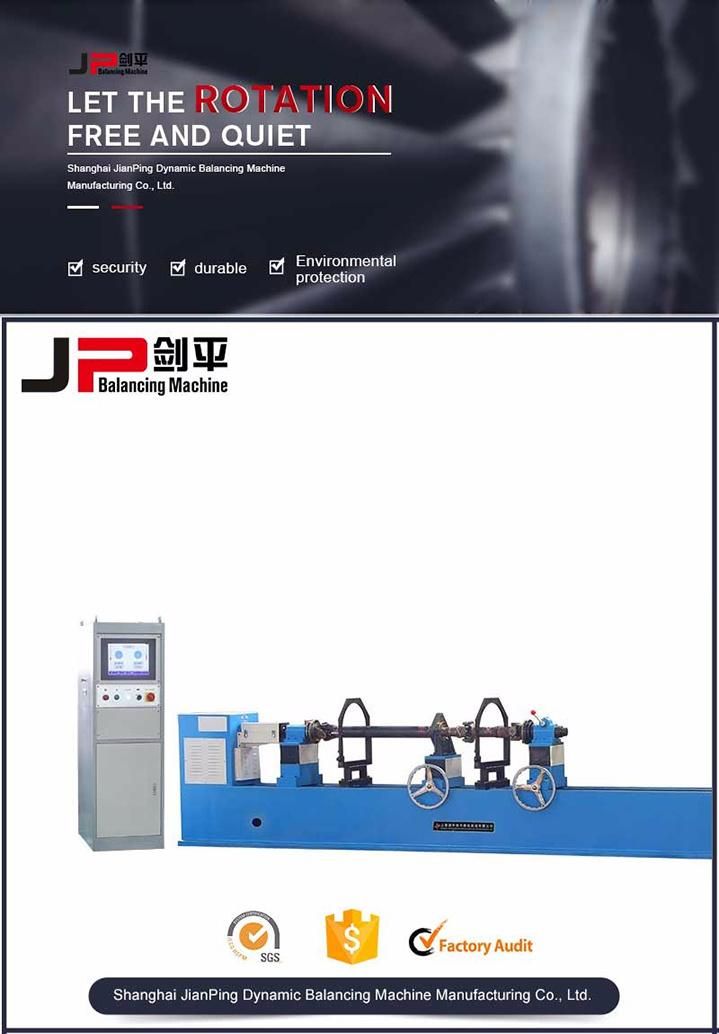

Jp Horizontal Balancing Machine for Cutter tool



Production Description

Specially designed brackets transmit mechanical force with high rigidity
Durable and reliable sensor possesses high sensitivity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Advanced electrical measuring system and friendly man-machine interface

Package and transport


Range of Application

This balancing machine is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output, small size, stable performance. Mainly used in the production and repair of all kinds drive shaft factories. With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost. It is an ideal device for shaft manufacturers and maintenance factories.

Delivery inspection


Special Features

The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.

Factory Outlook


Certificates


Production Parameters

Technical data at a glance	PHCW-100/200
Mass Scope of Workpiece(kg)	100/200
Max Diameter of Workpiece (mm)	Ø130
Max Length of Workpiece (mm)	2000
Rotation Speed of the Main Axis (r/min)	1600-3200/1200-3200
Motor Power (KW)	1.5(variable-frequency)
Min  Achievable  Residue Unbalance Amounte mar	5g. mm/kg
