• Model NO.：PHZS-30
• Loading Method：Static Load
• Display：Needle
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：1150 mm
• Width：1100 mm
• Height：1850 mm
• Gross Weight：450 Kg
• Number of Pieces：2 Pieces
• Colour：Jp Standard
• Delivery：Within 30 Days When Confirm The Order
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PHZS-30 Loading Method Static Load Display Needle Control Manual Control Weight 500-1000Kg Power Source AC380V Oil Cylinder Position Under Length 1150 mm Width 1100 mm Height 1850 mm Gross Weight 450 Kg Number of Pieces 2 Pieces Colour Jp Standard Delivery Within 30 Days When Confirm The Order Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/Month

Product Description

JP Special Balancing Machine for Shaker Balance Machine





Production Description

Specially designed brackets can effectively transmit mechanical force with low vibration damping
Durable and reliable sensor possesses high sensitivity and good linearity
Specially designed clamp offers higher precision and easier operation
Realistic imitation of the working station minimizes inaccuracy for global balancing
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application. Soft-bearing

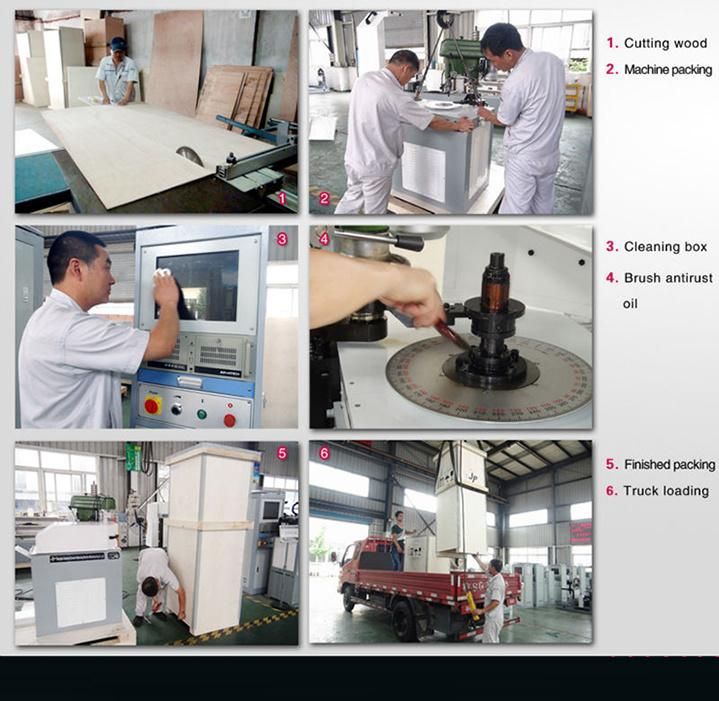

Package and transport

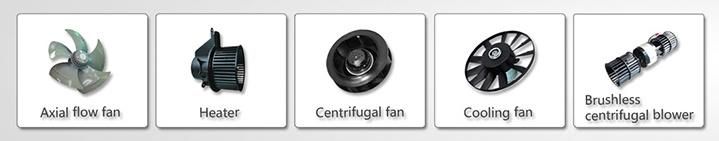

Range of Application

Global balancing is a newly-developed conceptation in recent years. Balancing Machine for Furnace Blower (PRZS-5) is also widely adopted in the balancing process of the machine tool spindles, motor assembly, coil fan, cooling fans, air-conditioner fans, fan heaters, range hood fan, Hard-Disk Drive of computers...Take full consideration of overall component's accuracy. To eliminate the unbalance amount caused by the bearings. Other parts and assembly errors so that improve products'quality

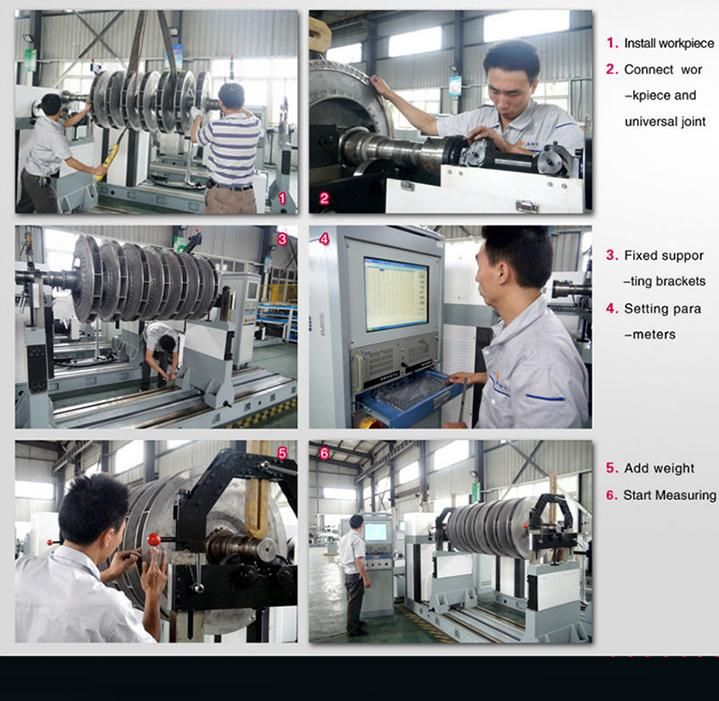

Workshop debugging



Design

Balancing Machine for Furnace Blower (PRZS-5) are well-designed mechanical module helps to do quick and precise balancing. Give more choices, Equip your optimal balancing device with less expense.

Special Features

It adopted soft bearing supporting frames system, with advantage of high precision, efficiency, customized special clamps can use quick chuck fastening, perfectly applied to the global balancing,

Certificates



Production Parameters

Technical data at a glance	PRZS-1.1/5
Mass Scope of Workpiece(kg)	1.1/5
Height of Workpiece (mm)	130/300
Min  Achievable  Residue Unbalance Amount   (emar)	5g. mm/kg
