• Model NO.：GW-082A
• Accuracy Grade：0.1 Deg
• Load Way：Plastic Melt Flow Index Testing Machine
• Loading Method：Static Load
• Display：Digital
• Control：PLC Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Plastic Melt Flow Index Testing Machine
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-082A
• Length of The Discharge Port：8.000+,-0.025mm
• Diameter of The Piston Rod Head：9.475+,-0.015mm
• Temperature Range：50---450 Deg
• Loaded Barrel Length：152+,-0.1mm
• Length of The Piston Rod Head：6.350+,-0.100mm
• Constant Temperature Accuracy：+,-0.2 Deg
• Testing Way：Plastic Flow Speed Tester
• Transport Package：Standard Export Safety Packing
• Specification：510x370x600cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. GW-082A Accuracy Grade 0.1 Deg Load Way Plastic Melt Flow Index Testing Machine Loading Method Static Load Display Digital Control PLC Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Plastic Melt Flow Index Testing Machine Packaging Wooden Case Export Markets Global Model No Gw-082A Length of The Discharge Port 8.000+/-0.025mm Diameter of The Piston Rod Head 9.475+/-0.015mm Temperature Range 50---450 Deg Loaded Barrel Length 152+/-0.1mm Length of The Piston Rod Head 6.350+/-0.100mm Constant Temperature Accuracy +/-0.2 Deg Testing Way Plastic Flow Speed Tester Transport Package Standard Export Safety Packing Specification 510x370x600cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Sets/Year

Product Description

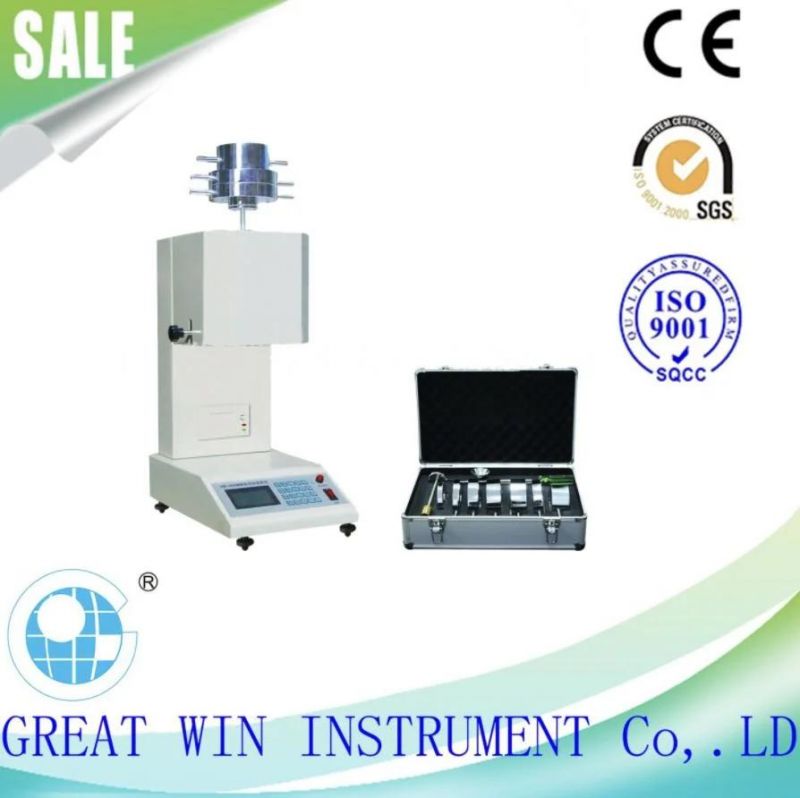

 Plastic Melt Flow Index Testing Machine (GW-082A)
  Product Summary:
Professioanl Plastic Melt Flow Index Tester polycarbonate (PC), nylon and engineering plastics Such as polyethylene (PE), polypropylene (PP), polyoxymethylene (POM), polystyrene (PS), ABS resin, Polycarbonatea lower melting temperature plastics such determination.
Applicable Industry:
Professioanl Plastic Melt Flow Index Tester widely used in the production of plastics, plasticProducts, petroleum and chemical industry and the universities, research institutes, commodity inspection Departments.

Meet Standard:
GB/T3682-2000, ASTM D1238-98, JB/T5456, ISO1133

Technical Specifications:

Discharge port diameter	Φ2.095±0.005mm
length of the discharge port	8.000±0.025mm
Loaded barrel diameter	Φ9.550±0.025mm
Loaded barrel length	152±0.1mm
Diameter of the piston rod head	9.475±0.015mm
Length of the piston rod head	6.350±0.100mm

temperature range	50---450°C
constant temperature accuracy	±0.2°C
resolution	0.1°C
power voltage	220V±10%   50Hz
work temperature and condition	temperature 10°C~40°C;humidity 30%~80 %;non-corrosive media on surrounding, properly installed and adjusted to the level on a solid foundation. No-strong air convection;Around no vibration, no strong magnetic interference
dimension	510×370×600
host weight	25kg

What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
