Automatic Insulating Oil Dielectric Strength Breakdown Detection Transformer Bdv Tester 80kv 100kv
Chongqing Fuootech Oil Purifier Technologies Co., Ltd.- Max Diameter of Workpiece：500mm
- Mass Scope of Workpiece：<900kg
- Type：Oil Dielectric Strength Tester
- Maxcapacity：80kv
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：FOT-I-100KV oil tester
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：37 Kgs Only
- Power Source：220VAC, 50Hz
- Oil Cylinder Position：Under
- Waveform Distortion：< 1%
- Measurement Accuracy：+-(2% Reading + 2 Words)
- Booster Capacity：1.5 kVA
- Output Voltage：80kv
- Boosting Speed：0.5 ~ 5.0 Kv,S (Adjustable)
- Breakdown Sensitivity：< 0.1 Kv
- Certificate：ISO, CE, IEC156, SGS
- Delivery Time：7 Days
- Net Weight：42 Kgs
- Transportation：by Sea, Air, Courier, etc.
- Static Set Time：15 Minutes (Adjustable)
- Booster Interval：5 Minutes (Adjustable)
- Booster：1 ~ 6 Times (Optional)
- Power：200W
- Product Type：Oil Test Set Insulating Oil Breakdown Voltage Dete
- Transport Package：in Standard Exportation Plywood Case
- Specification：420mm*400mm*380mm
- Trademark：FUOOTECH
- Origin：Chongqing, China
- HS Code：9030899090
- Production Capacity：1000 Units Per Month
Description
Features & Functions:
1. The instrument is controlled by single chip microcomputer with large capacity, and works stably and reliably;
2. The instrument is equipped with temperature, humidity and clock display functions,Customized infrared oil temperature measurement;
3. The instrument is equipped with a wide range of watchdog circuit to eliminate the phenomenon of dead machine;
4. Various operation options. Instrument built-in GB/IEC standard and customized operation, which can adapt to various choices of different users;

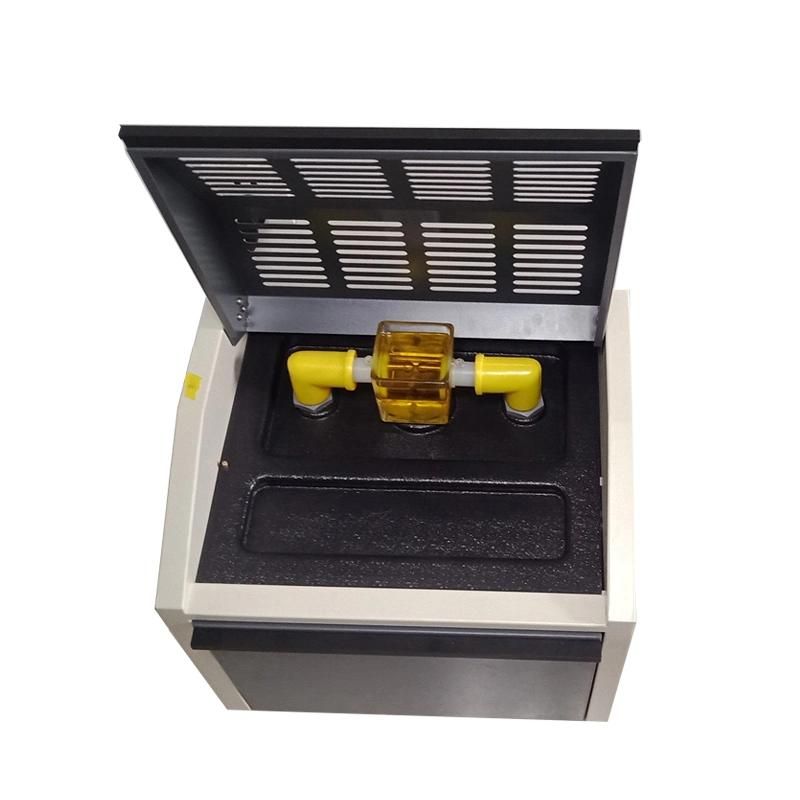

5. The instrument oil cup is cast and formed by special glass in one time, eliminating the occurrence of interference phenomena such as oil leakage;
6. The unique high-voltage sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding errors caused in the analog circuit and making the measurement results more accurate;
7. The instrument has internal protection functions such as over current, over voltage and short circuit, and has strong anti-interference ability and good electromagnetic compatibility;
8. Instrument self-analysis function, assist operator to judge sample oil;

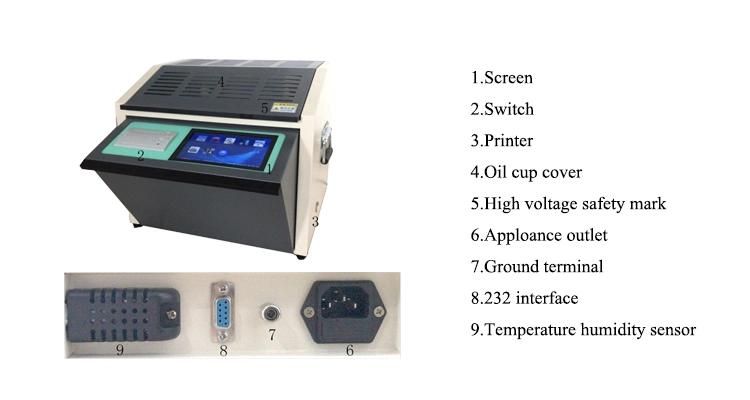

9. USB and RS232 interface;

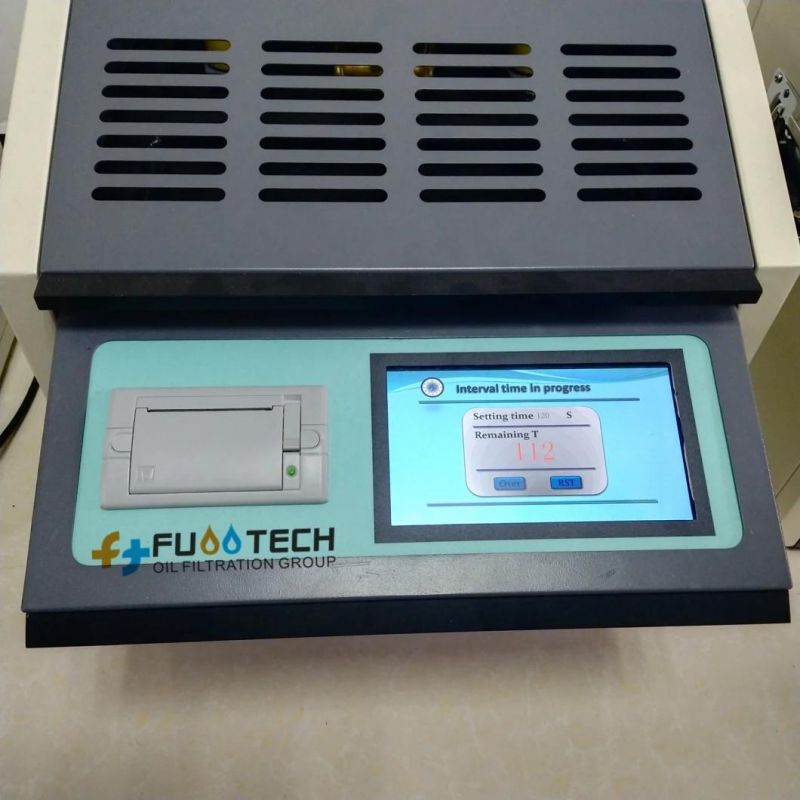

10. Large colorful touch screen;
11. Portable structure, easy to move, indoor and outdoor use is very convenient.
Insulation Transformer Oil Dielectric Strength Tester Parameter:
| Input voltage | AC 220V |
| Output voltage | AC 0~80KV |
| Voltage boosting speed | 0.5kV/s-5.0kV/s (Increment every 0.5)Ten gears optional |
| Accuracy degree | +-(2% reading + 2 words) |
| Number of times of continuous test | 1~9 |
| Standing time | 0-9 minutes 59 seconds |
| Data Volume | 100 groups |
| Electrode gap | Standard 2.5mm |
| Voltage withstands time | 1~10 minutes |
| Temperature: | 5~40ºC |
| Humidity | ≤80%RH |

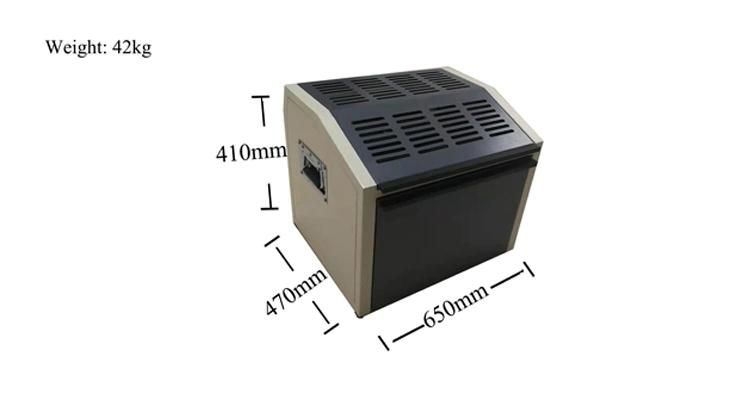

| Dimension | 650mm×470 mm×410 mm |
| Weight | 42KG |
