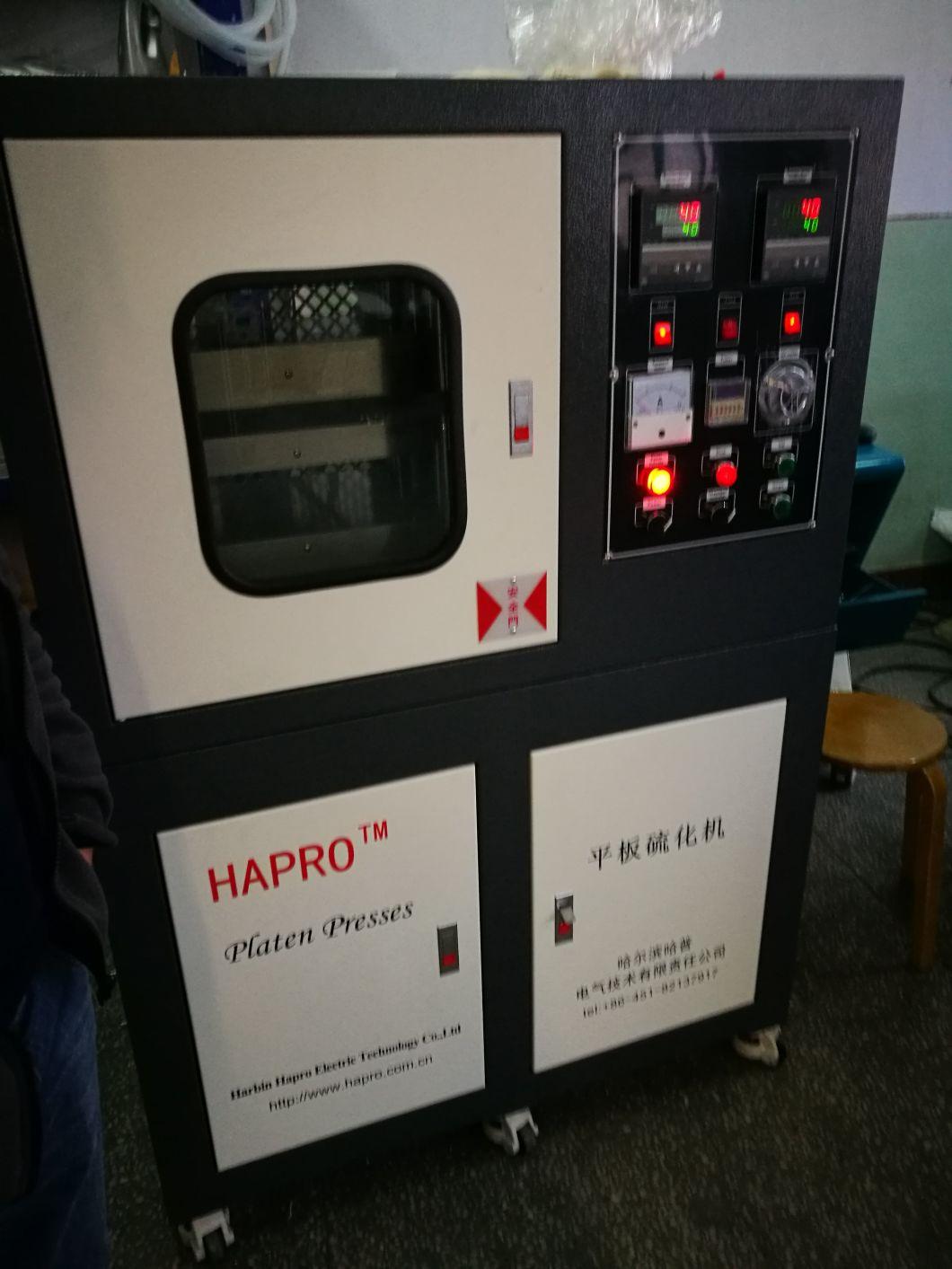

Laboratory Polymer Plate Vulcanizing Machine with Electric Heating

Harbin Hapro Electric Technology Co., Ltd.
  • After-sales Service：a Lifetime
  • Warranty：1 Year
  • Max Diameter of Workpiece：>3200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：500-1000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Size Heating Board：300*300mm
  • Size Cooling Board：300*300mm
  • Working Floors：2
  • Open Model：Auto
  • Accuracy Temperature：Less Than or Equal to 1.0 Deg;
  • Transport Package：Plywood
  • Trademark：Hapro
  • Origin：China
  • HS Code：8474809090
  • Production Capacity：100,Year

Description

 All pressure30T(adjustable)Temperatureroom temperature ~300ºCTemperature controllerLED show temperature valueHeating methodElectric heatingTotal power7 kWPower supply voltage3 phase , 380VCooling methodNature water coolingAccuracy between board±1ºCAccuracy temperature≤±1.0ºCDissipation heat≤±1.5ºCTimerLED 0~99(H)Size heating board300×300mmSize cooling board300×300mmWorking floors2Open modelautoDistance between board0~90mmRange of hydro cylinderMax. 250mmSpeed of hydro cylinder14mm/sMotor5 HPSafety partposition in the doorDimension (L×W×H)1550×1320×600mm
