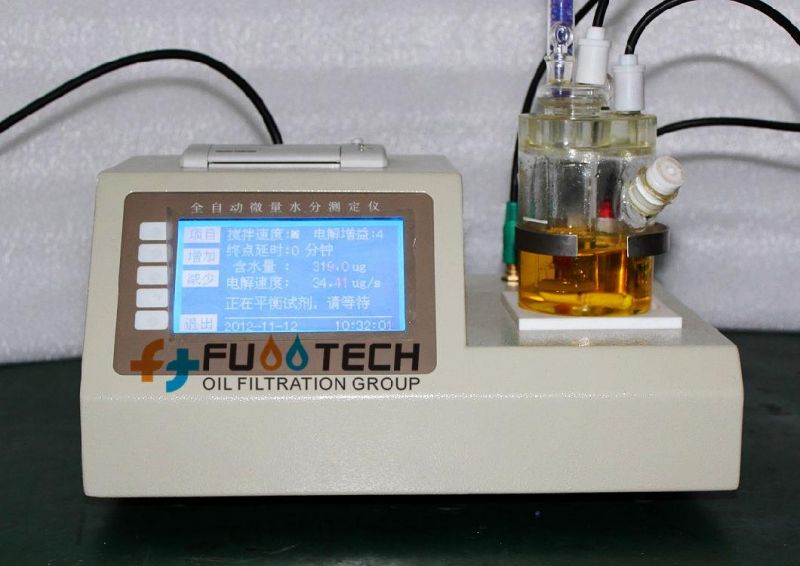

Professional Portable Transformer Liquid Oil Karl Fischer Digital Moisture Oil Water Dew Point Content Meter/Analyzer
Chongqing Fuootech Oil Purifier Technologies Co., Ltd.- After-sales Service：Online, Video, Call, Email Supports or on-Site
- Max Diameter of Workpiece：500mm
- Mass Scope of Workpiece：10 Kgs
- Type：Water Content Tester
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：FTWS-809 oil water content tester
- Display：Digital
- Control：Computer Control
- Weight：7 Kgs
- Power Source：220VAC, 50Hz
- Oil Cylinder Position：Under
- Test Method：Karl Fischer Coulometric Titrator Principle
- Measuring Range：0ug ~ 200mg
- Resolution：0.1ug
- Electrolytic Current Control：0~400mA Automatic Control
- Largest Power：<40W
- Net Weight：5.5 Kgs
- Certificate：CE, ISO, IEC
- Delivery Time：7 Days
- Screem：LCD Display
- Test Standard：GB,T7600-1987 Coulomb Method
- Warranty Period：1 Year
- Technical Support：Online Call, Message, Email, Field Training
- RS232 Interface：Computer Connection Available

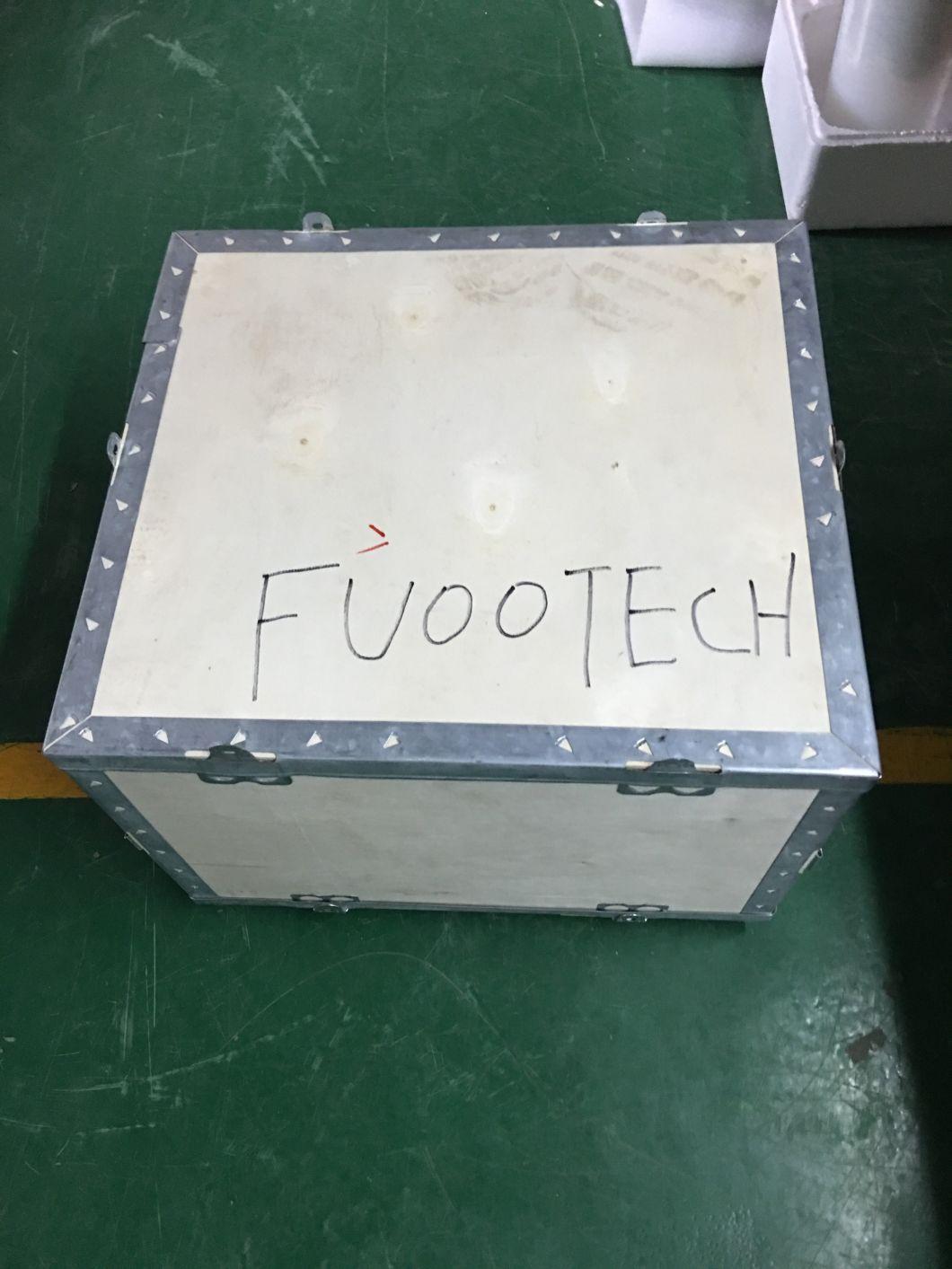

- Transport Package：in Standard Exportation Plywood Case
- Specification：350*300*165 mm
- Trademark：FUOOTECH
- Origin：Chongqing, China
- HS Code：9027809900
- Production Capacity：3000 Sets,Month
Description
General electrical parameters
Measuring range: 0ug~200mg
Resolution:0.1ug H2O
Maximum electrolysis speed: 40ug/s
Power supply: AC 220V ±10%,50Hz
Maximum power consumption: 30W
Environment temperature: 10~35ºC
Humidity: ≤85%
Dimension:320×240×150(mm)
Weight:5kg
1. Titration method: Coulometric titration(Coulomb analysis)
2. Display: Color LCD touch screen
3. Electrolytic current control: 0~400mA automatic control
