• Model NO.：HD-F750-2
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Operation：Easy to Operate
• Capacity：200kg
• Unit：Kg, N, Lb
• Max Stroke：500mm
• Low Plate：0×500mm,Min
• Test Speed：200mm
• Motor：Servo Motor
• Dimension：790×590×1010mm
• Power：Single Phase, 220V, 50Hz
• Transport Package：Strong Case
• Specification：ASTM
• Trademark：Haida
• Origin：Dongguan
• HS Code：9024
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. HD-F750-2 Control Computer Control Weight 100-500Kg Power Source AC220V Operation Easy to Operate Capacity 200kg Unit Kg, N, Lb Max Stroke 500mm Low Plate 0×500mm/Min Test Speed 200mm Motor Servo Motor Dimension 790×590×1010mm Power Single Phase, 220V, 50Hz Transport Package Strong Case Specification ASTM Trademark Haida Origin Dongguan HS Code 9024 Production Capacity 30 Sets Per Month

Product Description

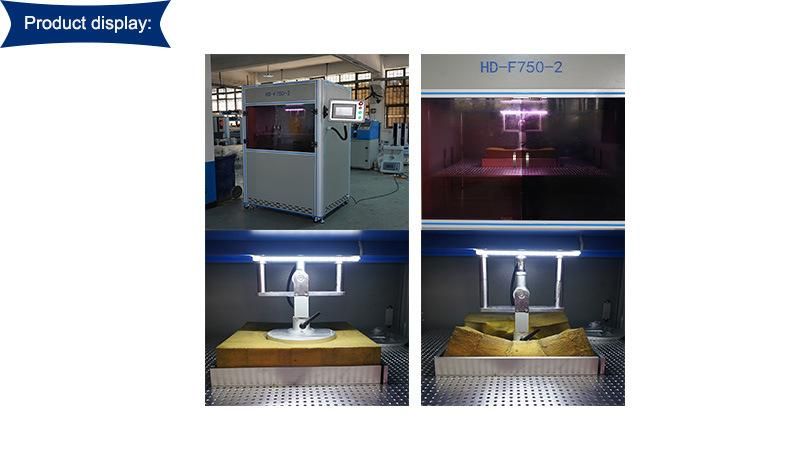

Laboratory ASTM D3574 Foam Compression Fatigue Test Equipment
Introduction:
Foams Compression Fatigue Test Machine is suitable for testing the compressive indentation hardness of porous elastic materials such as sponge and foam.

Operation:
The specimen is placed under the pressure plate, which compresses the specimen at the specified speed until the concave degree required by the national standard. The load cell feeds the pressure back to the computer, which handles and displays it, and then measures the indentation hardness of the sponge, foam and other materials.At a specified speed until a concave surface is required by the national standard, the load cell feeds the pressure back to the computer, which processes and displays it, and then measures the indentation.

Specification:

Control and display	Computer
Sensor	Load cell
Capacity	200KG
Unit	Kg, N, LB
Up plate	Diameter 200mm, bottom fillet R1mm
Low plate	420×420mm, holes diameter 6mm, space 20mm
Max stroke	500mm
Test speed	0~500mm/min
Motor	Servo motor
Driver	Taiwan high precision ball screw
Power	Single phase, 220V, 50Hz
Weight	160KG
Dimension	790×590×1010mm
Accessories	One computer with software

The above parameters are machine standard parameters and can be customized according to your requirements


Company Profile About Haida


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
