• Model NO.：HZJY-5K-I
• Weight：0-100Kg
• Power Source：AC220V
• Power：Electronic
• Model Number：Hzjy-5K-II
• Test Usage：High Voltage Testing Machine
• Language：English
• Max Reading：9999
• Interface：RS-232c
• Power Supply Voltage：198VAC~240VAC
• Frequency：50Hz
• Output Voltage：1V~1000VDC
• Product Warranty：1 Year

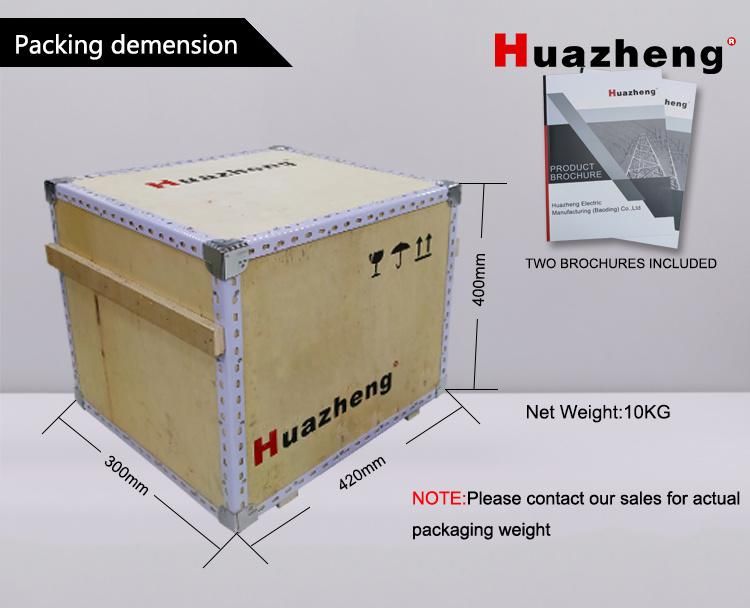

• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030332000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZJY-5K-I Weight 0-100Kg Power Source AC220V Power Electronic Model Number Hzjy-5K-II Test Usage High Voltage Testing Machine Language English Max Reading 9999 Interface RS-232c Power Supply Voltage 198VAC~240VAC Frequency 50Hz Output Voltage 1V~1000VDC Product Warranty 1 Year Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030332000 Production Capacity 100 PCS/Month

Product Description

China Factory Insulation Resistance Tester High Resistance Meter Digital MegohmmeterI.Introdution:

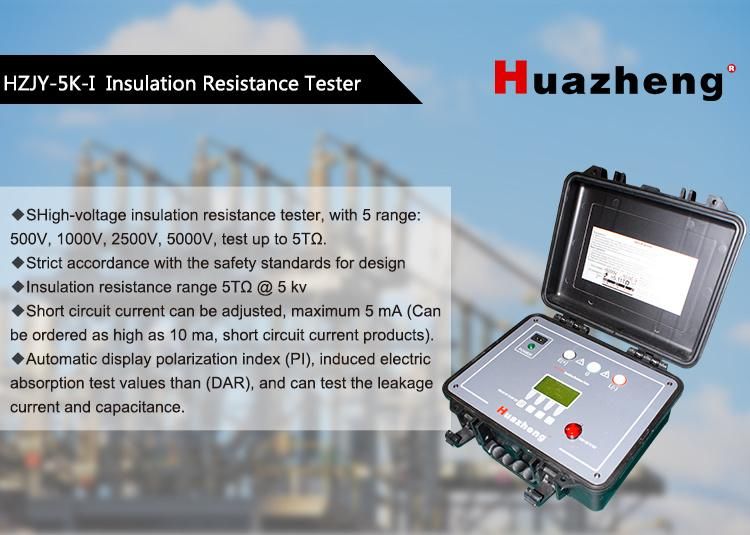

High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, test up to 5TΩ.
Strict accordance with the safety standards for design
Insulation resistance range 5TΩ @ 5 kv
Short circuit current can be adjusted, maximum 5 mA (Can be ordered as high as 10 ma, short circuit current products).
Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.
Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.
Capacitive discharge rapidly, cable test, no need manual discharge, instruments and automatic discharge quickly.
2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (5000V @ 100MΩ).
Insulation resistance simulation column.
Digital filtering functions, external influence deviation display value causing mitigation point using filter function.
Perfect protection function, and the spare fuse prompt functions.


II.Parameter:

range accuracy	500V	1000V	2500V	5000V
Unspecified	<100k	<100k	<100k	<100k
5%	100k-10G	100k-20G	100k-100G	100k-100G
20%	10G -100G	20G-200G	100G-1T	100G-1T
Unspecified	> 100G	> 200G	> 1T	> 1T

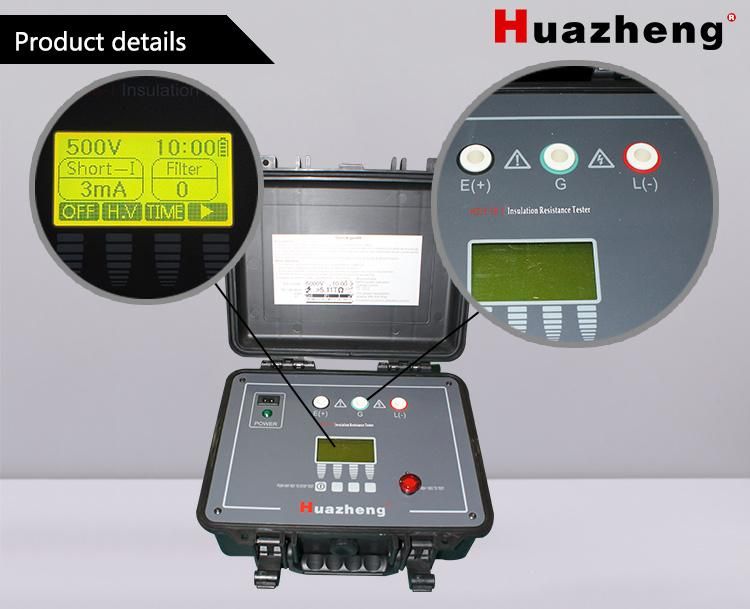

III.Detailed Photos




IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

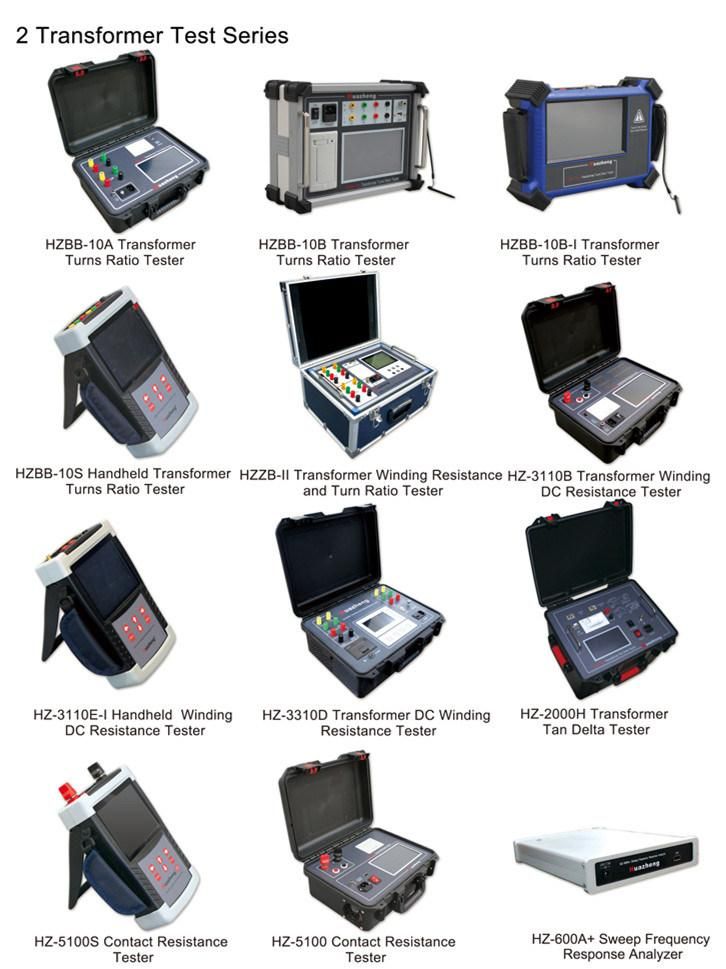

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
