• Model NO.：HZZL-3
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Name：Automatic Interfacial Tension Tester
• Measuring Range：0-200mn,M
• Accuracy：0.1%( Test Result)±0.1 Mn,M
• Mains Voltage：AC220V±20% 50Hz±10%
• Maximum Power Dissipation：20W
• MOQ：1

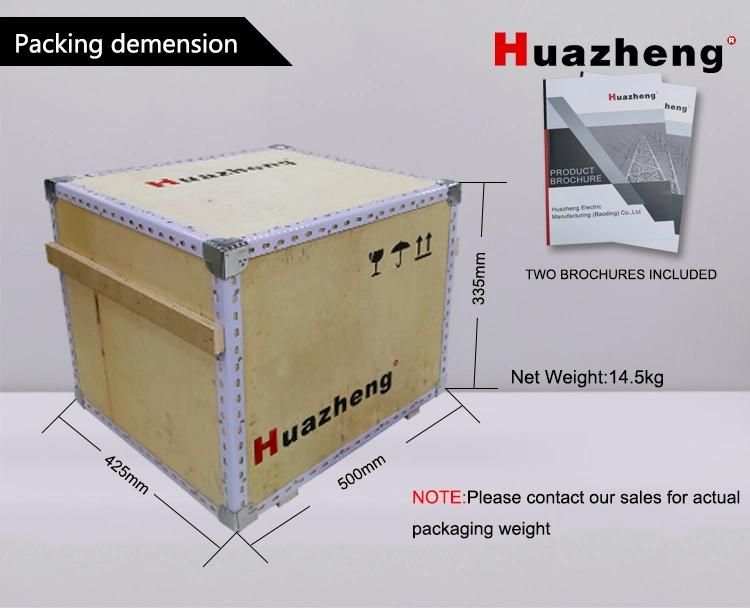

• Transport Package：Wooden Box with Foam Inside

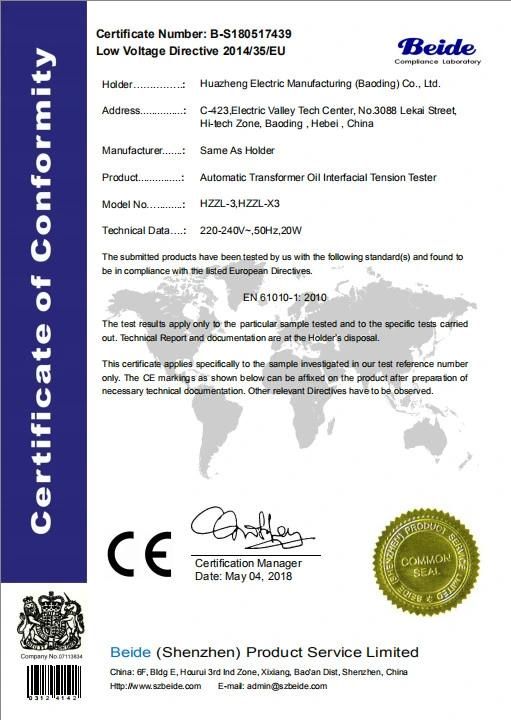

• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9024109000
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. HZZL-3 Control Computer Control Weight 0-100Kg Power Source AC220V Name Automatic Interfacial Tension Tester Measuring Range 0-200mn/M Accuracy 0.1%( Test Result)±0.1 Mn/M Mains Voltage AC220V±20% 50Hz±10% Maximum Power Dissipation 20W MOQ 1 Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9024109000 Production Capacity 1000 PCS/Month

Product Description

oil surface tension interfacial tension test equipment inter facical tester


I.Introduction

Intermolecular Forces formed liquid surface tension.Numbers of tension reflect on liquid sample's physics and chemical properties, it is one of the most important index to product quality. HZZL-3 automatic tension tester apply to GB/T6541,it can test kinds of liquid surface tension and boundary surface tesion.this method sample and accuracy,so it's used widely.


II.Function

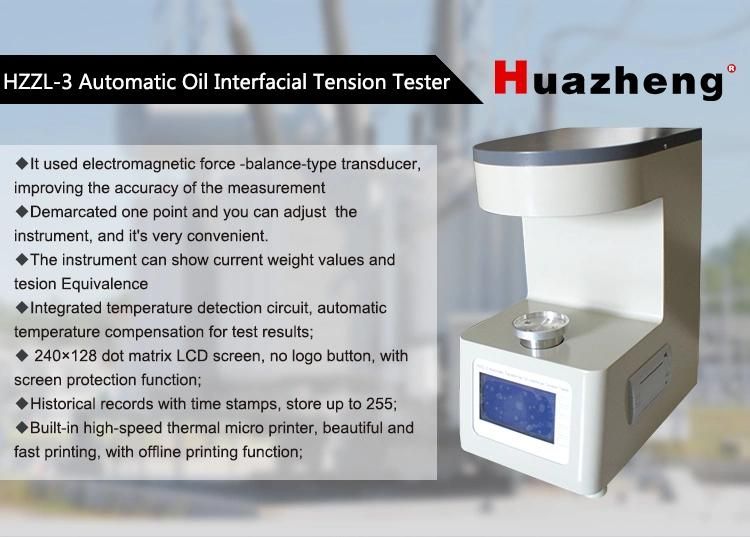

It used electromagnetic force -balance-type transducer, improving the accuracy of the measurement
Demarcated one point and you can adjust the instrument, and it's very convenient.

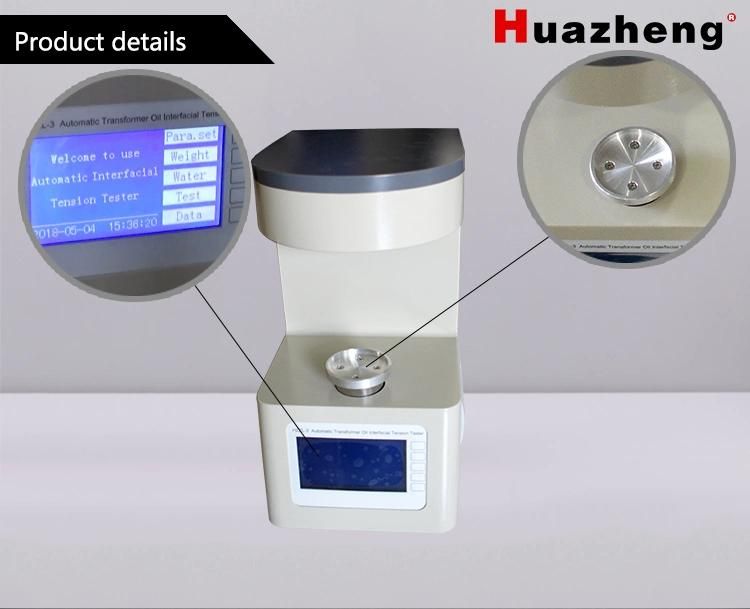

The instrument can show current weight values and tesion Equivalence
The instrument can revise the test result Automatly
Used high-quality screen,the life of screen extended
The instrument can storage 255 records
The instrument has a mini- printer,you can print the test result any time.
The instrument has RS232 interface equipment,it can connect to computer,and it convenient for data processing.

III.Specifications


Measuring range:0-200mN/m

Accuracy:0.1%( test result)±0.1 mN/m

Precisio: 0.1mN/m

Sensibili: 0.1mN/m

Mains voltage: AC220V±20%  50HZ±10%

Maximum power dissipation:20W

Suit ambient temperature: 10~30ºC(25ºCthe best)

Suit  ambient  humidity:  ≤85% RH

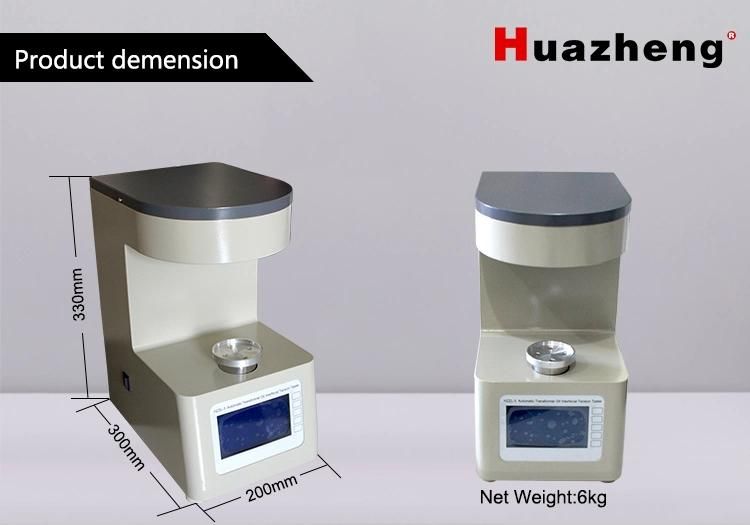

Overall  dimensions: 200×300×330(mm)

Weight:6kg

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
