ASTM D1653 Water Vapor Transmission Rate Tester for Plastic Film Barrier Materials
Pubtester Instruments Co., Ltd.- After-sales Service：12 Months
- Warranty：12 Months
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Specimen Thickness：3mm
Base Info
- Model NO.：WVTR-W6
- Specimen Size：74mm
- Test Range：0.1~2,500 G,M2·24h (Desiccant Method)
- Number of Specimens：1-6
- Trademark：Pubtester
- Origin：China
Description
90Kg
Note 1: Refers to the relative humidity on both sides of the film, the humidity in the test chamber is 10%RH-30%RH.
Note 2: Refers to the relative humidity on both sides of the film, the humidity in the test chamber is as follows:
Temperature:15ºC-40ºC,Humidity:10%RH-98%RH
Temperature:45ºC, Humidity:10%RH-90%RH
Temperature:50ºC, Humidity:10%RH-80%RH
Temperature:55ºC, Humidity:10%RH-70%RH
Standards
ASTM E96, ASTM D1653, GB 1037, GB/T 16928, YY/T0471, TAPPI T464, ISO 2528, JIS Z0208, YBB 00092003
Configuration
Standard configuration: Instrument, Professional Software, Test Dishes, Desiccant Tube, Automatic Moisture Filter, Standard Weight, Communication Cable, Round Sample Cutter, Valve Set and Reference Film
Optional configuration: Air Compressor, Desiccant, GMP software
Note:
1. The gas supply port of the instrument is Φ6 mm PU tubing;
2. Customers will need to prepare for gas supply and distilled water.
About Us
Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China.
In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019.

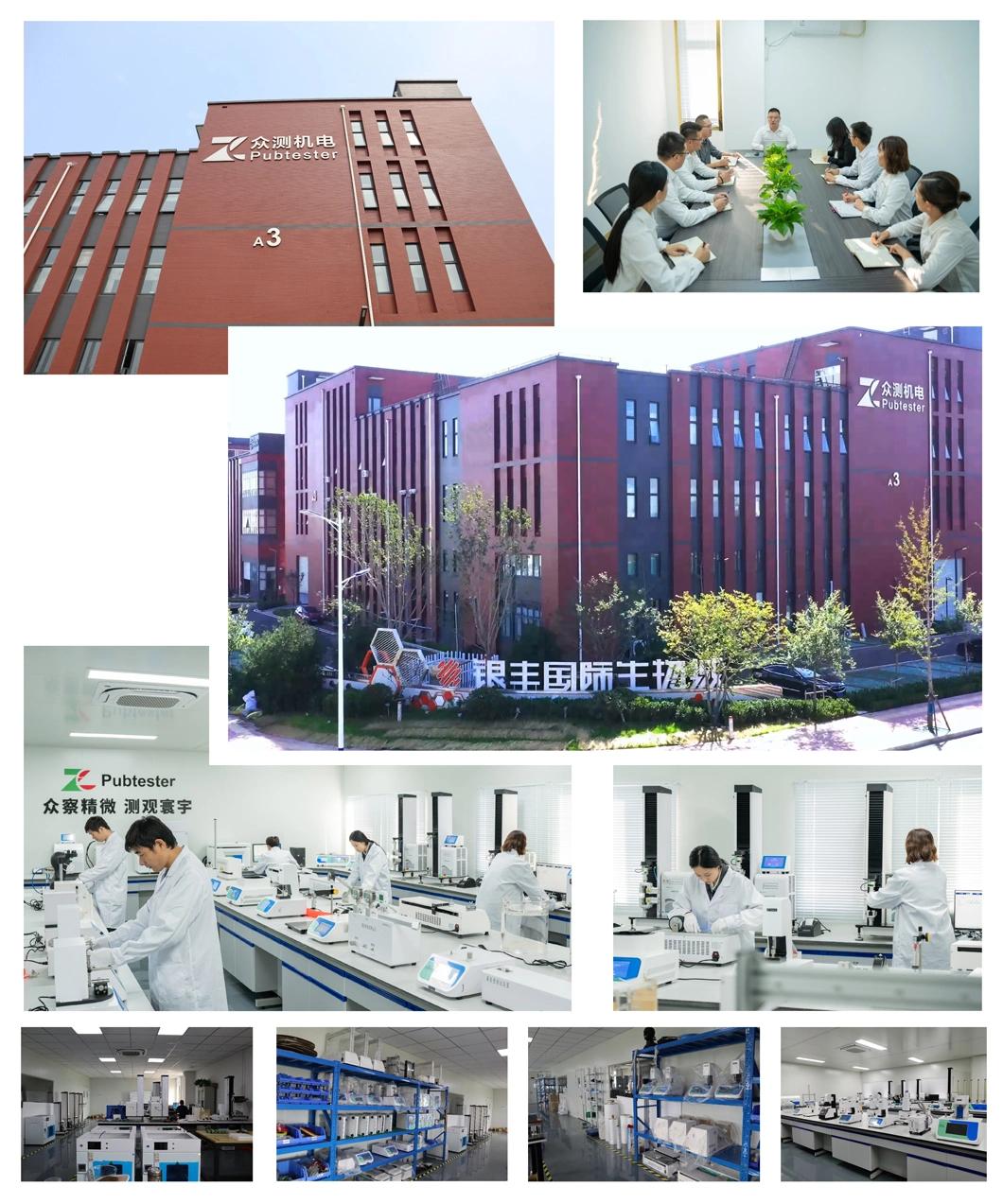

Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers.
