• Model NO.：HJ-66
• Loading Method：Static Load
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• X-Axis Movement Range：0-300mm
• Y-Axis Movement Range：0-300mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-66 Loading Method Static Load Display Digital Weight 0-100Kg Power Source AC220V X-Axis Movement Range 0-300mm Y-Axis Movement Range 0-300mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Equipment use:

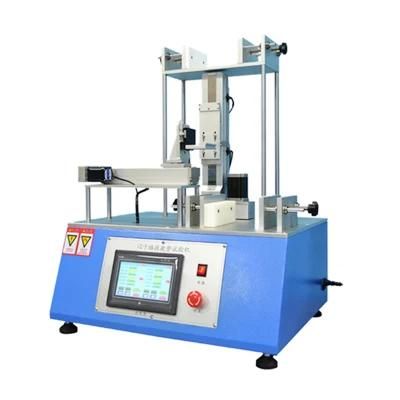

The touch screen click scribing testing machine developed and manufactured by our company is a high-tech product integrating precision machinery and automatic control scribing. This machine is mainly used for the durability test of drawing, clicking and rubbing on the handwriting screen and touch screen of small consumer electronic products such as mobile phones, dialogue phones, and electronic dictionaries. This product has the advantages of strong function, simple programming, convenient operation and low price.

 Features:
1. Motion trajectory and test: convenient function of coordinate finding point, only need to select any three points in the program to generate circle, triangle and other motion trajectories, any two points to draw a line, any four points to draw a rectangle, and according to the test The mobile phone specifications store the movement track for the next call;
2. Using stepper motor with linear guide and ball screw as motion mechanism, accurate positioning, high precision, low noise, precise and durable, etc.
3. Real-time display of current X, Y coordinate values, motor drive speed, real-time position changes, etc.;
4. The machine is made of high-rigidity aluminum with anodized surface, which is rich in texture.
5. The XY axis is driven by a stepping motor, driven by a ball screw, high-speed, low-noise, and durable;


X-axis movement range	0~300mm
Y-axis movement range	0~300mm
Click on the cylinder stroke	0~15mm
Positioning accuracy	0.05mm
Moving speed	30-3000mm/min
Pressure range	0~800gf
Volume	750 x 600 x 450mm
Weight	80kg
Power supply	AC220V

  FAQ    1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair.

2..What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
