• Model NO.：HD-A510-2
• Power Source：AC220V
• Measuring Range：(1~48)J
• Power：AC220V±10%, 2A, 50Hz
• Quality：High
• Outside Dimension (L*W*H)：800*500*750 Mm
• Temperature Range：Temperature: 5~35°c;
• Humidity Range：Relative Humidity: ≤85%
• Delivery Time：15 Days After Receive The Deposit
• Price：Reasonable
• Pointer Friction：<0.25j
• Warranty：One Year
• Transport Package：Strong Wooden Case
• Specification：GB2679-7
• Trademark：HAIDA
• Origin：China
• HS Code：9024800000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. HD-A510-2 Power Source AC220V Measuring Range (1~48)J Power AC220V±10%, 2A, 50Hz Quality High Outside Dimension (L*W*H) 800*500*750 Mm Temperature Range Temperature: 5~35°c; Humidity Range Relative Humidity: ≤85% Delivery Time 15 Days After Receive The Deposit Price Reasonable Pointer Friction <0.25j Warranty One Year Transport Package Strong Wooden Case Specification GB2679-7 Trademark HAIDA Origin China HS Code 9024800000 Production Capacity 1000PCS/Year

Product Description

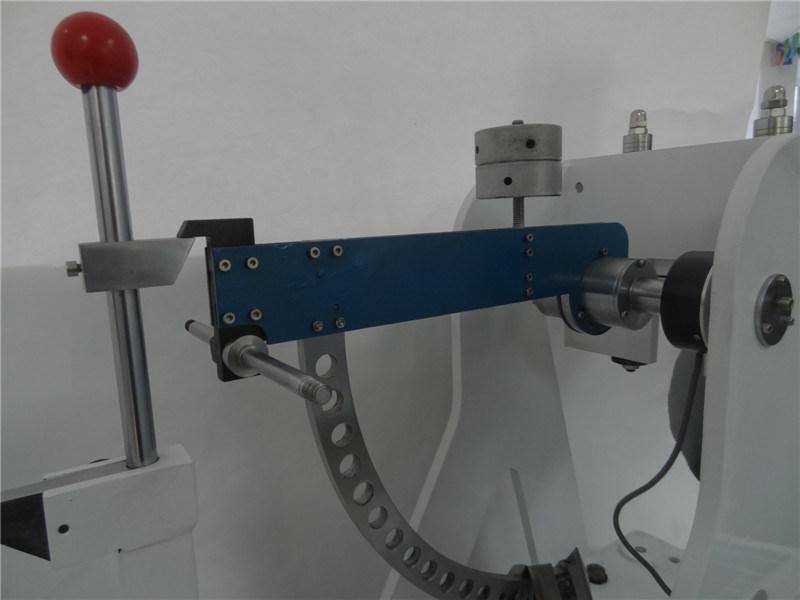

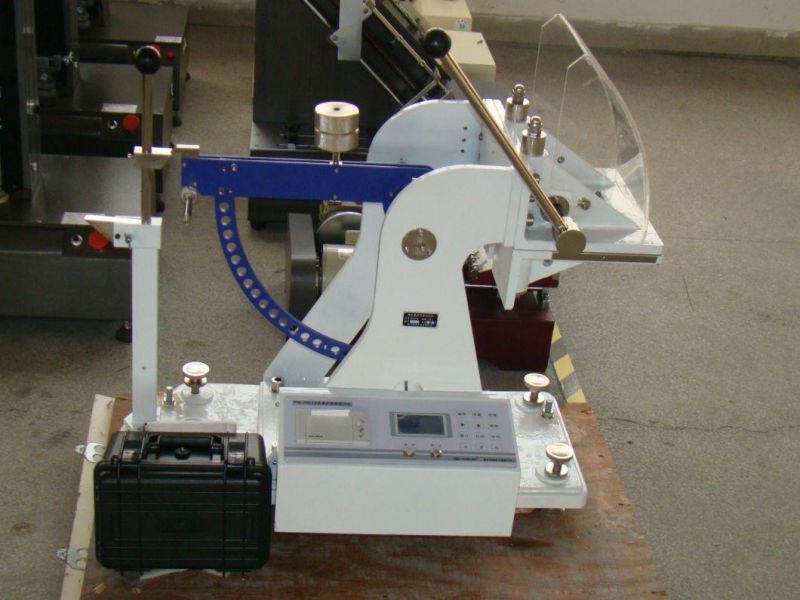

                                                         Digital Type Paper Puncture Test Equipment


Paper Puncture Test Equipmentis applicable to testing the puncture resistance strength of all kinds of corrugated cardboard.

Paper Puncture Test Equipment
Its parameter conforms to the related regulation.
It has the characteristics of swift compaction, handle resetting automatically and safety protection, the testing result is high precise and reliable. Also, it has the function of calculation, and can print the testing quantitative data and average value. It is a dispensable equipment of paper-making factory, research and quality supervision department.

Main features:
(1) Computer-controlled technology, open structure, high automation procedures, simple and convenient operation, safe and reliable.
(2) Automatic measurement, intelligent judgement, real time display of clamping pressure for sample by operation system.
(3) Automatically measure, count, print the test results, and data can be stored.
(4) Micro-high-speed thermal printer, high-speed print, low noise, no need for ink and ribbons, and it is easy to use and has low failure rate.
(5) Modern design concept of electro-mechanical integration, it has compact structure, elegant appearance and convenient maintenance.

The main technical parameters:

Measuring Range	(1~48)J
Indication Error	Ruler A: ± 0.05J; Ruler B: ± 0.1J; Ruler C: ± 0.2J; Ruler D: ± 0.5J (within the limit range 20%~80% at each measurement)
Pointer Friction	< 0.25J
Pendulum Shaft Friction and Air Resistance	> 120 times ( Measured by the swing frequency of arm swing)
Triangular Pyramid	Side Length: 60× 60× 60 mm; Height: 25± 0.7 mm; edge fillet Radius: 1.5± 0.1 mm
Outside Dimension (L× W× H)	800× 500× 750 mm
Work Environment	Temperature: 5~35° C; Relative Humidity: ≤ 85%
Power	AC220V± 10%, 2A, 50Hz
Weight	Appro. 140Kg
