Electronic Steel Wire Tensile Strength Testing Machine (HD-B611-S)

Dongguan Haida Equipment Co., Ltd.
  • Type：Tensile Testing Machine
  • Maxcapacity：10t
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-B616
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Control and Display：Computer
  • Max Capacity：5000kg
  • Sensor：Celtron Load Cell
  • Unit (Switchable)：N.Kg, Kn, Lb.MPa
  • Accuracy：±0.5%
  • Resolution：1,250, 000
  • Warranty：One Year
  • Delivery Time：15 Days After Receive The Order
  • Max. Stroke：1000mm (Including Fixture)
  • Test Speed：0.1-300mm,Min (Adjustable )
  • Transport Package：Strong Wooden Case
  • Specification：GB,T16491; GB,T1040; GB,T1041; GB,T8804.1-2; GB,T8
  • Trademark：Haida
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ItemDescriptionMax. Force10T (100KN)Load cellGermany brand load cell for high accuracyControl system PC with windows 7 systemMotorPanasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rodForce reading kgf, Ibf, N, KN, T etcStoke1100mm including fixtureLoad cell Resolution1/250,000Load Precisionwithin ±0.5%Test speed0.01~300mm/min (adjustable)Software TM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat

Features of Steel Wire Tensile Strength Testing Machine:

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.

3. Data transmission: RS232.

4. Displacement resolution: 0.001mm.

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

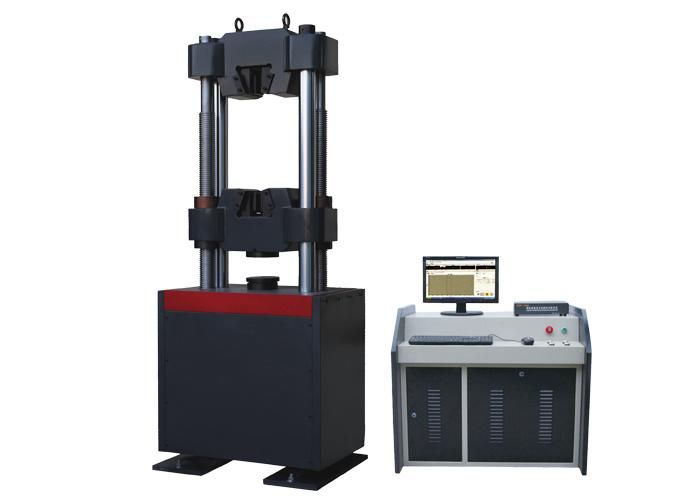

Steel Wire Tensile Strength Testing Machine view:

Electronic Steel Wire Tensile Strength Testing Machine (HD-B611-S)
Electronic Steel Wire Tensile Strength Testing Machine (HD-B611-S)

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.



3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
