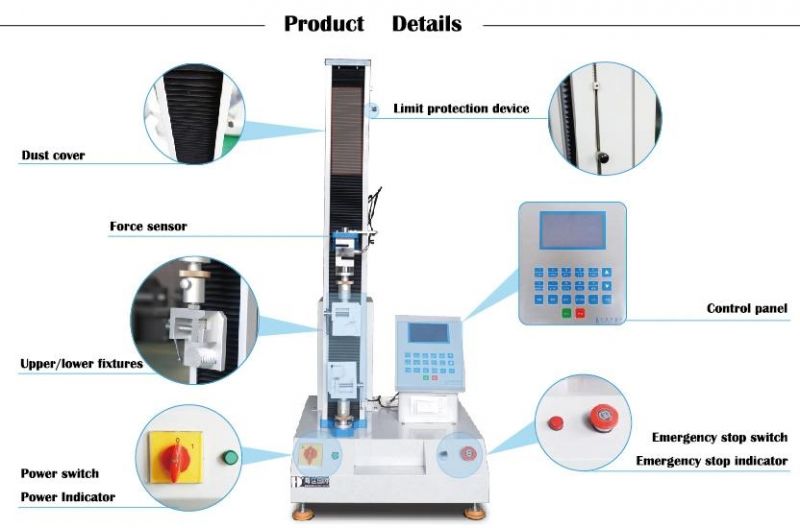

100kg Load Plastic Elongation Testing Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Tensile Testing Machine
  • Maxcapacity：200kg
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-B609B-S
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Test Speed：0.1-500mm,Min(Convertible)
  • Motor：Panasonic Servo Motor
  • Panasonic Servo Motor：0.001mm
  • 0.001mm：Approx.75kg
  • Sensor：Celtron Load Cell
  • Power：One Phase, AC 220V
  • Stroke：1000mm
  • Operate and Display：Computer
  • Accuracy：0.5%
  • Load Resolution：1,250, 000
  • Transport Package：Strong Wooden Case
  • Specification：Atsm
  • Trademark：HaiDa
  • Origin：Guangdong China
  • HS Code：9024109000
  • Production Capacity：60sets,Month

Description

ItemsSpecificationSensorCeltron load cellCapacity5, 10, 20, 25, 50, 100, 200kgUnit SwitchoverG, KG, N, LBDisplay DeviceLCD or PCResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual
 100kg Load Plastic Elongation Testing Machine


Company Information:
100kg Load Plastic Elongation Testing Machine

100kg Load Plastic Elongation Testing Machine
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
