• Model NO.：STSZ-1Q
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Test Specimen：Soil
• Sample Size：Dia.39.1mm
• Loading Strength：10kn
• Product Name：10kn Light-Duty Triaxial Test Equipment
• Max.Stroke：35mm
• Max.Confining Pressure：1MPa
• Max.Back Pressure：0.6MPa
• Pore Water Pressure：0-1MPa
• Axial Displacement Range：0-30mm
• Lift Speed Range：0.003-4.800 mm,Min
• Transport Package：Standard Wooden Packing
• Specification：1.5cbm
• Trademark：YF
• Origin：China
• HS Code：9013809090
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. STSZ-1Q Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Test Specimen Soil Sample Size Dia.39.1mm Loading Strength 10kn Product Name 10kn Light-Duty Triaxial Test Equipment Max.Stroke 35mm Max.Confining Pressure 1MPa Max.Back Pressure 0.6MPa Pore Water Pressure 0-1MPa Axial Displacement Range 0-30mm Lift Speed Range 0.003-4.800 mm/Min Transport Package Standard Wooden Packing Specification 1.5cbm Trademark YF Origin China HS Code 9013809090 Production Capacity 50000 Pieces/Year

Product Description

Product Description:

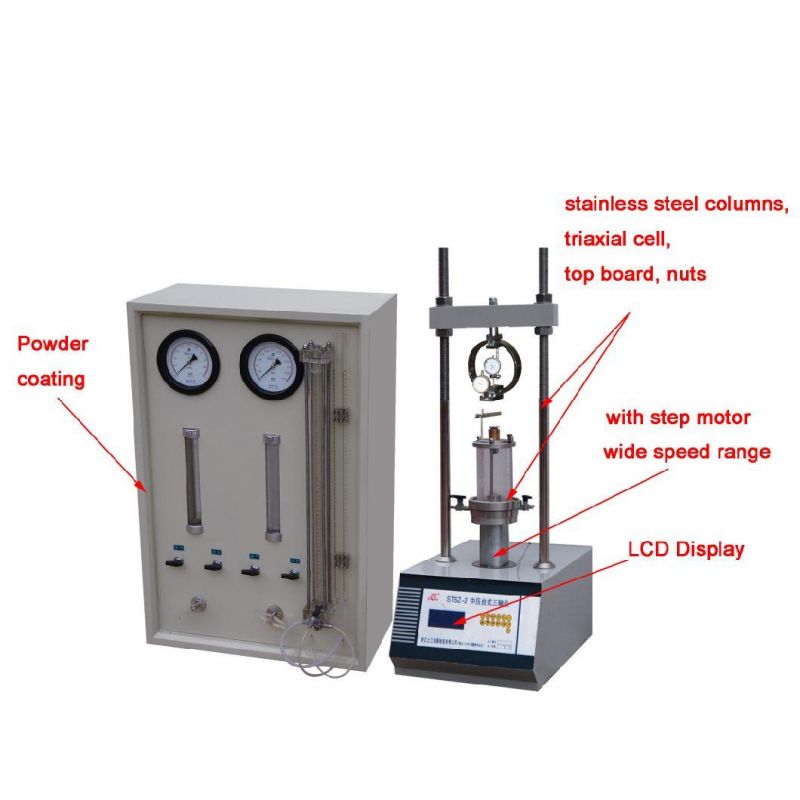

10KN Light-Duty Triaxial Test Equipment



Application: to measure soil shearing strength, thus analysizing soil stability and providing data for construction projects. Perform UU, CU and CD triaxial tests.
Technical parameters:
1. Specimen size: 39.1(Dia)×80mm
2. Max. axial load: 10KN
3. Lift speed range(mm/min): 0.003,0.006,0.008,0.012,0.020,0.030,0.040,0.050,0.060,0.070, 0.080,0.090,0.100,0.200,0.300,0.400,0.500, 0.600,0.700,0.800,0.900,1.000,3.000;
4. Max. stroke: 35mm
5. Max. confining pressure: 1Mpa
6. Max. back pressure: 0.6Mpa
7. Pore water pressure:0-1Mpa
8. Volume change range:0-50ml, min. division 0.1ml
9. Axial displacement range: 0-30mm


Specimen size	dia 39.1x80mm
Max.axial load	10KN
Lift speed range	0.003-4.800mm/min
Max.stroke	35mm
Max.confining pressure	1Mpa
Max.back pressure	0.6Mpa
Pore water pressure	0-1Mpa
Volume change range	0-50ml,min.division 0.1ml
Axial displacement range	0-30mm

Why choose us:

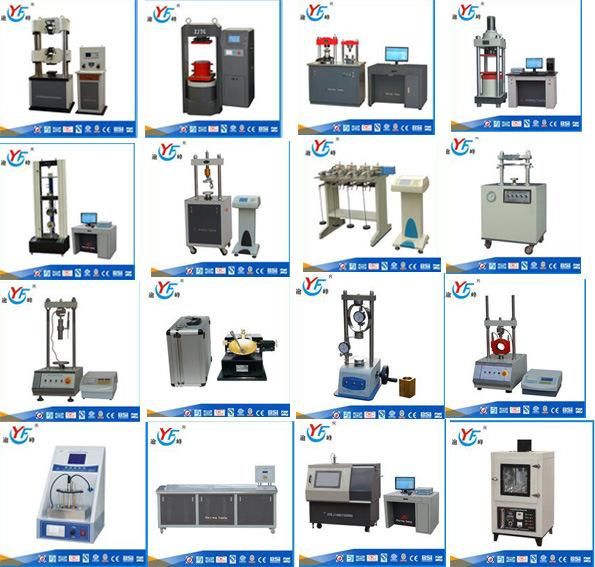

a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.



b. Good quality control



c.Competitive price, save your money.

d. We are factory




FAQ:
1.Are you factory?
    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.

Send us an inquiry and we will contact you soon!
If you want to know more,pls view our official website:cnzjtg.en.made-in-china.com
