• Model NO.：STSZ-2
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Test Specimen：Soil
• Sample Size：Dia.39.1mm.Dia61.8mm
• Loading Strength：30kn
• Certificate：ISO9001; ISO14001
• Max.Stroke：50mm
• Max.Confining Pressure：2.5MPa
• Max.Back Pressure：1MPa
• Pore Water Pressure：0-2MPa
• Volume Change Range：0-50ml
• Min.Division：0.1ml
• Transport Package：Standard Wooden Packing
• Specification：1.7CBM
• Trademark：YF
• Origin：China
• HS Code：9031809090
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. STSZ-2 Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Test Specimen Soil Sample Size Dia.39.1mm.Dia61.8mm Loading Strength 30kn Certificate ISO9001; ISO14001 Max.Stroke 50mm Max.Confining Pressure 2.5MPa Max.Back Pressure 1MPa Pore Water Pressure 0-2MPa Volume Change Range 0-50ml Min.Division 0.1ml Transport Package Standard Wooden Packing Specification 1.7CBM Trademark YF Origin China HS Code 9031809090 Production Capacity 5000pieces/Year

Product Description

     Product Description:

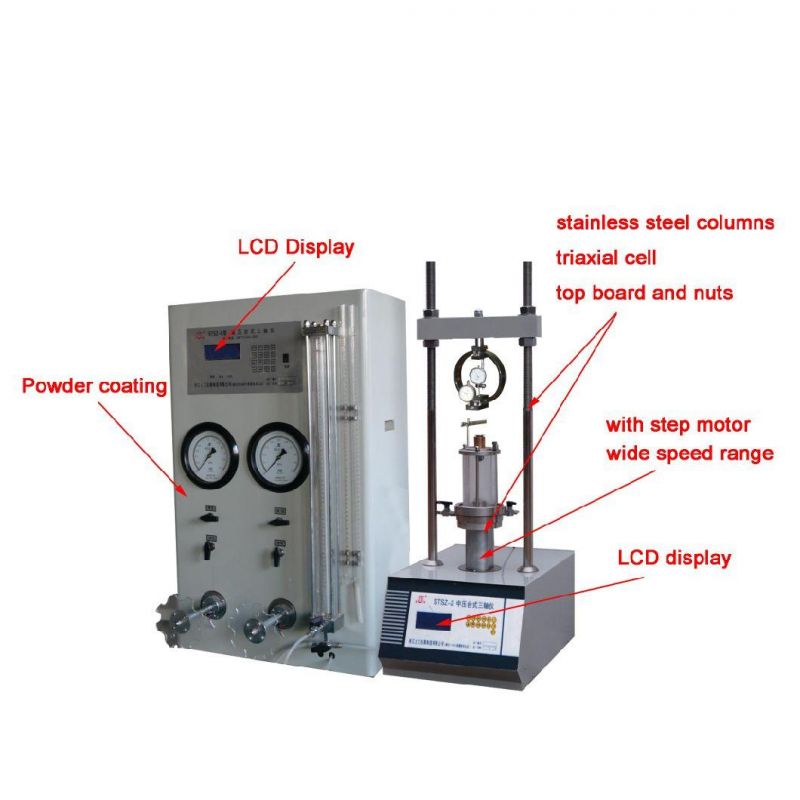

                                30KN midium pressure triaxial testing machine

Application: Applied to measure the strength and deformation characteristics of the soil specimen. Perform unconsolidated undrained shear test(UU), consolidated unstrained shear test(CU) and consolidated drained shear test(CD).
Technical parameters:

Specimen size	dia39.1x80mm,dia61.8x125mm
Axial Load	30KN
Lift speed range(mm/min)	0.003-4.800
Max.Stroke	50mm
Max.confining pressure	2.5Mpa
Max.Back pressure	1Mpa
Pore water pressure	0-2Mpa
Volume change range	0-50ml
Min.division	0.1ml
Axial displacement range	0-30mm
Displacement Rate	0.001-5mm/min

Why choose us:
a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.



b. Good quality control



c.Competitive price, save your money.

d. We are factory



FAQ:
1.Are you factory?
    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.
