• Model NO.：SPT-H
• HS Code：90248000
• Production Capacity：100PCS,Year

Hydraulic station unit

Power: 5.5hp, 4-stroke Honda motor

Flow: 15L/min

Rated pressure: 16MPa

Hammer mass

DPL 10kg, DPM 30kg, DPH 50kg, DPSH &SPT 63.5kg

Number of blows

15-30 blows per minute

Dropping height

500 / 750mm adjustable

Window sampling

With 51mm outer diameter, 1m length

Extraction unit

5ton pulling force

Dimension

800x800x2300mm

Weight

230kgs

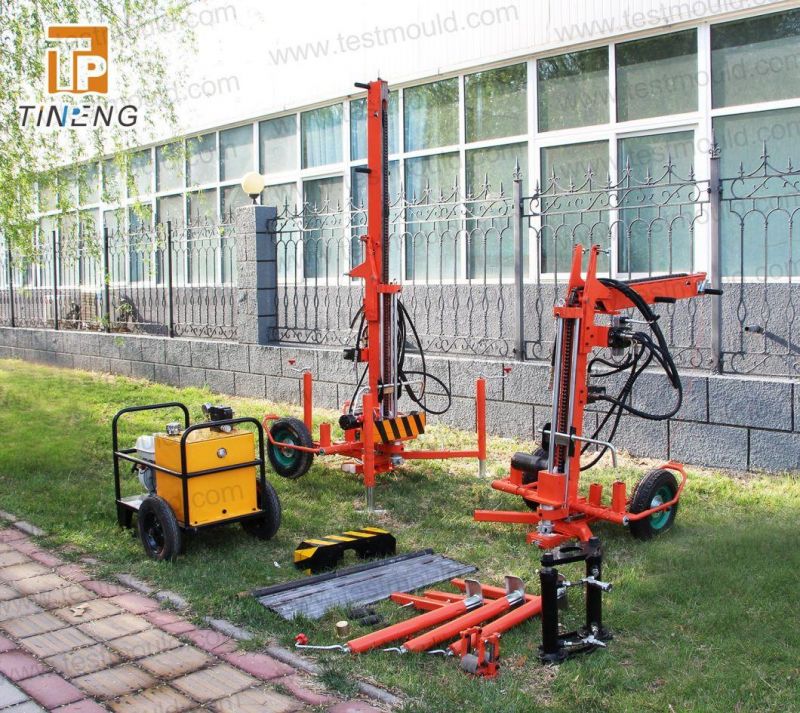

Standard Configuration

No.

Item

Qty.

Remark

1

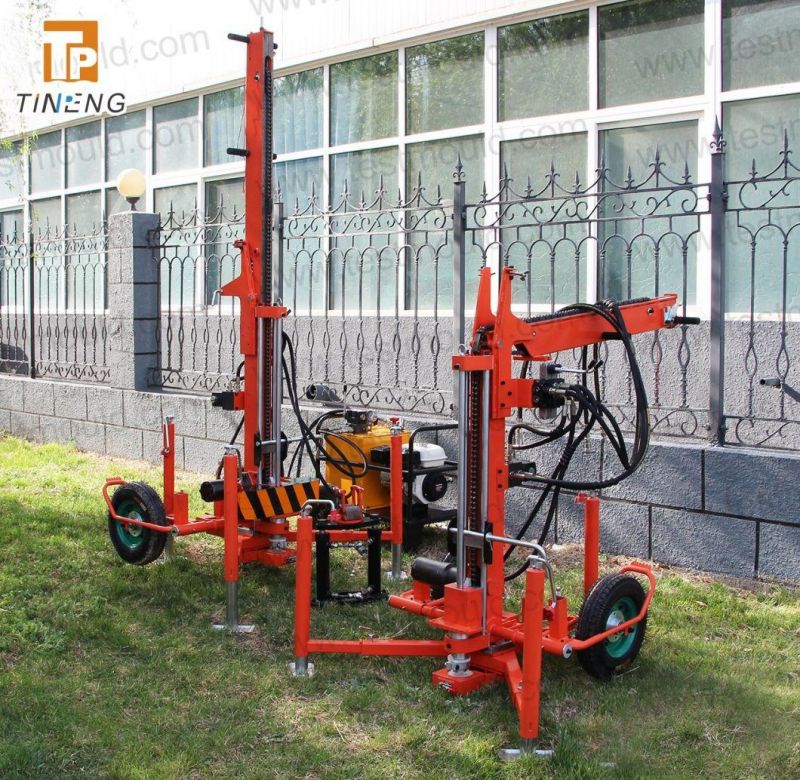

The dynamic probing rig

1 set

2

Hydraulic station unit

1 set

3

Rod

12 pcs

Dia. 22mm x 1m, 2 pcs;

Dia. 32mm x 1m, 10 pcs

4

Brass cap

2 pcs

One is suitable for dia. 22mm rod, the other is for dia. 32mm rod

5

Cone

4 pcs

90° cones, nominal base areas are 10cm2, 15cm2, 16cm2, and 20cm2 respectively.

6

Window sampler

1 pc

Outer dia. 51mm x 1m length

7

Rod clamp

3 pairs

Suitable for dia. 22mm and dia. 32mm rod and dia. 51mm window sampler

8

Rod extraction unit

1 set

Including oil cylinder and clamp

9

Tools

1 set
