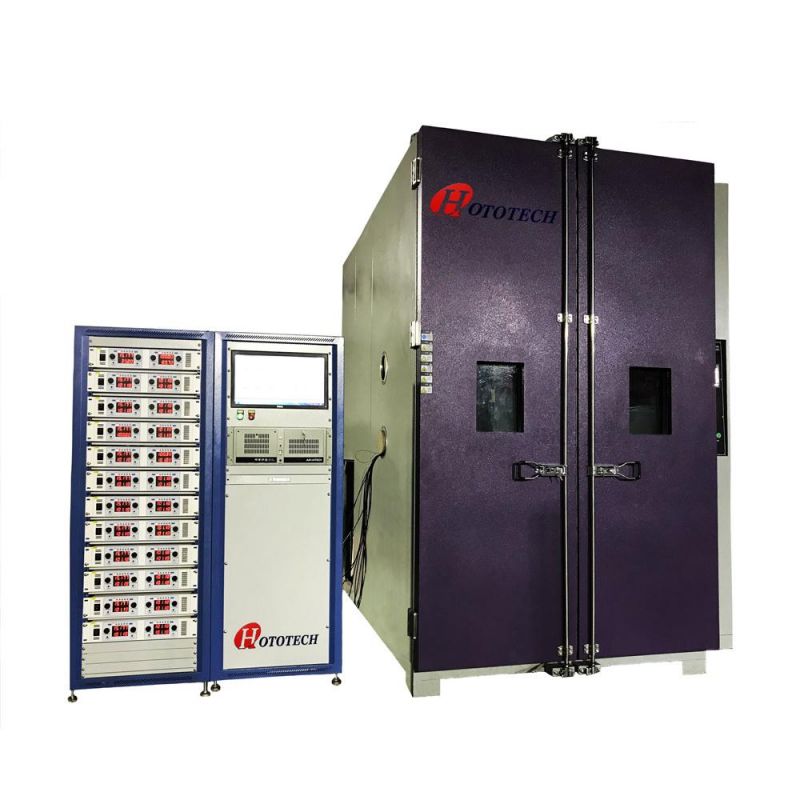

Customized Walk-in Type High and Low Temperature Environment Testing Chamber / Testing Machine for PV Module

Dongguan Hong Tu Instrument Co., Ltd.
  • Certification：TUV, ISO
  • Warranty：1 Year
  • Product Name：High Low Temperature Environment Testing machine
  • Testing Standard：IEC 61215-2:2016
  • Electricity：380V 60Hz
  • Testing Samples：PV Module

Base Info

  • Model NO.：HTPV -17-1
  • Testing Samples Quantity：12 PCS
  • Control System：Automatic Calculus
  • Display Panel：Touch Screen
  • Inner Material：SUS 304 High Temperature Resistant Stainless Steel
  • Outer Material：Antirust Steel Plate+Baking Finish
  • Humidity Range：30~98% Rh
  • Transport Package：Export Wooden Case
  • Specification：Temperature range -40~85 Centigrade
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：8479899996
  • Production Capacity：100 Sets Per Month

Description

Temperature range-40~85ºCTemperatuare fluctuation≤±1ºCTemperature deviation≤±1ºCTemperataure uniformity≤±2ºCRise and down speed rate Satisfy IEC 61215 standard requirementHumidity range30~98%RHRelative humidity deviation±3%FS, deviation 85±2%RH, 90±2%RHHumidity fluctuation±2%RHTesting sample quantity 12 PCS Display panel Touch screenCurve dispaly ways Real-time display Inner materialSUS #304 high temperature and high tension stainless steel sheetOuter materialAntirust steel plate +baking finish Thermal insulation materialhigh density hard PU foam and glass insulation cotton Refrigerant Adopt the newest HFC environmental protection refrigerant Refrigerant valveautomatic switch regulating refrigerant valve Electrictiy 380V 60HZ

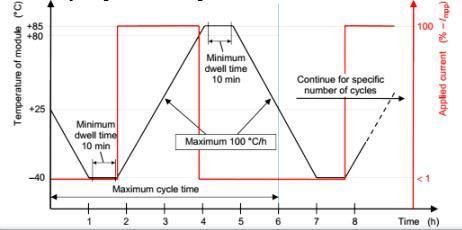

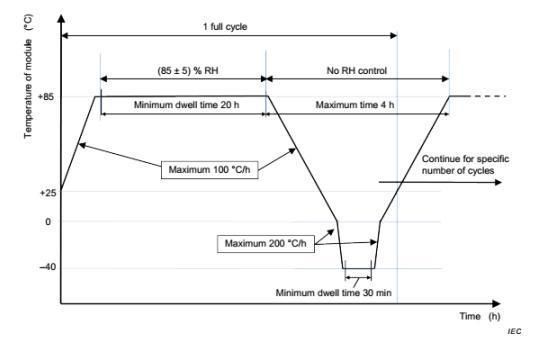

The images show

Customized Walk-in Type High and Low Temperature Environment Testing Chamber / Testing Machine for PV Module

Customized Walk-in Type High and Low Temperature Environment Testing Chamber / Testing Machine for PV Module

Customized Walk-in Type High and Low Temperature Environment Testing Chamber / Testing Machine for PV Module


Customers with us

Customized Walk-in Type High and Low Temperature Environment Testing Chamber / Testing Machine for PV Module


ShangHai Exhibition show

Customized Walk-in Type High and Low Temperature Environment Testing Chamber / Testing Machine for PV Module


Cooperation lists

Customized Walk-in Type High and Low Temperature Environment Testing Chamber / Testing Machine for PV Module
