• Model NO.：33-T0063,1
• HS Code：90248000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. 33-T0063/1 HS Code 90248000 Production Capacity 50 Sets/Month

Product Description

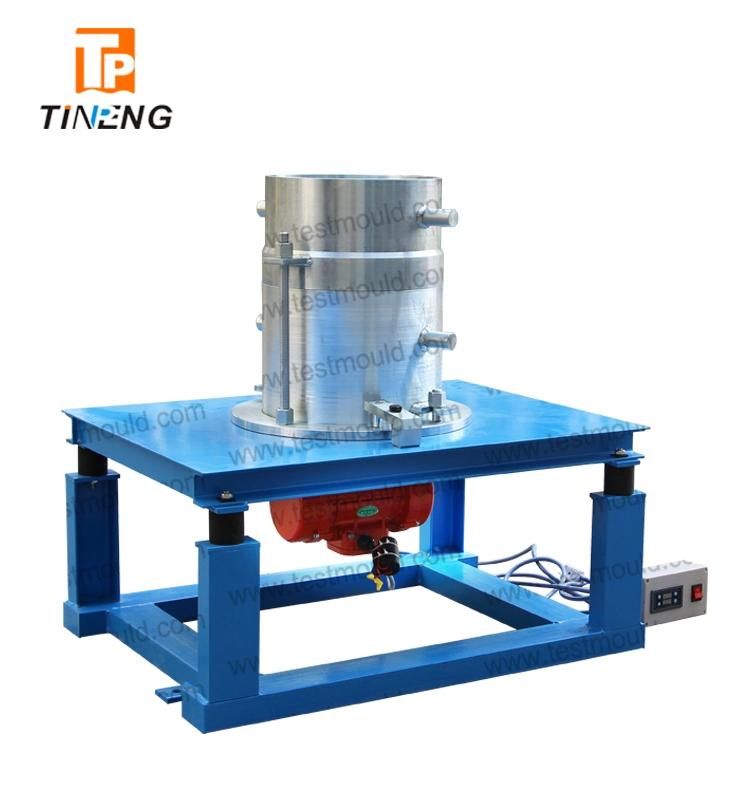

Relative Density Apparatus for Granular Soils

    Apparatus determines the relative density of cohesionless, free-draining soils and provides well-defined results on soils that do not respond well to conventional moisture-density impact compaction testing. Soils for which this method is appropriate may contain up to 12 percent of soil particles passing a No. 200 (75µm) sieve, depending on the distribution of particle sizes, which causes them to have free-draining characteristics. Relative density of cohesionless soils uses vibratory compaction to obtain maximum density and pouring to obtain minimum density.


    Cylindrical Mold Sets for 2.83L and 14.2L capacity have attached carrying handles and guide brackets for the Gauge Set. They come complete with detachable guide sleeve with clamp assembly, surcharge base plate with lift ring, and surcharge weight with lift ring. Mold included with Set is 152mm ID x 305 IH; surcharge weight plus base plate has 25.5 ±0.2kg total weight. Larger mold with Set is 280mm ID x 250 IH with 86.2 ±0.9kg total weight of base plate with surcharge weight.



Packing list:

Controller: 1pcs

Vibrating table: 1pcs

Cylinder mould: dia 280mm

Guide sleeve: dia. 280mm

Surcharge base plate:dia.278mm

Surcharge weight: for dia. 280mm cylinder mould
