Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)

Shanghai Shinegil Trading Co., Ltd.
  • Max Diameter of Workpiece：2100mm
  • Mass Scope of Workpiece：<900kg
  • Type：Eft, Burst Immunity Tester
  • Maxcapacity：Non
  • Accuracy Grade：Non
  • Load Way：Electronic Load

Base Info

  • Model NO.：EFT T4
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Na
  • Product Name：Eft, Burst Generator
  • Standard：IEC, En 61000-4-4
  • Output Voltage：0.1~ 5kv
  • Spike Frequency：1kHz~ 1.2MHz
  • Coupling/ Decoupling Network：Built-in, 3phase 5wire, 16A
  • Power Supply：220V 50Hz (Custom)
  • Custom Service：Available
  • Warranty：1 Year
  • Certificate：ISO9001
  • Transport Package：Export Wooden Case
  • Specification：weight: 45kg
  • Origin：Shanghai
  • Production Capacity：3000 Sets, Year

Description

ModelEFT T4Output Voltage0.1~ ±5KVFrequency1KHz~1.2MHz ±10% , continuous adjustablePulse PolarityPositive/ negative/ alternatingRunning Time1~9999s, continuous adjustableInternal Resistance50Ω ±10%Pulse Front Edge5ns ±30%Pulse Width50ns ±30% (50Ω load),
35ns~150ns (1kΩ load)Pulse Number1~255, continuous adjustablePhase Angle0~359°synchronous, asynchronous, or automaticBurst Period0.15~99.99s, continuous adjustableCoupling/ Decoupling networkBuilt-in, three-phase five-wire, 16A
(customer specific on demand)Power SupplyAC 220V ±10% 50/ 60HzAmbient Temperature15ºC~35ºC
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)

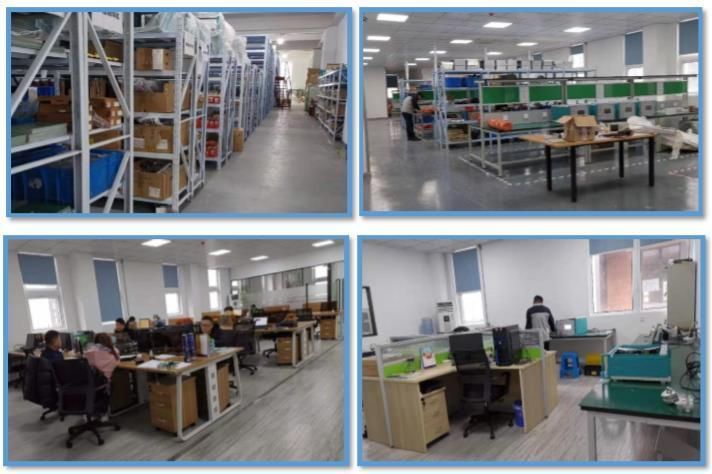

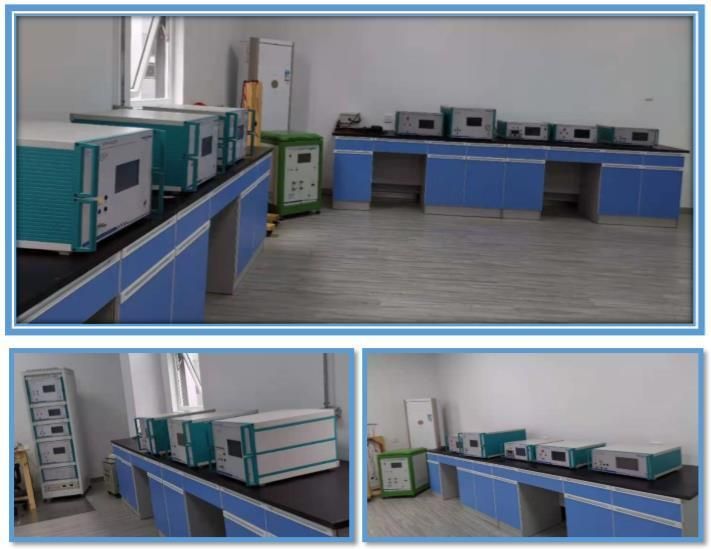

Manufactory and Office
Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)
Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)
Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)

Qualification and Certificate
Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)

Our Client
Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)

Packing
Conducted Transients Eft/ Burst Generator with 3phase Coupling/Decoupling Networks up to 5kv (EFT T4)

Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.

If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com

We look forward to working with you sincerely!
