• Model NO.：GDYJ-502A
• Resolution：0.1kv
• Temperature Measurement：Yes
• Temperature Measurement Range：0°c to 70°c, or Better
• Temperature Resolution：1°c, or Better
• Data Storage：100 Groups
• Weight：38kg
• Size：550 mm*500mm*580mm
• Power Supply：AC220V, 50Hz
• Working Environment：Room Temperature to 45°c, Humidity<85%
• Transport Package：Standard Wooden Case
• Trademark：GOLD
• Origin：China
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. GDYJ-502A Resolution 0.1kv Temperature Measurement Yes Temperature Measurement Range 0°c to 70°c, or Better Temperature Resolution 1°c, or Better Data Storage 100 Groups Weight 38kg Size 550 mm*500mm*580mm Power Supply AC220V, 50Hz Working Environment Room Temperature to 45°c, Humidity<85% Transport Package Standard Wooden Case Trademark GOLD Origin China Production Capacity 500 Sets/Month

Product Description

Description
Electronic Power and 0~80KV output voltage Transformer Oil Tester

Introduction:
      It is used to determine the breakdown voltage at power frequency.In power system, railway system and large petrochemical factories and mines, enterprises have a lot of electrical equipment, its internal insulation are mostly oil-filled insulation type, dielectric strength of the insulating of the insulating oil is a routine test shall be measured.
      It is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
      The oil test vessel with temperature measurement unit, so it can detect oil temperature.
      With 8 Kinds of test mode as optional:IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
      It has large LCD display, all the selection can be done by touch panel with color LCD;
      It also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
      It is multi-functional, stable, and easy for operation.

Specifications:

No.	Parameters	Specifications
1	Standards	IEC60156/IS6792/BS5874/VDE0370-5, ASTMD877, ASTMD1816
2	Output voltage	AC 0V~80KV
3	Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
4	Max.Test times	9
5	Stir time	0~999s
6	Wait time	0~999s
7	Measurement accuracy	±(1% of full scale + 2 digits)
8	Resolution	0.1KV
9	Temperature measurement	Yes
10	Temperature measurement range	0°C to 70°C, or better
11	Temperature resolution	1°C, or better
12	Data storage	100 groups
13	Weight	38kg
14	Size	550 mm*500mm*580mm
15	Power supply	AC220V, 50Hz
16	Working environment	Room temperature to 45°C, humidity<85%
17	Display	7 inch colorful LCD with touch pad
18	Printer	Yes
19	Oil Vessle	1

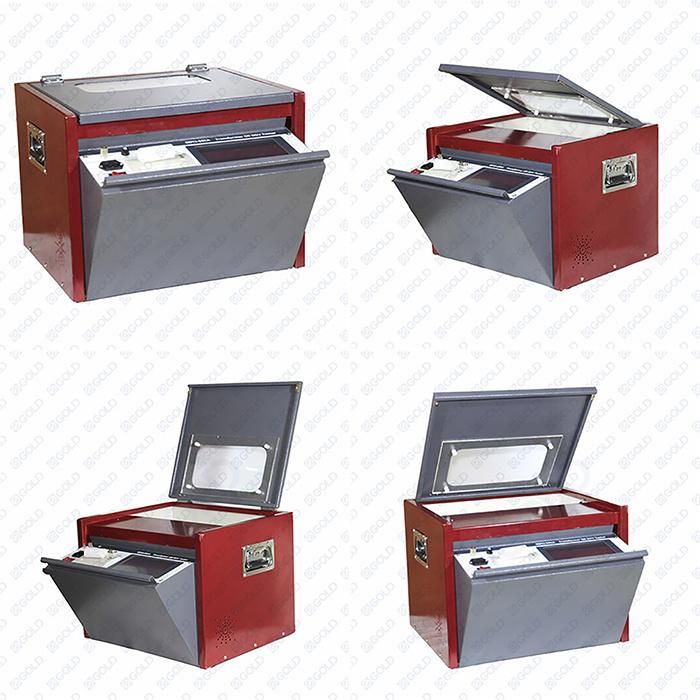

Product Show:



Certificate:


Company Information
CHONGQING GOLD MECHANICAL & ELECTRICAL EQUIPMENT CO., LTD
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd.  mainly design and manufacture the oil purifier and electrical testing equipment for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!

Our Advantages

• Quality Assurance
  We have more than 20 years' experience in designing and manufacturing these equipment, so our equipment is stable, reliable, with high quality and good reputation.
  All the products have been run well and adjusted to good condition before delivery, operator only need to follow the user manual to operate it.
• Technical Support
   Our technical team supports our customers at all time with our long experience, expert advice and the unlimited spirit to always providing the best customer service.
  You can arrange your engineer to our company to get free training. If necessary, we can also arrange our engineer to your company for training and commissioning at your cost.
• Service
  Provide professional advice and reasonable offers within 2 hours at working time, and within 12 hours at non-working time.
  One year warranty for all the products, life time technical consulting, life time provision of spare parts, free software upgrades.

Our Services
Pre-sale Service:

• Inquiry will be replied within 24 hours.
• Welcome to visit our factory.
• Technical datas and operation manual sent for evaluation.

After-sale Service:

• Training how to instal the machine, training how to use the machine at our factory;
• Engineers available to service machinery overseas at customers' cost.

FAQ

• What's the delivery lead time?

"For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."

• What's the payment term?

"For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."

• What's the warranty period?

"Warranty period is 1 year."
