CE Battery Testing High Low Temp 3-Zone Thermal Shock Test Chamber
Guangdong Komeg Industrial Co., Ltd.- Power Supply：380V
- Certification：CE, TUV, ISO
- Warranty：2 Years
- Test Weight：10kg
- Interrior Material：500*450*450mm
- Exterrior Material：1540*1840*1700mm
Base Info

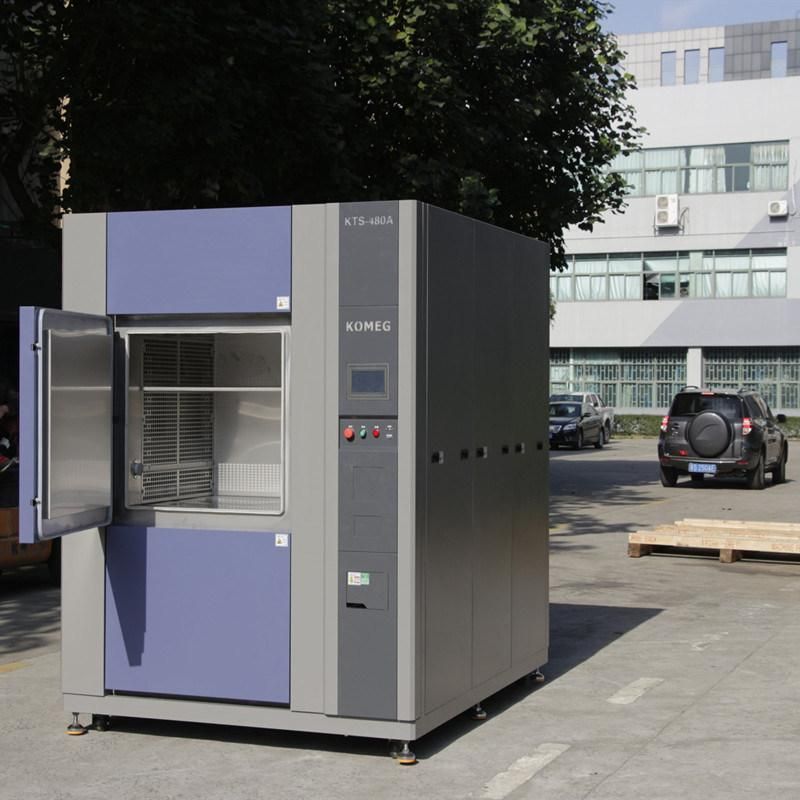

- Model NO.：KTS-480A
- Conversion Time：5 Mins
- Chamber Quantity：3 Zones
- Testing Samples：Can Be with Load
- Transport Package：Strong Plywood Case, Meet International Standard
- Specification：Standard and customized, ISO9001, SGS, CE, TUV, UL
- Trademark：KOMEG
- Origin：Dongguan, China
- HS Code：90321000
- Production Capacity：1000 Sets Per Yesr
Description
Model
KTS-A Series |
72A
100A
150A
200A
252A
300A
480A
Inside size(mm)
W
450
500
600
670
700
800
800
H
400
450
500
600
600
600
800
D
400
450
500
500
600
650
750
Outside size(mm)
W
1490
1540
1640
1720
1750
1850
1850
H
1790
1840
1890
2000
2000
2000
2200
D
1600
1700
1830
1850
1930
1980
2500
Test weight
5
10
12
15
18
20
20
Low Temp Chamber
-55ºC~-10ºC, Pre cooling time: ≤ 60 min from +20ºCto-55ºC
Test Chamber
-40ºC~+150ºC
High Temp Chamber
+60ºC~+200ºC ,Within 20 min, Pre-heating time
Transition time
≤15S
Recovery time
High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample
≤ 5 min
Ambient Temp.
+5ºC~+35ºC
Power
AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
4. Below are differences between 3-zone and 2-zone thermal shock chamber:
3-zone thermal shock chamber:
three chamber in total: test space, high temp. chamber and low temp. chamber;
Advantage: slight limitation for test sample's weight, the test sample keep still, this can reduce the impact to samples by moving it, can be used for on-load testing.
Compared with 2-zone type, relatively low failure rate, low cost.
Disadvantage: long conversion time
2-zone thermal shock chamber:
only two chambers: high temp. Chamber and low temp. chamber
Advantage: short conversion time, smaller space needed
Disadvantage: test sample moving. test samples' size is limited by the basket size
Photos show
