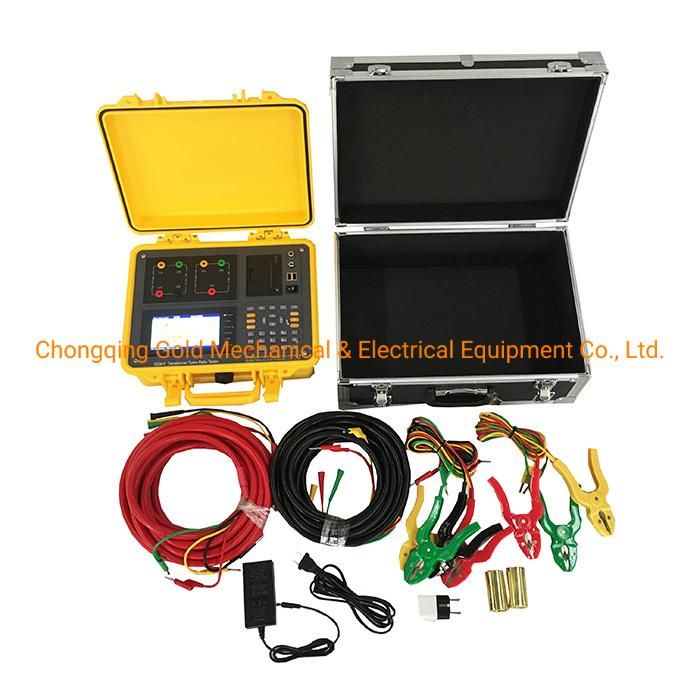

Battery Recharge Automatic Transformer Turns Ratio Tester Portable TTR Meter for Testing Z Type Transformer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Function：Turns Ratio,Phase Angle,Error Test of Transformer
  • Test Sample：All Kinds of Transformers
  • Ratio Measurement Range：0.8~10000
  • Fast Measurement Speed：3 Phase Test Can Be Completed Within 60 Second
  • Voltage Measurement Accuracy on Hv Side：0.05%
  • Voltage Measurement Accuracy on LV Side：0.1%

Base Info

  • Model NO.：GDB-P
  • Power Supply：220V±10%,50,60Hz or Battery Recharge

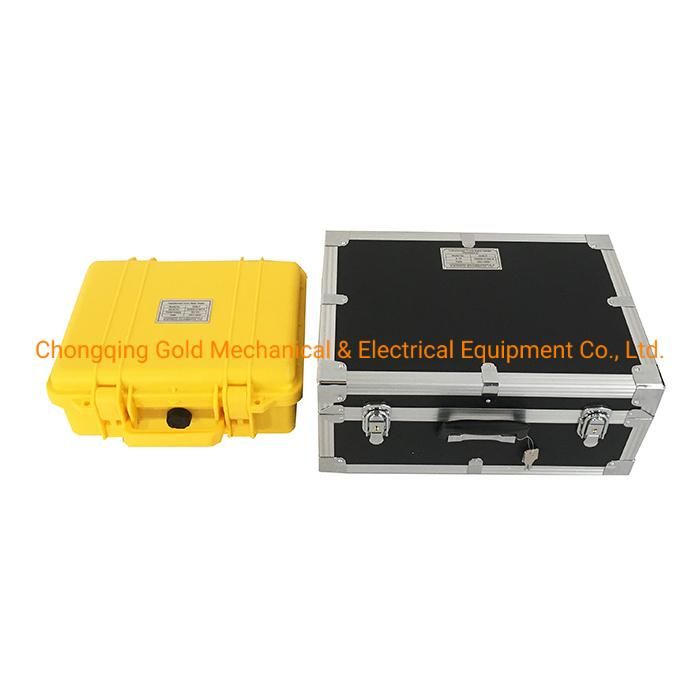

  • Transport Package：Plywood Case
  • Specification：8kg
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9030849000
  • Production Capacity：500 Pieces,Month

Description

Measurement accuracyVoltage measurement accuracy on HV side: 0.05% Voltage measurement accuracy on LV side: 0.1%Phase angle measurement accuracy: 0.1°TTR measurement accuracy:0.1% (0.8-3000)
0.2% (3000-10000)

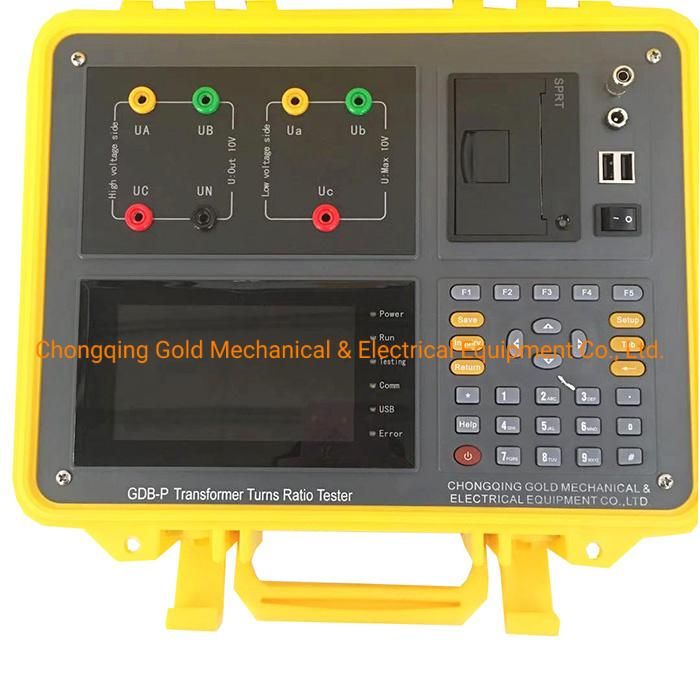

4. Panel
