Jj-5 Cement Mortar Mixer (New Standard)
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：80kgs
- Type：Cement Mortar Mixer
- Maxcapacity：No
- Accuracy Grade：1
- Load Way：No
Base Info
- Model NO.：JJ-5
- Loading Method：No
- Display：Digital
- Control：Digital Control
- Weight：80kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Application：to Test Strength of Cement Mortar
- Rotation：Low Speed 140r,M High Speed 285r,M
- Revolution：Low Speed 62r,M; High Speed 125 R,M;
- Voltage：AC380V
- Power of Motor：0.370,0.55kw 8,4p
- Transport Package：Wooden Case
- Specification：74x48x90cm
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. JJ-5 Loading Method No Display Digital Control Digital Control Weight 80kgs Power Source AC220V Oil Cylinder Position No Application to Test Strength of Cement Mortar Rotation Low Speed 140r/M High Speed 285r/M Revolution Low Speed 62r/M; High Speed 125 R/M; Voltage AC380V Power of Motor 0.370/0.55kw 8/4p Transport Package Wooden Case Specification 74x48x90cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

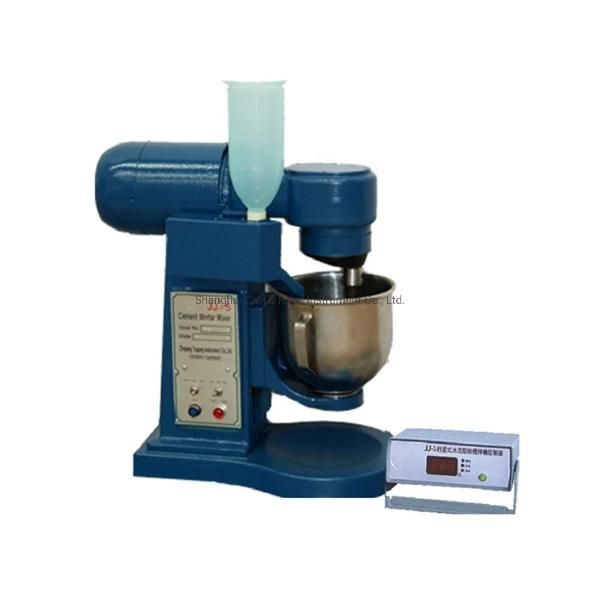

JJ-5 Cement Mortar Mixer(New Standard)
Application: It is an equipment to test strength of cement mortar and complies with the test method ISO679:1989.
Mix cement and water to prepare homogeneous paste and specimen for the normalconsistency and setting time tests.
| Rotation | low speed 140±5 r/m; high speed 285±10 r/m; |
| Revolution | low speed 62±5 r/m; high speed 125±10 r/m; |
| Mixing bowl capacity | 5L |
| Voltage | AC380V |
| Power of motor | 0.370/0.55KW 8/4P |
| Size | 472*280*466mm |
| Net weight | ≈45kg |
